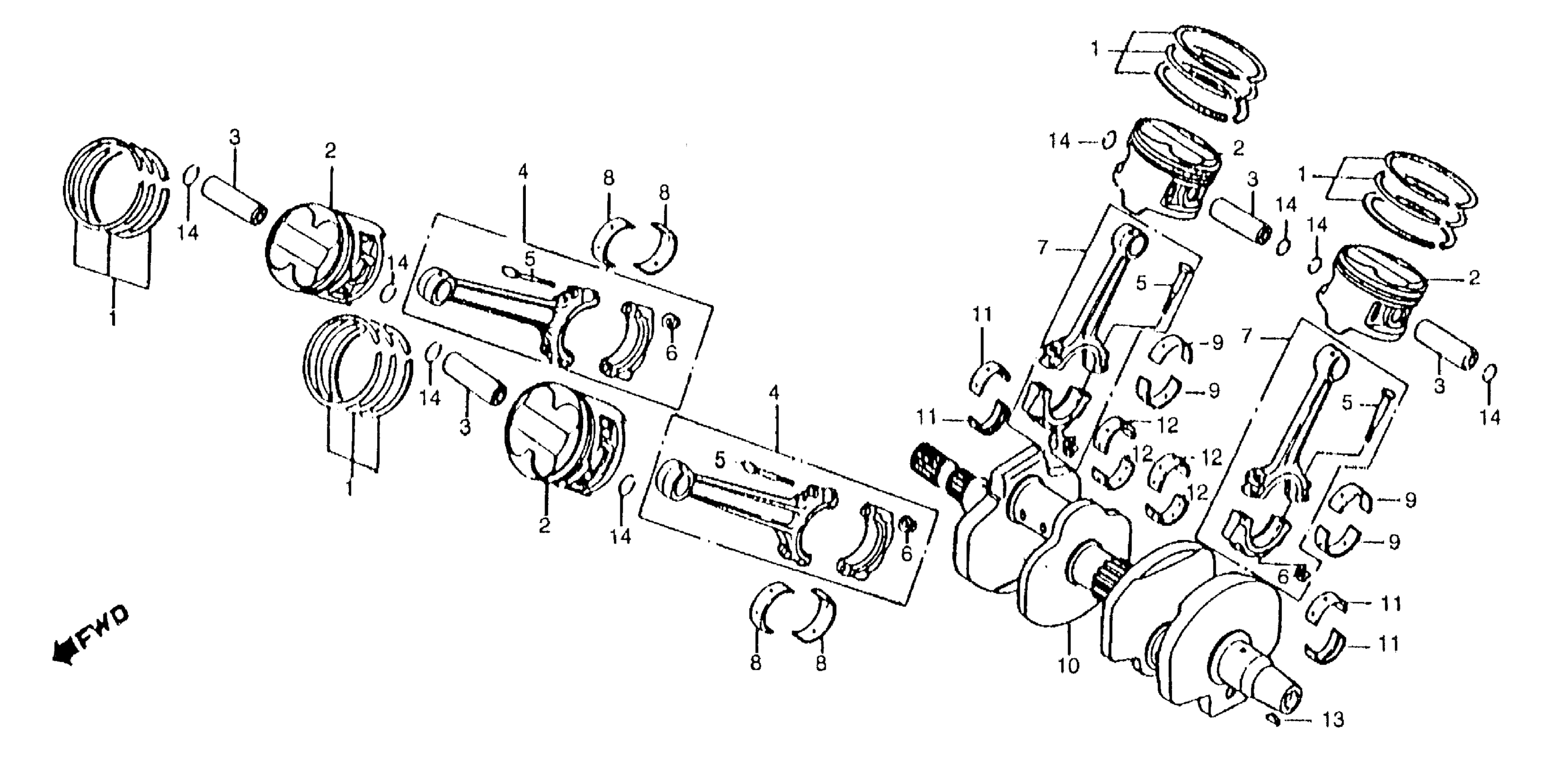

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON This part replaces 13011-ML7-305.

13011-MT4-315

$56.74

1

RING SET, PISTON

13011-MT4-315

$56.74

1

RING SET, PISTON (OVER SIZE) (0.25) This part replaces 13021-ML7-305.

13021-MT4-315

$49.98

1

RING SET, PISTON (OVER SIZE) (0.25) This part replaces 13021-MT4-305.

13021-MT4-315

$49.98

1

RING SET, PISTON (OS 0.25)

13021-MT4-315

$49.98

1

RING SET, PISTON (OVER SIZE) (0.50) This part replaces 13031-ML7-305.

13031-MT4-315

$44.61

1

RING SET, PISTON (OVER SIZE) (0.50) This part replaces 13031-MT4-305.

13031-MT4-315

$44.61

1

RING SET, PISTON (OS 0.50)

13031-MT4-315

$44.61

2

PISTON (STD) This part replaces 13101-ML7-010.

13101-ML7-690

Unavailable

2

PISTON (STD)

13101-ML7-690

Unavailable

2

PISTON (OS 0.25)

13102-ML7-315

Unavailable

2

PISTON (OS) (0.50) This part replaces 13103-ML7-315.

13103-ML7-306

Unavailable

3

PIN, PISTON This part replaces 13111-ML7-000.

13111-MM4-000

Unavailable

3

PIN, PISTON

13111-MM4-000

Unavailable

4

ROD ASSY., FR. CONNECTING | Use up to Engine SN 2006041 This part replaces 13210-ML7-000.

13210-ML7-010

Unavailable

4

ROD ASSY., FR. CONNECTING | Use up to Engine SN 2006041

13210-ML7-010

Unavailable

4

ROD ASSY., FR. CONNECTING

13210-ML7-010

Unavailable

5

BOLT, CONNECTING ROD | Use up to Engine SN 2006041 This part replaces 13213-ML7-000.

13213-ML7-020

$8.00

5

BOLT, CONNECTING ROD | Use up to Engine SN 2006041 This part replaces 13213-ML7-010.

13213-ML7-020

$8.00

5

BOLT, CONNECTING ROD This part replaces 13213-ML7-010.

13213-ML7-020

$8.00

6

NUT, CONNECTING ROD

13215-ML7-000

$3.89

7

ROD ASSY., RR. CONNECTING | Use up to Engine SN 2006041 This part replaces 13220-ML7-000.

13220-ML7-020

Unavailable

7

ROD ASSY., RR. CONNECTING | Use up to Engine SN 2006041 This part replaces 13220-ML7-010.

13220-ML7-020

Unavailable

7

ROD ASSY., RR. CONNECTING This part replaces 13220-ML7-010.

13220-ML7-020

Unavailable

7

ROD ASSY., RR. CONNECTING | Use up to Engine SN 2006041

13220-ML7-020

Unavailable

7

ROD ASSY., RR. CONNECTING

13220-ML7-020

Unavailable

8

BEARING A, CONNECTING ROD (BLUE) This part replaces 13224-ML7-003.

13224-ML7-405

Unavailable

8

BEARING A, CONNECTING ROD (BLUE)

13224-ML7-405

Unavailable

8

BEARING B, CONNECTING ROD (BLACK) This part replaces 13225-ML7-003.

13225-ML7-405

Unavailable

8

BEARING B, CONNECTING ROD (BLACK)

13225-ML7-405

Unavailable

8

BEARING C, CONNECTING ROD (BROWN) This part replaces 13226-ML7-003.

13226-ML7-405

Unavailable

8

BEARING C, CONNECTING ROD (BROWN)

13226-ML7-405

Unavailable

8

BEARING D, CONN ROD This part replaces 13227-ML7-003.

13227-ML7-405

Unavailable

8

BEARING E, CONNECTING ROD (YELLOW) This part replaces 13228-ML7-003.

13228-ML7-405

Unavailable

8

BEARING E, CONNECTING ROD (YELLOW)

13228-ML7-405

Unavailable

9

BEARING A, CONNECTING ROD (BLUE)

13224-ML7-405

Unavailable

9

BEARING B, CONNECTING ROD (BLACK)

13225-ML7-405

Unavailable

9

BEARING C, CONNECTING ROD (BROWN)

13226-ML7-405

Unavailable

9

BEARING E, CONNECTING ROD (YELLOW)

13228-ML7-405

Unavailable

9

BEARING A, CONNECTING ROD (BLUE) This part replaces 13234-ML7-003.

13224-ML7-405

Unavailable

9

BEARING B, CONNECTING ROD (BLACK) This part replaces 13235-ML7-003.

13225-ML7-405

Unavailable

9

BEARING C, CONNECTING ROD (BROWN) This part replaces 13236-ML7-003.

13226-ML7-405

Unavailable

9

BEARING D, CONN ROD This part replaces 13237-ML7-003.

13227-ML7-405

Unavailable

9

BEARING E, CONNECTING ROD (YELLOW) This part replaces 13238-ML7-003.

13228-ML7-405

Unavailable

10

CRANKSHAFT | Use up to Engine SN 2006041

13300-ML7-305

Unavailable

10

CRANKSHAFT | Use up to Engine SN 2006041 This part replaces 13310-ML7-000.

13300-ML7-305

Unavailable

10

CRANKSHAFT | Use from Engine SN 2006042

13310-ML7-010

Unavailable

11

BEARING A, CRANKSHAFT SIDE (BLUE) This part replaces 13313-ML7-003.

13313-ML7-691

$14.62

11

BEARING A, CRANKSHAFT SIDE (BLUE)

13313-ML7-691

$14.62

11

BEARING B, CRANKSHAFT SIDE (BLACK) This part replaces 13314-ML7-003.

13314-ML7-691

Unavailable

11

BEARING B, CRANKSHAFT SIDE (BLACK) This part replaces 13314-ML7-690.

13314-ML7-691

Unavailable

11

BEARING B, CRANKSHAFT SIDE (BLACK)

13314-ML7-691

Unavailable

11

BEARING C, CRANKSHAFT SIDE (BROWN) This part replaces 13315-ML7-003.

13315-ML7-691

$15.46

11

BEARING C, CRANKSHAFT SIDE (BROWN)

13315-ML7-691

$15.46

11

BEARING D, CRANKSHAFT SIDE (GREEN) This part replaces 13316-ML7-003.

13316-ML7-691

$15.46

11

BEARING D, CRANKSHAFT SIDE (GREEN)

13316-ML7-691

$15.46

11

BEARING E, CRANKSHAFT SIDE (YELLOW) This part replaces 13317-ML7-003.

13317-ML7-690

$15.46

11

BEARING E, CRANKSHAFT SIDE (YELLOW)

13317-ML7-690

$15.46

11

BEARING E, CRANKSHAFT SIDE (YELLOW)

13317-ML7-691

$15.46

12

BEARING A, CRANKSHAFT CENTER (BLUE) This part replaces 13323-ML7-003.

13323-MR7-013

$15.46

12

BEARING A, CRANKSHAFT CENTER (BLUE) This part replaces 13323-ML7-690.

13323-MR7-013

$15.46

12

BEARING A, CRANKSHAFT CENTER (BLUE)

13323-MR7-013

$15.46

12

BEARING B, CRANKSHAFT CENTER (BLACK) This part replaces 13324-ML7-003.

13324-MR7-013

Unavailable

12

BEARING C, CRANKSHAFT CENTER (BROWN) This part replaces 13325-ML7-003.

13325-MR7-013

$15.46

12

BEARING C, CRANKSHAFT CENTER (BROWN) This part replaces 13325-ML7-690.

13325-MR7-013

$15.46

12

BEARING C, CRANKSHAFT CENTER (BROWN)

13325-MR7-013

$15.46

12

BEARING D, CRANKSHAFT CENTER (GREEN) This part replaces 13326-ML7-003.

13326-MR7-013

Unavailable

12

BEARING D, CRANKSHAFT CENTER (GREEN) This part replaces 13326-ML7-690.

13326-MR7-013

Unavailable

12

BEARING E, CRANKSHAFT CENTER (YELLOW) This part replaces 13327-ML7-003.

13327-MR7-013

$15.46

12

BEARING E, CRANKSHAFT CENTER (YELLOW) This part replaces 13327-ML7-690.

13327-MR7-013

$15.46

12

BEARING E, CRANKSHAFT CENTER (YELLOW)

13327-MR7-013

$15.46

13

KEY, WOODRUFF

90741-413-000

$2.56

14

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
