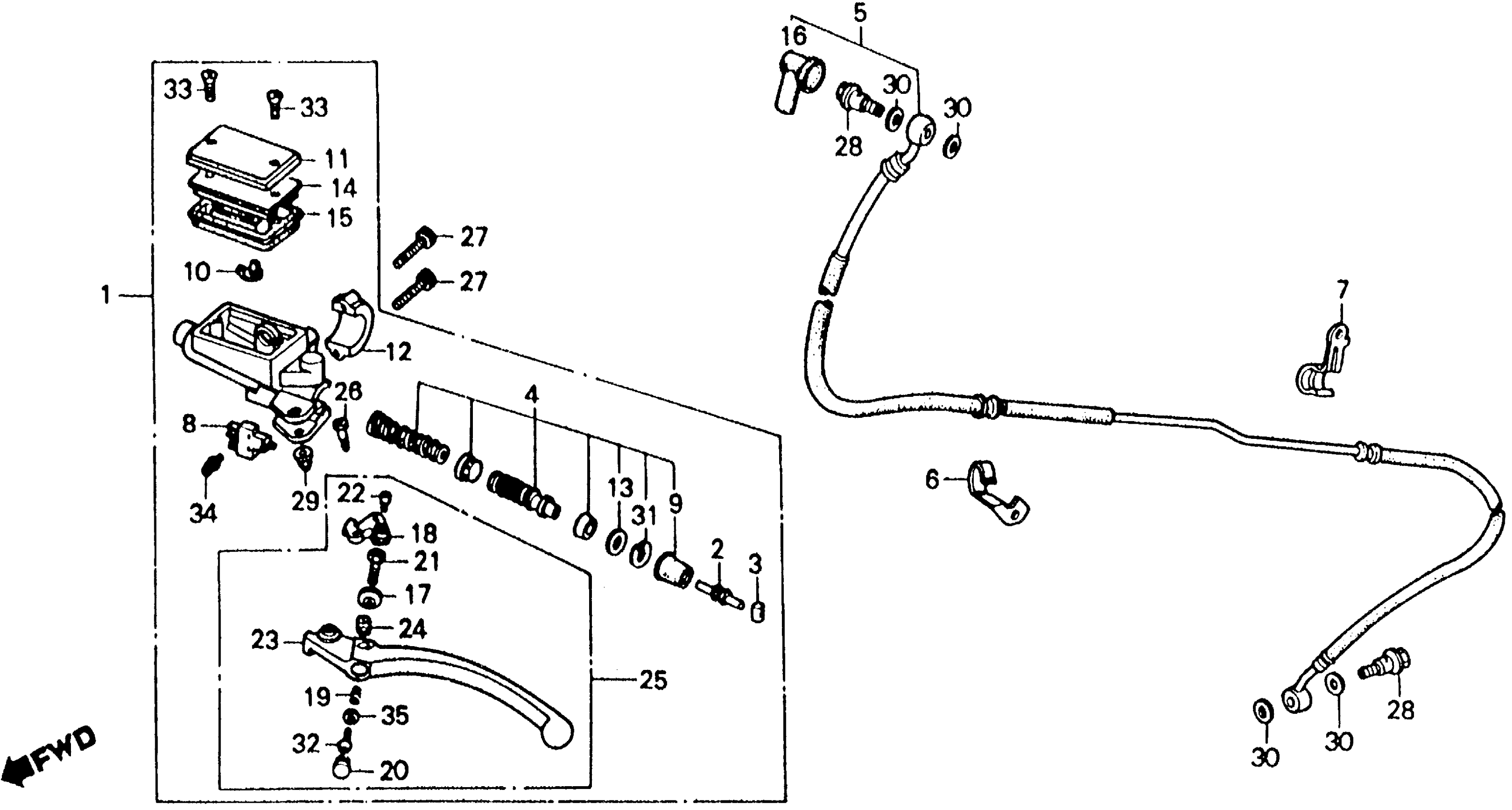

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 CLUTCH MASTER CYLINDER Diagram

MASTER CYLINDER ASSY., CLUTCH (NISSIN) (NOT AVAILABLE)

22880-ML7-601

Unavailable

ROD, PUSH

22884-MB0-006

$20.66

BUSH

22885-MB0-006

$12.95

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$74.32

PIPE, CLUTCH (NOT AVAILABLE)

22900-ML7-000

Unavailable

CLAMP A, CLUTCH PIPE

22902-ML7-000

Unavailable

CLAMP B, CLUTCH PIPE

22903-ML7-000

Unavailable

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP

45513-ML7-601

Unavailable

HOLDER, MASTER CYLINDER

45517-KR3-901

$20.92

PLATE, STOPPER

45518-MB0-006

$1.84

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

DIAPHRAGM

45520-MA5-672

$18.13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

ADJUSTER, R. CONTROL LEVER

53172-MJ4-006

Unavailable

KNOCKER, CLUTCH

53172-MJ4-701

Unavailable

SPRING, CONTROL LEVER

53173-MJ4-006

Unavailable

CAP, CONTROL LEVER

53174-MJ4-006

Unavailable

BOLT, ADJUSTING

53176-MJ4-016

Unavailable

BOLT, CONTROL LEVER SOCKET (5X5) (NOT AVAILABLE)

53177-MJ4-006

Unavailable

CONTROL LEVER, L. HANDLEBAR (NOT AVAILABLE)

53178-MJ4-701

Unavailable

JOINT, CONTROL LEVER

53179-MJ4-016

Unavailable

CONTROL LEVER ASSY., L. HANDLEBAR

53180-MJ4-701

Unavailable

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-KM3-751

$11.02

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

SCREW, PAN (3X6)

93500-03006-0A

$1.49

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

WASHER, PLAIN (3MM)

94101-03800

$1.49
