- VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008
CARBURETOR ASSY.

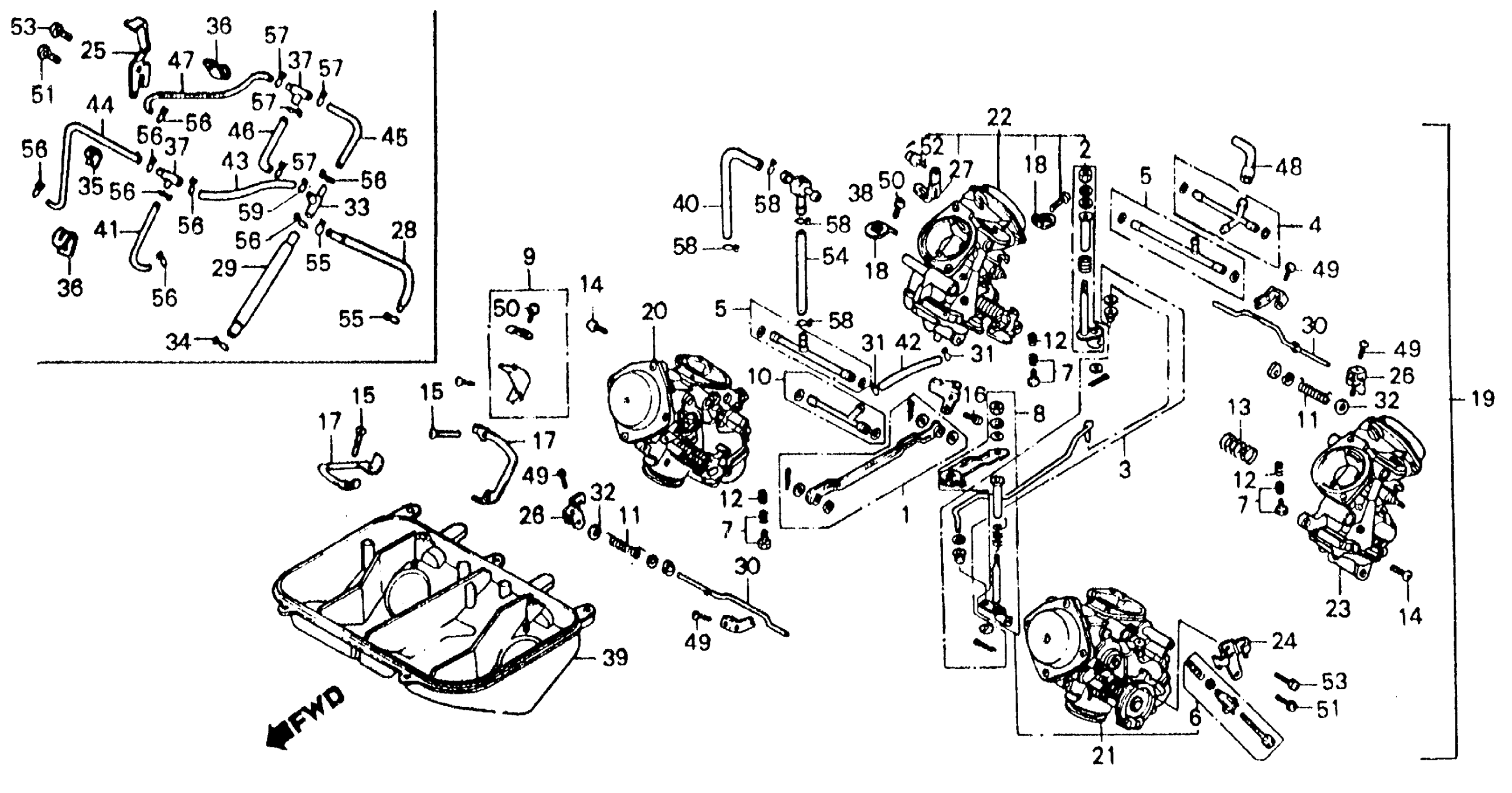

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 CARBURETOR ASSY. Diagram
#
1
LEVER SET, LINK
16017-ML7-004
Unavailable
2
ARM SET, LINK This part replaces 16018-ML7-004.
16018-MAJ-R00
Unavailable
3
ROD SET, STARTER LINK
16019-ML7-004
Unavailable
4
JOINT SET, FUEL
16027-MB6-671
Unavailable
5
JOINT SET, FUEL This part replaces 16027-ML7-004.
16027-MT4-000
Unavailable
5
JOINT SET, FUEL
16027-MT4-000
Unavailable
6
SCREW SET B
16028-ML7-004
Unavailable
7
SCREW SET C
16029-MB0-671
Unavailable
8
LINK B SET, STARTER
16031-ML7-004
Unavailable
9
PLATE SET, STAY
16035-ML7-004
Unavailable
10
JOINT SET, FUEL
16047-KE7-003
Unavailable
11
SPRING, COMPRESSION COIL
16051-ML7-004
Unavailable
13
SPRING
16053-MG9-004
Unavailable
14
SCREW, PAN
16080-KE7-003
Unavailable
15
SCREW, PAN
16080-ML7-004
Unavailable
16
SCREW, PAN (5X10)
16081-ML7-004
Unavailable
18
PLATE, SETTING
16186-MG8-791
Unavailable
19
CARBURETOR ASSY.
16100-ML7-671
Unavailable
20
CARBURETOR ASSY., R. FR.
16101-ML7-671
Unavailable
21
CARBURETOR ASSY., L. FR.
16102-ML7-671
Unavailable
22
CARBURETOR ASSY., R. RR. (NOT AVAILABLE)
16103-ML7-671
Unavailable
23
CARBURETOR ASSY., L. RR.
16104-ML7-671
Unavailable
24
STAY, WIRE
16119-ML7-601
Unavailable
26
LEVER, STARTER
16120-ML7-004
Unavailable
27
BINDER
16134-HA7-671
Unavailable
30
SHAFT, STARTER LINK
16145-ML7-004
Unavailable
32
WASHER, PLAIN This part replaces 16178-ML7-004.
16178-GHB-620
Unavailable
38
JOINT
16180-MB6-681
Unavailable
39
BASE, AIR CLEANER
16188-ML7-004
Unavailable
40
TUBE
16191-ML7-004
Unavailable
42
TUBE This part replaces 16192-ML7-004.
16192-ML7-405
Unavailable
42
TUBE
16192-ML7-405
Unavailable
48
TUBE, AIR VENT
16199-MB6-405
Unavailable
48
TUBE This part replaces 16199-ML7-004.
16199-MB6-405
Unavailable
