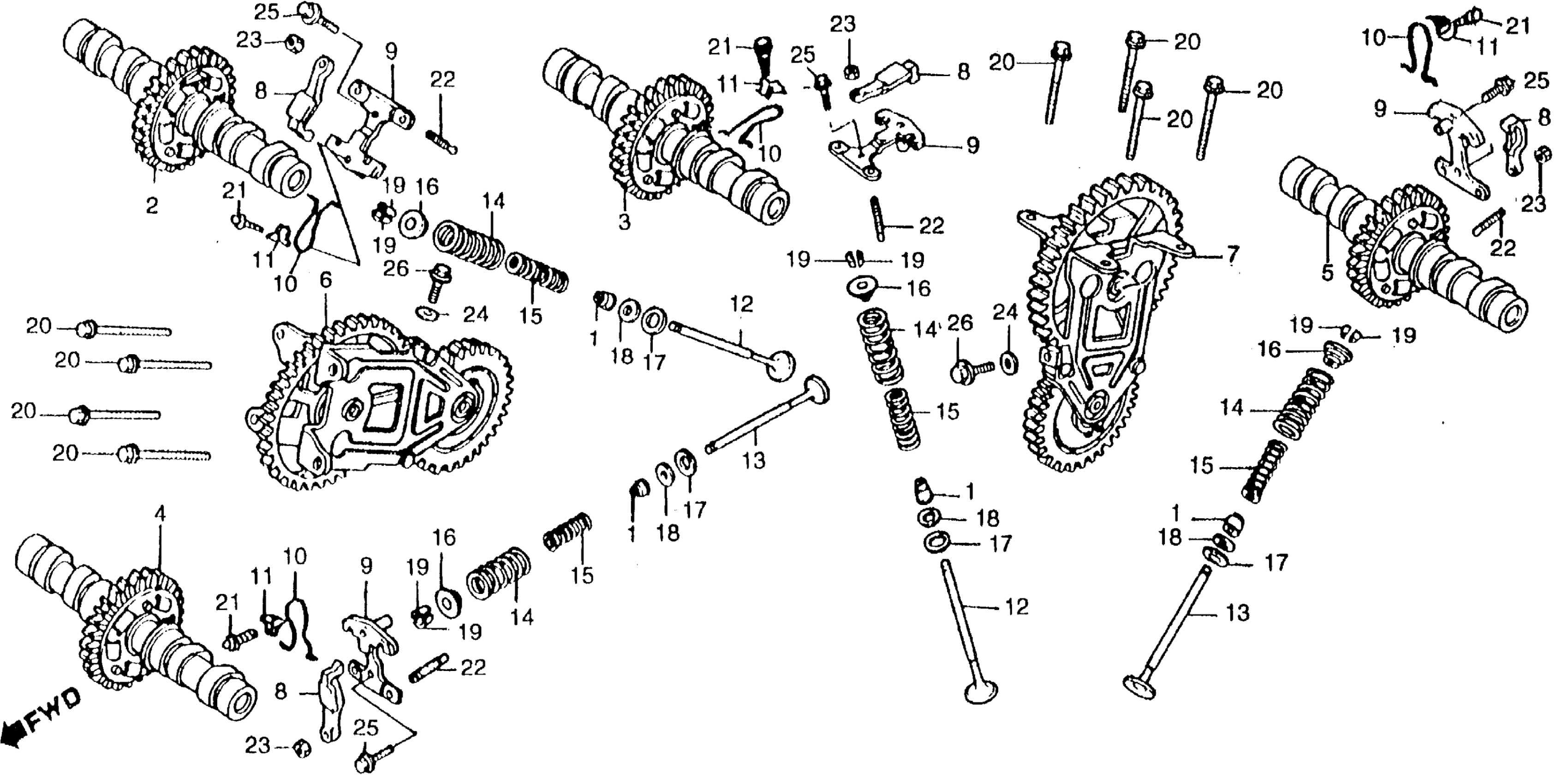

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM

12209-KL4-005

$7.81

2

CAMSHAFT, FR. This part replaces 14110-ML7-000.

14110-ML7-305

Unavailable

2

CAMSHAFT, FR.

14110-ML7-305

Unavailable

3

CAMSHAFT, RR. IN. This part replaces 14120-ML7-000.

14120-ML7-690

Unavailable

4

CAMSHAFT, FR. This part replaces 14130-ML7-000.

14130-ML7-690

Unavailable

4

CAMSHAFT, FR.

14130-ML7-690

Unavailable

5

CAMSHAFT, RR. EX. This part replaces 14140-ML7-000.

14140-ML7-690

Unavailable

6

GEAR TRAIN, FR. This part replaces 14410-ML7-000.

14410-ML7-920

Unavailable

6

GEAR TRAIN, FR. This part replaces 14410-ML7-010.

14410-ML7-920

Unavailable

6

GEAR TRAIN, FR. This part replaces 14410-ML7-020.

14410-ML7-920

Unavailable

6

GEAR TRAIN, FR.

14410-ML7-920

Unavailable

7

GEAR TRAIN, RR. This part replaces 14420-ML7-000.

14420-ML7-920

Unavailable

7

GEAR TRAIN, RR. This part replaces 14420-ML7-690.

14420-ML7-920

Unavailable

7

GEAR TRAIN, RR. This part replaces 14420-ML7-691.

14420-ML7-920

Unavailable

7

GEAR TRAIN, RR.

14420-ML7-920

Unavailable

8

ARM, VALVE ROCKER

14611-ML7-010

Unavailable

9

GUIDE ASSY., ROCKER ARM (NOT AVAILABLE)

14614-ML7-000

$25.95

10

SPRING, ROCKER ARM (NOT AVAILABLE) | Use from Engine SN 2007522

14617-ML7-000

Unavailable

11

PLATE, ROCKER ARM SPRING SETTING (NOT AVAILABLE) | Use from Engine SN 2007522

14618-ML7-000

Unavailable

12

VALVE, IN. This part replaces 14711-ML7-000.

14711-ML7-690

Unavailable

12

VALVE, IN.

14711-ML7-690

Unavailable

13

VALVE, EX. This part replaces 14721-ML7-000.

14721-ML7-690

Unavailable

13

VALVE, EX.

14721-ML7-690

Unavailable

14

SPRING, VALVE (OUTER)

14751-ML7-004

Unavailable

15

SPRING, VALVE (INNER)

14761-ML7-004

Unavailable

16

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-ML7-000

Unavailable

17

SEAT, VALVE SPRING (OUTER)

14775-ML7-000

Unavailable

18

SEAT, VALVE SPRING (INNER)

14777-ML7-000

Unavailable

19

COTTER, VALVE

14781-MB4-000

$3.19

20

BOLT, FLANGE (9X95)

90008-ML7-000

Unavailable

21

BOLT, SPECIAL (6X35) | Use up to Engine SN 2007521

90011-ML7-000

Unavailable

21

BOLT, SPECIAL (6X40) | Use up to Engine SN 2007521

90011-ML7-010

Unavailable

21

BOLT, SPECIAL (6X40)

90011-ML7-010

Unavailable

22

SCREW, TAPPET ADJ. | Use up to Engine SN 2012720

90012-ML7-003

Unavailable

22

SCREW, TAPPET ADJ. | Use from Engine SN 2012721

90012-ML7-013

Unavailable

23

NUT, TAPPET ADJ.

90206-ML7-000

$2.30

24

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

25

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

25

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

26

BOLT, FLANGE (8X22)

95701-08022-07

$2.16
