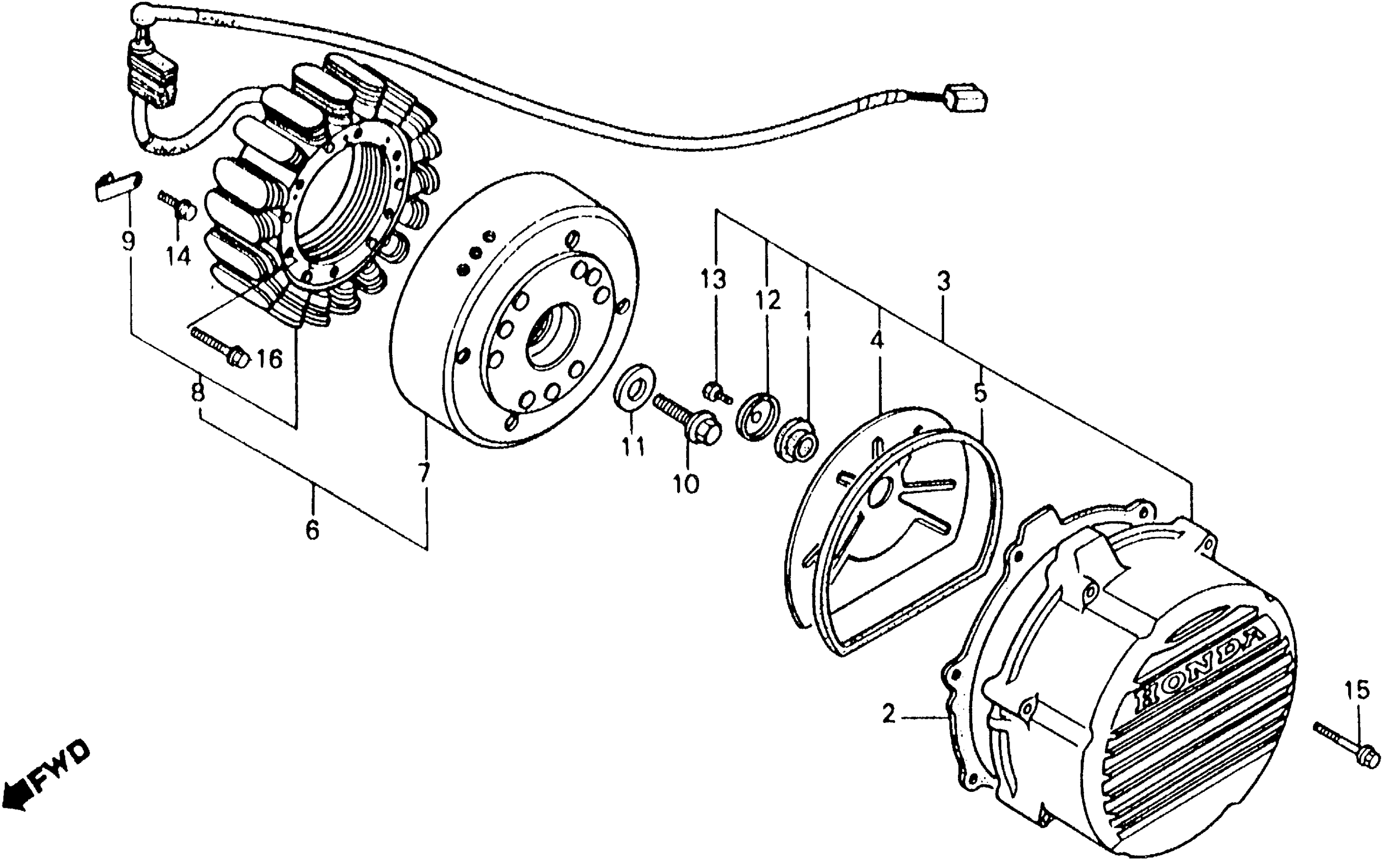

Honda VFR750FA (86) 750 INTERCEPTOR, JPN, VIN# JH2RC240-GM000008 ALTERNATOR Diagram

#

Description
Price

1

RUBBER A, R. COVER DAMPER

11335-ML7-300

$9.21

2

GASKET, ALTERNATOR COVER This part replaces 11636-ML7-000.

11636-ML7-306

Unavailable

2

GASKET, ALTERNATOR COVER

11636-ML7-306

Unavailable

3

COVER, ALTERNATOR (NOT AVAILABLE)

11640-ML7-670

Unavailable

4

PLATE, ALTERNATOR COVER

11643-ML7-300

Unavailable

5

RUBBER, ALTERNATOR COVER DAMPER This part replaces 11645-ML7-300.

11645-ML7-310

Unavailable

5

RUBBER, ALTERNATOR COVER DAMPER

11645-ML7-310

Unavailable

6

ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO) (NOT AVAILABLE) This part replaces 31100-ML7-004.

31100-ML7-691

Unavailable

6

ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO) (NOT AVAILABLE) This part replaces 31100-ML7-156.

31100-ML7-691

Unavailable

6

ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO) (NOT AVAILABLE) This part replaces 31100-ML7-166.

31100-ML7-691

Unavailable

7

ROTOR (DENSO)

31110-ML7-004

Unavailable

7

ROTOR (MITSUBA)

31110-ML7-156

Unavailable

8

STATOR (DENSO) This part replaces 31120-ML7-004.

31120-ML7-691

Unavailable

8

STATOR (MITSUBA) This part replaces 31120-ML7-156.

31120-ML7-692

Unavailable

8

STATOR (MITSUBA) This part replaces 31120-ML7-166.

31120-ML7-692

Unavailable

8

STATOR (DENSO)

31120-ML7-691

Unavailable

8

STATOR (MITSUBA)

31120-ML7-692

Unavailable

9

CLAMP, ALTERNATOR WIRE

31130-ML7-004

Unavailable

9

CLAMP, ALTERNATOR WIRE This part replaces 31130-ML7-156.

31130-ML7-004

Unavailable

10

BOLT, FLANGE (12X45)

90023-MA6-000

$11.13

11

WASHER (12X30X4.5)

90401-KK9-960

Unavailable

12

WASHER, SPECIAL (6MM)

90406-ML7-000

$2.31

13

BOLT, HEX. (6X10) This part replaces 93300-06010-0A.

93301-06010-0A

Unavailable

13

BOLT, HEX. (6X10)

93301-06010-0A

Unavailable

14

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

14

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

15

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

15

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

16

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

16

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
