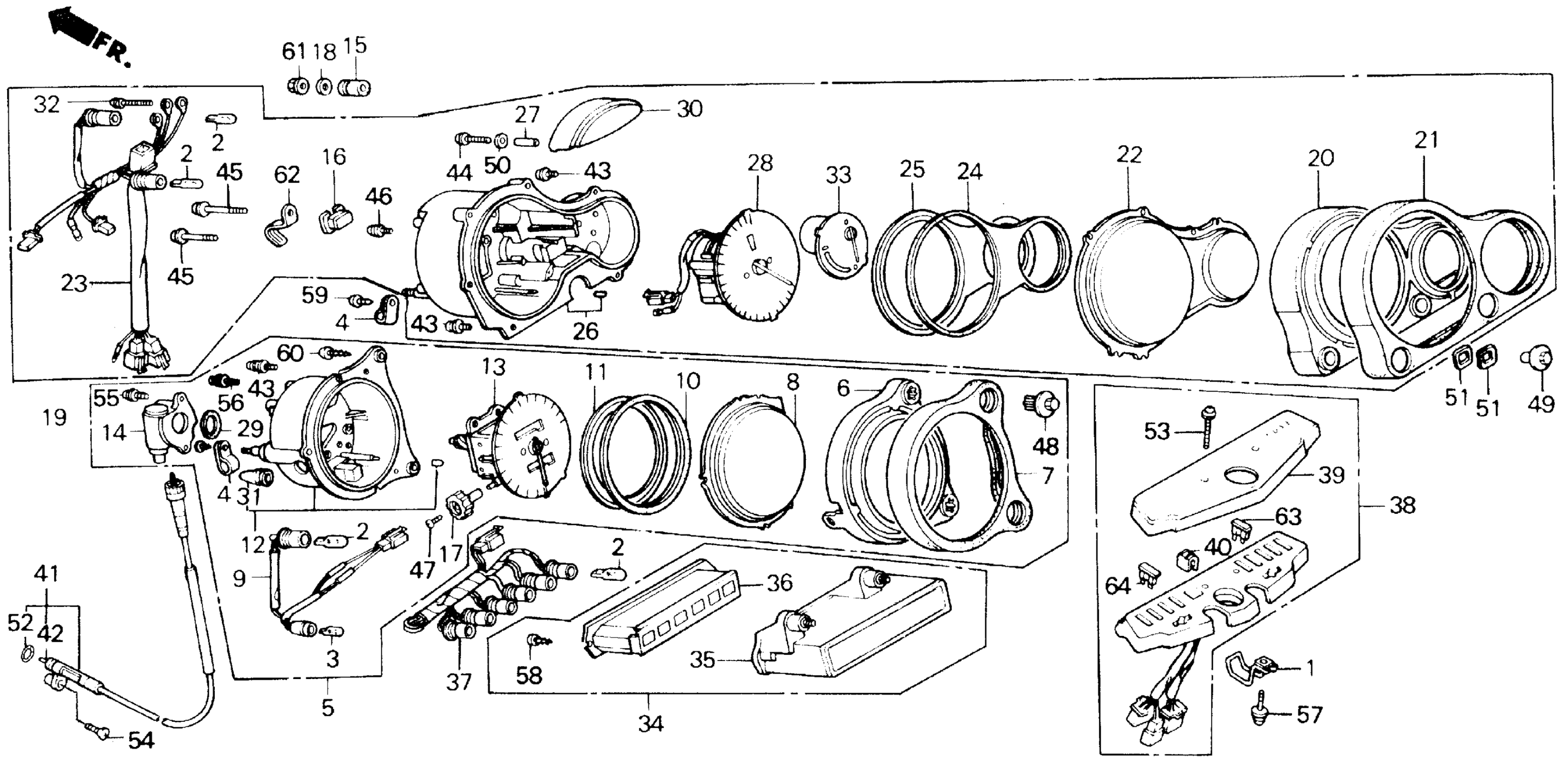

Honda VFR700FA (86) INTERCEPTOR, JPN, VIN# JH2RC260-GM000003 TO JH2RC260-GM001826 VFR700F METER Diagram

#

Description
Price

1

HOLDER, WIRE (NOT AVAILABLE)

32900-ML7-671

Unavailable

2

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

2

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

3

BULB, WEDGE BASE (12V3W) (TOSHIBA)

34908-KM1-671

$7.08

4

CLAMP

37121-ML7-671

$2.89

5

SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI) This part replaces 37200-ML7-671.

37200-ML7-672

Unavailable

5

SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI)

37200-ML7-672

Unavailable

6

CASE, SPEEDOMETER (UPPER)

37202-ML7-671

Unavailable

7

RUBBER, SPEEDOMETER PANEL

37203-ML7-671

Unavailable

8

GLASS, SPEEDOMETER

37204-ML7-671

Unavailable

9

SOCKET, SPEEDOMETER

37205-ML7-671

Unavailable

10

GASKET, SPEEDOMETER

37206-ML7-671

Unavailable

11

PLATE, SPEEDOMETER REFLECTING

37207-ML7-671

Unavailable

12

CASE ASSY., SPEEDOMETER (LOWER)

37208-ML7-671

Unavailable

13

SPEEDOMETER

37210-ML7-671

Unavailable

14

BOSS, ELBOW

37211-ML7-671

Unavailable

15

RUBBER, METER CUSHION

37215-MA6-008

$2.97

16

GROMMET

37216-GJ8-701

Unavailable

17

KNOB, TRIP METER

37220-445-008

Unavailable

18

WASHER, PLAIN

37244-MA6-008

$2.15

19

METER ASSY., TACHO & TEMPERATURE

37250-ML7-671

Unavailable

20

CASE, TACHOMETER (UPPER) (NOT AVAILABLE)

37252-ML7-671

Unavailable

21

RUBBER, TACHOMETER PANEL

37253-ML7-671

Unavailable

22

GLASS, TACHOMETER

37254-ML7-671

Unavailable

23

SOCKET, TACHOMETER

37255-ML7-671

Unavailable

24

GASKET, TACHOMETER (NOT AVAILABLE)

37256-ML7-671

Unavailable

25

PLATE, TACHOMETER REFLECTING

37257-ML0-721

Unavailable

25

PLATE, TACHOMETER REFLECTING This part replaces 37257-ML7-671.

37257-ML0-721

Unavailable

26

CASE ASSY., TACHOMETER (LOWER) (NOT AVAILABLE)

37258-ML7-671

Unavailable

27

COLLAR

37259-ML7-671

Unavailable

28

TACHOMETER

37260-ML7-671

Unavailable

29

SEAL

37264-ML7-671

Unavailable

30

VISOR, TACHOMETER

37265-ML7-671

Unavailable

31

RUBBER, CUSHION

37304-ML7-671

Unavailable

32

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

33

INSTRUMENT, TEMPERATURE

37400-ML7-671

Unavailable

34

BOX ASSY., PILOT

37600-ML7-671

Unavailable

35

CASE, PILOT BOX (UPPER) (NOT AVAILABLE)

37602-ML7-671

Unavailable

36

CASE ASSY. (LOWER)

37603-ML7-671

Unavailable

37

SOCKET, PILOT BOX

37605-ML7-671

Unavailable

38

BOX ASSY., FUSE *NH105* (MAT BLACK) (NOT AVAILABLE)

38200-ML7-671ZA

Unavailable

39

COVER, FUSE *NH105* (MAT BLACK)

38202-ML0-910

Unavailable

39

COVER, FUSE *NH105* (MAT BLACK) This part replaces 38202-ML7-671.

38202-ML0-910

Unavailable

39

COVER, FUSE *NH105* (MAT BLACK) This part replaces 38202-ML7-671ZA.

38202-ML0-910

Unavailable

40

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

41

CABLE ASSY., SPEEDOMETER This part replaces 44830-MJ6-000.

44830-MT3-000

$33.74

41

CABLE ASSY., SPEEDOMETER

44830-MT3-000

$33.74

42

CABLE (INNER)

44831-MM5-000

Unavailable

42

CABLE (INNER) This part replaces 44831-443-720.

44831-MM5-000

Unavailable

43

SCREW-WASHER (3X12)

90030-ML7-671

Unavailable

44

SCREW-WASHER (3X22)

90031-ML7-671

Unavailable

45

SCREW, TAPPING (4X3) This part replaces 90032-ML7-671.

90133-SG0-A01

Unavailable

45

SCREW, TAPPING (4X3)

90133-SG0-A01

Unavailable

46

SCREW-WASHER (3X10)

90033-ML7-671

Unavailable

47

SCREW, PAN (2X6)

90158-KM7-911

$1.92

48

NUT, SPECIAL (4MM)

90305-KM9-008

Unavailable

49

NUT, SPECIAL (6MM)

90305-MJ4-000

Unavailable

50

WASHER, PLAIN

90430-ML7-671

Unavailable

51

WASHER, WAVE

90431-ML7-671

Unavailable

52

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

52

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

52

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

53

SCREW, PAN (4X20)

93500-04020-0G

$1.49

53

SCREW, PAN (4X20) This part replaces 93500-04020-1G.

93500-04020-0G

$1.49

54

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

55

SCREW-WASHER (4X10)

93892-04010-00

$1.49

55

SCREW-WASHER (4X10) This part replaces 93892-04010-10.

93892-04010-00

$1.49

56

SCREW-WASHER (4X10)

93893-04010-07

$1.49

56

SCREW-WASHER (4X10) This part replaces 93893-04010-17.

93893-04010-07

$1.49

57

SCREW-WASHER (5X20) | Use up to Frame SN GM000346

93893-05020-00

$1.49

57

SCREW-WASHER (5X20) | Use up to Frame SN GM000346 This part replaces 93893-05020-10.

93893-05020-00

$1.49

57

SCREW-WASHER (5X22) | Use from Frame SN GM000347

93893-05022-07

Unavailable

58

SCREW, TAPPING (3X16)

93903-22480

$1.49

59

SCREW, TAPPING (4X16)

93903-24420

$1.49

60

SCREW, TAPPING (4X16)

93903-24480

$1.49

61

NUT, FLANGE (6MM)

94050-06080

$1.49

62

CLIP, CABLE (4X60)

94591-46000

$2.98

63

FUSE, BLADE (10A)

98200-31000

$1.49

64

FUSE, BLADE (15A)

98200-31500

$1.49
