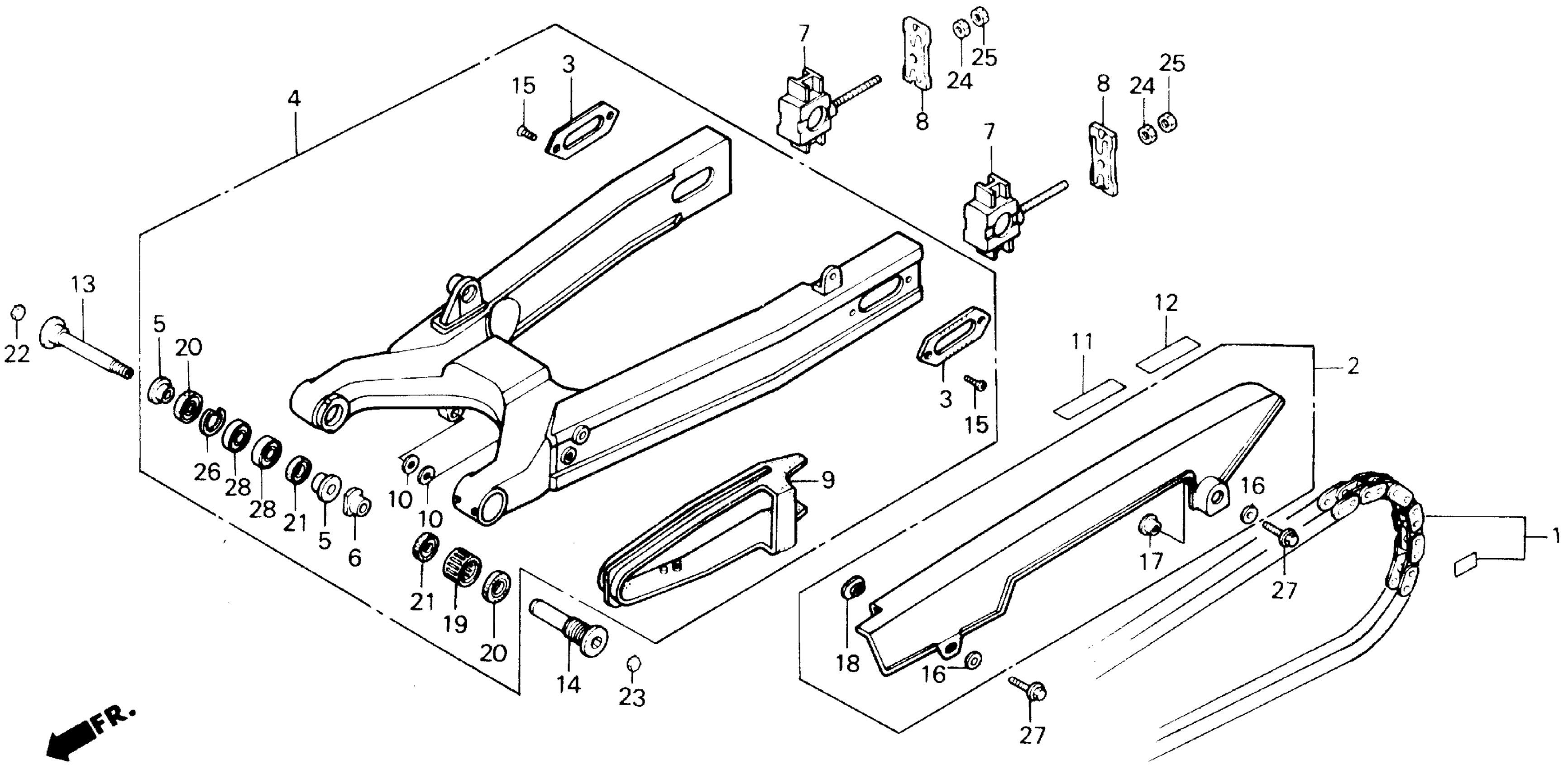

Honda VFR700FA (86) INTERCEPTOR, JPN, VIN# JH2RC260-GM000003 TO JH2RC260-GM001826 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (DID50VSI) (DAIDO)

405B3-ML7-003

Unavailable

1

CHAIN SET, DRIVE (RK50HF0) (TAKASAGO)

405B3-ML7-005

Unavailable

2

CASE, DRIVE CHAIN This part replaces 40510-ML7-000.

40510-MV8-900

Unavailable

2

CASE, DRIVE CHAIN This part replaces 40510-ML7-920.

40510-MV8-900

Unavailable

2

CASE, DRIVE CHAIN

40510-MV8-900

Unavailable

3

WASHER, SWINGARM (OUTER)

42308-ML7-000

Unavailable

4

SWINGARM ASSY. This part replaces 52100-ML7-000.

52100-ML7-920

Unavailable

5

COLLAR, R. PIVOT

52102-ML7-000

Unavailable

6

NUT, R. PIVOT

52103-ML7-000

Unavailable

7

ADJUSTER, CHAIN This part replaces 52120-ML7-000.

52120-ML7-690

Unavailable

7

ADJUSTER, CHAIN

52120-ML7-690

Unavailable

8

PLATE, CHAIN ADJUSTER

52121-MJ6-720

Unavailable

9

SLIDER, CHAIN

52170-ML7-000

Unavailable

10

WASHER, THRUST

52466-MB2-000

Unavailable

11

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-ML7-670

Unavailable

12

LABEL, DRIVE CHAIN CAUTION (NOT AVAILABLE)

87507-ML7-610

Unavailable

13

BOLT, R. PIVOT

90121-ML7-000

Unavailable

14

BOLT, L. PIVOT

90122-ML7-000

Unavailable

15

SCREW, FLAT (5X4)

90124-KA3-711

$5.60

15

SCREW, FLAT (5X4) This part replaces 90124-KA3-830.

90124-KA3-711

$5.60

16

WASHER (6MM)

90485-MB2-000

$1.91

17

WASHER (6X20)

90512-KF9-900

$3.06

17

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$3.06

18

WASHER (6X9)

90513-405-000

$2.09

19

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

20

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

20

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.46

21

DUST SEAL (22X29X4)

91283-ML7-003

$5.92

22

PLUG, HEX. (12MM) | Use from Frame SN GM001617

91456-MB2-000

Unavailable

23

PLUG, HEX. (14MM) | Use from Frame SN GM001617

91457-ML0-000

Unavailable

24

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

NUT, HEX. (8MM)

94030-08000

$1.49

26

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

27

BOLT, FLANGE (6X14) This part replaces 95700-06014-07.

95701-06014-07

$1.49

27

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

28

BEARING, RADIAL BALL (6202)

96100-62020-10

$14.49
