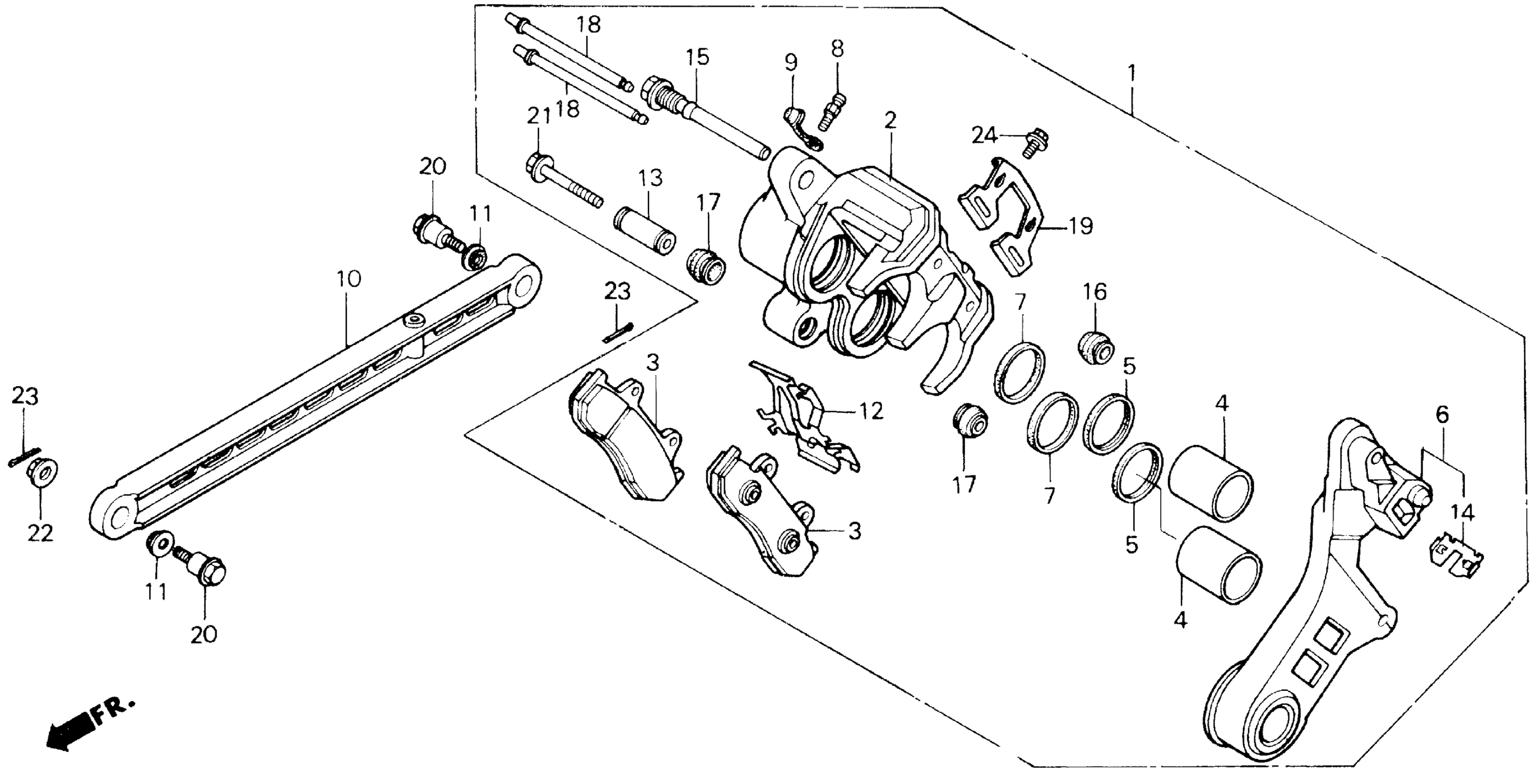

Honda VFR700FA (86) INTERCEPTOR, JPN, VIN# JH2RC260-GM000003 TO JH2RC260-GM001826 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, BRAKE

06435-ML7-415

Unavailable

NI

PAD SET, BRAKE This part replaces 431A0-ML7-007.

06435-ML7-415

Unavailable

1

CALIPER ASSY., RR. This part replaces 43100-ML7-007.

43100-ML7-027

Unavailable

1

CALIPER ASSY., RR. This part replaces 43100-ML7-017.

43100-ML7-027

Unavailable

1

CALIPER ASSY., RR.

43100-ML7-027

Unavailable

2

CALIPER, RR.

43101-ML7-006

Unavailable

3

PAD, RR. (NISSIN) This part replaces 43105-ML7-006.

43105-ML7-037

Unavailable

3

PAD, RR. (NISSIN) This part replaces 43105-ML7-017.

43105-ML7-037

Unavailable

3

PAD, RR. (NISSIN) This part replaces 43105-ML7-007.

43105-ML7-037

Unavailable

3

PAD, RR. (NISSIN) This part replaces 43105-ML7-027.

43105-ML7-037

Unavailable

3

PAD, RR. (NISSIN)

43105-ML7-037

Unavailable

4

PISTON

43107-MA3-006

$32.99

5

DUST SEAL

43109-MA3-006

$5.73

6

BRACKET, RR.

43110-ML7-006

Unavailable

7

SEAL, PISTON

43209-MA3-006

$7.04

8

SCREW, BLEEDER

43352-568-003

$7.95

9

CAP, BLEEDER

43353-461-771

$5.05

10

LINK, TORQUE

43431-ML7-000

Unavailable

11

WASHER, TORQUE LINK

43434-MA3-640

Unavailable

12

SPRING, PAD

45108-MA3-006

$6.28

13

SLEEVE

45111-MA3-006

$13.38

14

RETAINER, BRACKET

45112-445-631

$8.98

15

PIN, BOLT

45131-MA3-006

$17.59

16

BOOT B

45133-MA3-006

$5.46

17

BOOT, PIN

45133-166-016

$3.85

18

PIN, HANGER

45215-MA3-006

$12.77

19

PLATE

45217-MJ0-006

Unavailable

20

BOLT, TORQUE LINK

90124-ML7-000

Unavailable

21

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

23

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

23

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

23

PIN, COTTER (2.0X22)

94201-20220

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

23

PIN, COTTER (2.0X35)

94201-20350

$1.49

23

PIN, COTTER (2.0X22)

94201-29220

$1.49

24

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

24

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
