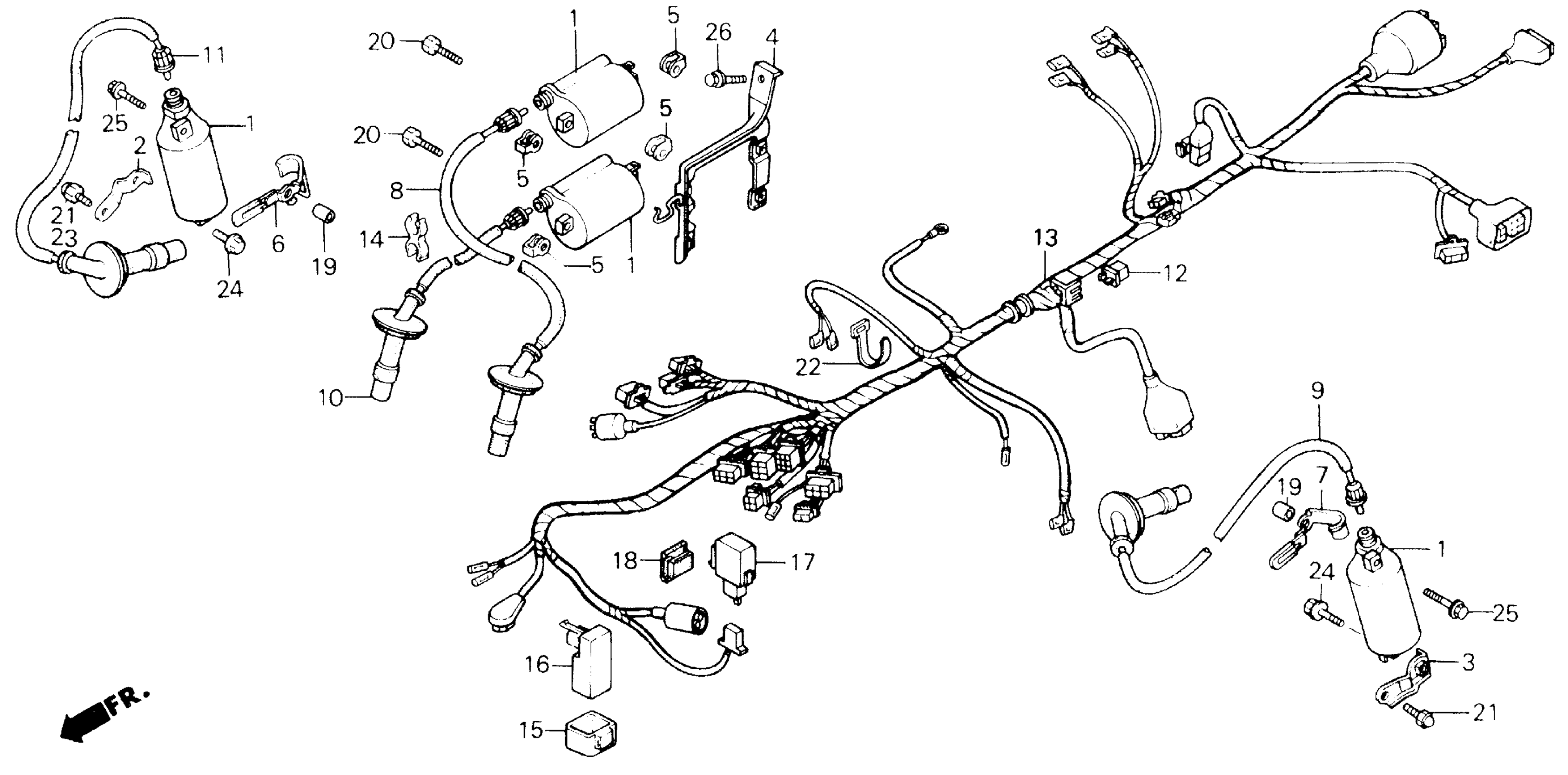

Honda VFR700F2A (87) INTERCEPTOR, JPN, VIN# JH2RC262-HM100001 TO JH2RC262-HM101781 WIRE HARNESS Diagram

#

Description
Price

1

COIL, IGNITION

30500-ML7-013

$88.14

2

STAY, R. FR. IGNITION COIL

30511-ML7-000

Unavailable

3

STAY, L. FR. IGNITION COIL

30512-ML7-000

Unavailable

4

STAY, R. RR. IGNITION COIL

30515-ML7-000

Unavailable

5

SPACER, IGNITION COIL

30520-ML7-000

$3.77

6

PROTECTOR, R. IGNITION WIRE

30530-ML7-010

Unavailable

7

PROTECTOR, L. COIL CABLE

30531-ML7-000

Unavailable

8

CAP ASSY. 1, IGNITION

30751-MV8-970

Unavailable

8

CAP ASSY. 1, IGNITION This part replaces 30751-ML7-700.

30751-MV8-970

Unavailable

9

CAP ASSY. 2, IGNITION This part replaces 30752-ML7-700.

30752-MV8-970

Unavailable

10

CAP ASSY. 3, IGNITION

30753-ML7-700

Unavailable

11

CAP ASSY. 4, IGNITION

30754-MV8-970

Unavailable

11

CAP ASSY. 4, IGNITION This part replaces 30754-ML7-700.

30754-MV8-970

Unavailable

12

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

12

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

13

WIRE HARNESS (NOT AVAILABLE)

32100-ML7-660

Unavailable

14

CLAMP, IGNITION WIRE

32802-MB2-000

Unavailable

17

RELAY, TURN SIGNAL (TATEISHI) This part replaces 38301-ME9-771.

38301-MF5-771

$81.63

17

RELAY, TURN SIGNAL (TATEISHI)

38301-MF5-771

$81.63

17

RELAY, TURN SIGNAL (TATEISHI) This part replaces 38301-MF5-773.

38301-MF5-771

$81.63

18

SUSPENSION, TURN SIGNAL RELAY

38306-ME9-771

Unavailable

18

SUSPENSION, TURN SIGNAL RELAY

38306-ME9-772

Unavailable

19

COLLAR, MAIN STEP (NOT AVAILABLE)

50618-MJ0-950

Unavailable

20

BOLT, HEX. (6X20) This part replaces 92000-06020-4J.

92101-06020-4J

$1.49

20

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

21

BOLT, CAP (6X12) This part replaces 92500-06012-0A.

92501-06012-0A

$2.41

21

BOLT, CAP (6X12)

92501-06012-0A

$2.41

22

BAND B1, CABLE

32161-404-000

$2.23

22

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

23

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

24

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

24

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

25

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

25

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

26

BOLT, FLANGE (6X12)

96300-06012-00

$1.49
