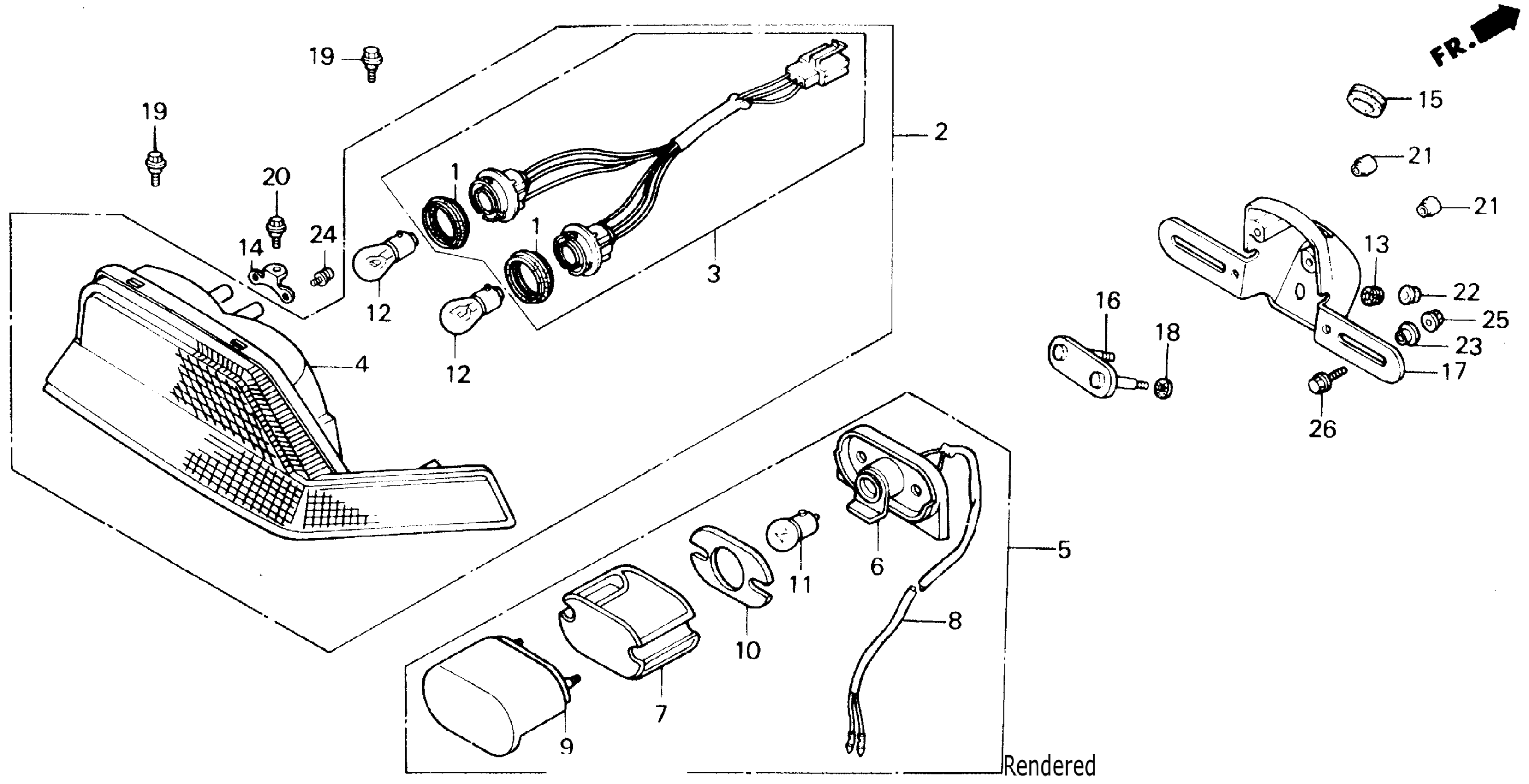

Honda VFR700F2A (87) INTERCEPTOR, JPN, VIN# JH2RC262-HM100001 TO JH2RC262-HM101781 TAILLIGHT Diagram

#

Description
Price

1

GASKET, SEAL

33518-SA2-003

$4.38

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-ML7-671

Unavailable

3

SOCKET, TAILLIGHT (NOT AVAILABLE)

33708-ML7-003

Unavailable

4

TAILLIGHT SUB-ASSY. (NOT AVAILABLE)

33710-ML7-671

Unavailable

5

LIGHT ASSY., LICENSE (12V 8W)

33720-ML7-670

Unavailable

6

BASE

33721-MB2-003

Unavailable

7

LENS, LICENSE

33722-MB1-013

$19.68

8

WIRE, LICENSE

33725-ML7-670

Unavailable

9

COVER, LICENSE LIGHT

33727-ME4-671

$27.26

10

GASKET, LENS

33729-MB1-003

$6.30

11

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

11

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

11

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

12

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

13

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

14

STAY, TAILLIGHT (UPPER)

77211-ML7-000

Unavailable

15

GROMMET, CABLE

80102-323-000

Unavailable

16

PLATE, LICENSE

84701-MB2-610

Unavailable

17

BRACKET, NUMBER PLATE

84701-ML7-670

$41.31

18

RUBBER, LICENSE BRACKET SETTING

84705-GB0-900

Unavailable

19

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.24

20

BOLT, FLANGE (6MM)

90112-GC6-000

$3.90

21

NUT, SPECIAL (4MM)

90302-MB2-000

$4.92

22

NUT, FLANGE (6MM)

90302-187-000

$2.39

23

WASHER (6X20)

90502-VA4-640

$3.23

24

SCREW-WASHER (5X10)

93892-05010-00

$1.49

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
