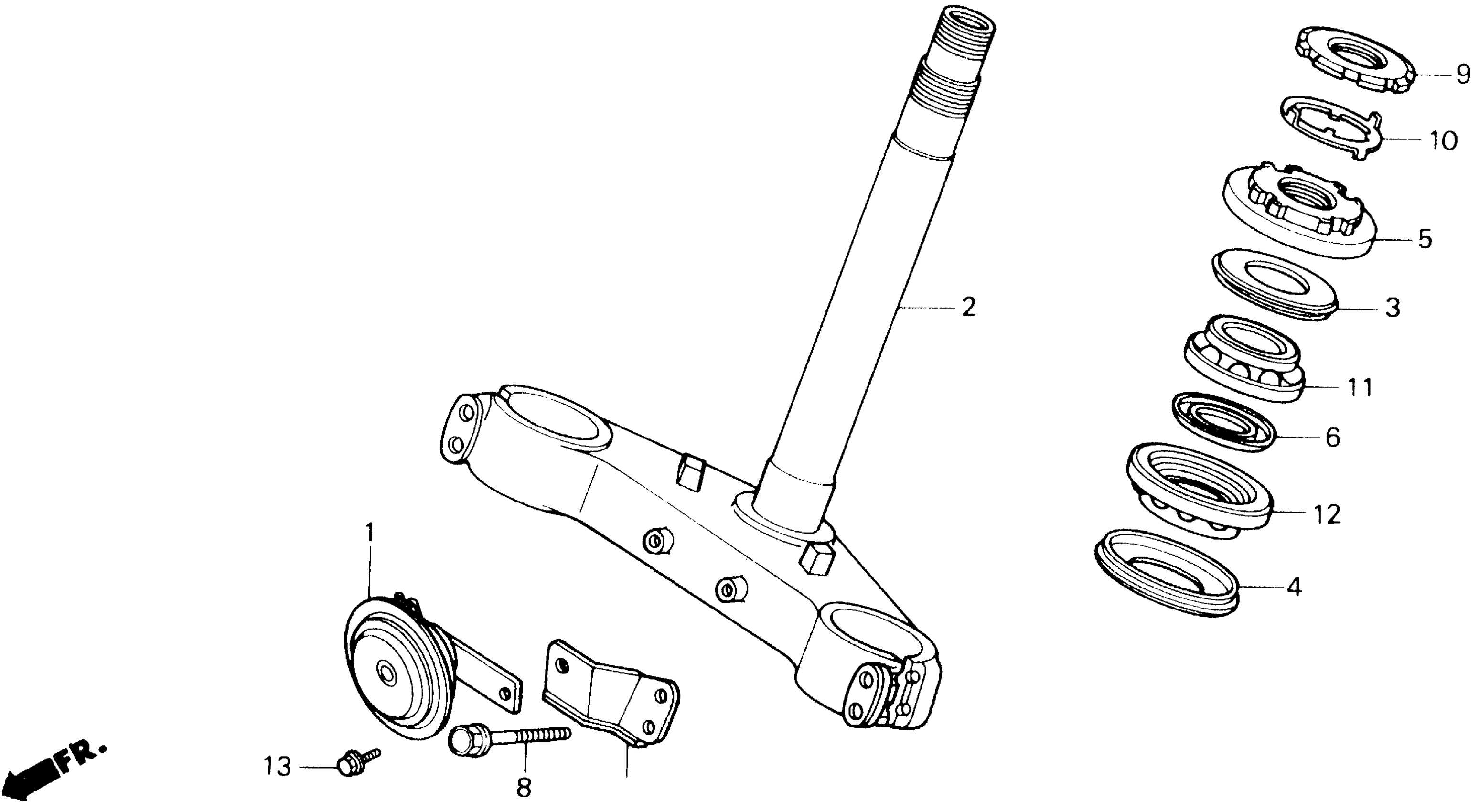

Honda VFR700F2A (87) INTERCEPTOR, JPN, VIN# JH2RC262-HM100001 TO JH2RC262-HM101781 STEERING STEM Diagram

HORN

38110-MM8-610

Unavailable

HORN This part replaces 38110-ML7-700.

38110-MM8-610

Unavailable

STEM, STEERING (NOT AVAILABLE)

53200-ML7-000

Unavailable

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.61

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD TOP

53220-KM4-000

Unavailable

STAY, HORN

61406-ML7-000

Unavailable

BOLT, FLANGE (8X40)

90107-KF0-000

$4.48

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER)

91016-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$36.57

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

BOLT, FLANGE (8X16) This part replaces 95800-08016-08.

95701-08016-08

$1.80
