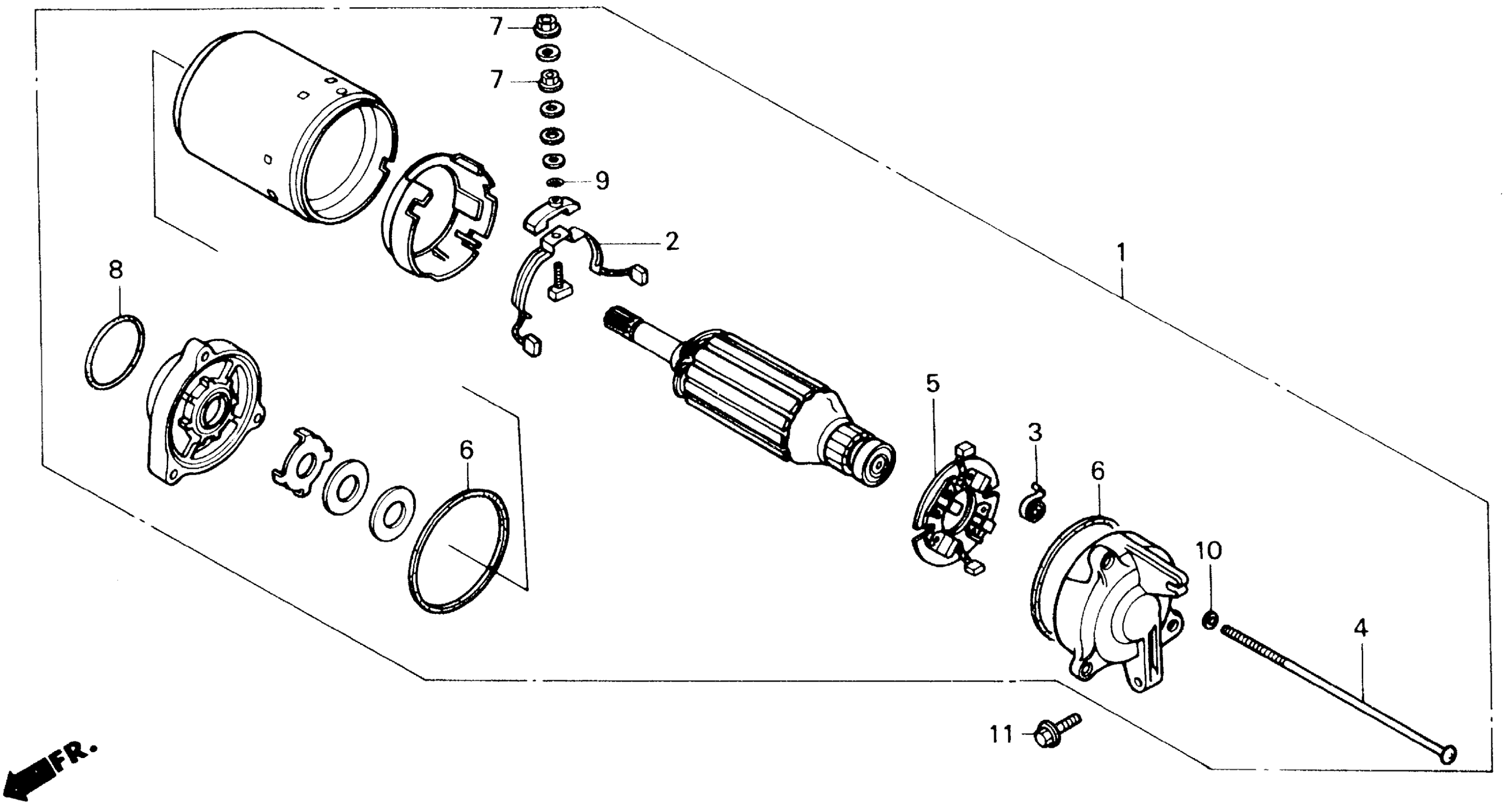

Honda VFR700F2A (87) INTERCEPTOR, JPN, VIN# JH2RC262-HM100001 TO JH2RC262-HM101781 STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-ML7-008

Unavailable

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$31.18

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31201-MG8-008.

31201-KG7-000

$31.18

3

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

4

SCREW, PAN (5X115)

31205-MB0-000

Unavailable

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MG8-008.

31206-MM5-008

$19.33

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

6

RING, SEAL

31207-179-711

$4.22

7

NUT-WASHER (6MM)

90071-MB0-000

$1.97

8

O-RING

91309-MA6-000

$3.97

9

O-RING

91320-MB0-000

$2.43

10

WASHER, SPRING (5MM)

94111-05000

$1.49

11

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

11

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
