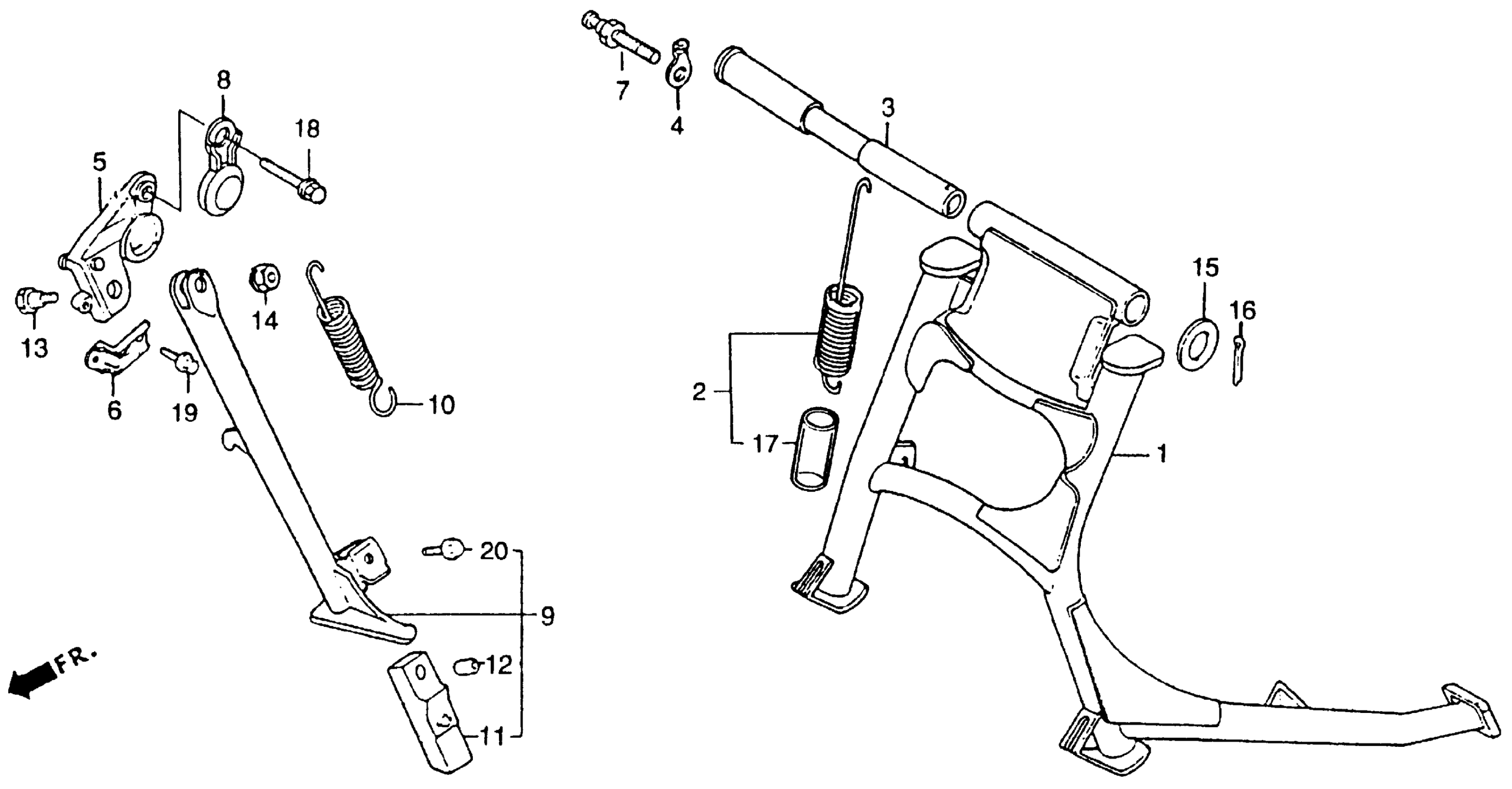

Honda VFR700F2A (87) INTERCEPTOR, JPN, VIN# JH2RC262-HM100001 TO JH2RC262-HM101781 STAND Diagram

STAND, MAIN (NOT AVAILABLE) | (Optional).

50500-ML7-600

Unavailable

SPRING ASSY., MAIN STAND | (Optional).

50525-ML7-000

Unavailable

PIPE, MAIN STAND PIVOT | (Optional).

50526-MB6-000

Unavailable

PIPE, MAIN STAND PIVOT | (Optional). This part replaces 50526-ML7-000.

50526-MB6-000

Unavailable

WASHER, STOPPER | (Optional).

50527-ML7-700

Unavailable

BRACKET, SIDE STAND (NOT AVAILABLE) This part replaces 50535-ML7-000.

50535-ML7-010

Unavailable

STAY, COWL (LOWER)

50536-ML7-000

Unavailable

HOOK, MAIN STAND SPRING | (Optional).

50538-ML7-000

$7.90

BAR ASSY., SIDE STAND

50540-ML7-700

Unavailable

SPRING, SIDE STAND

50541-ML7-000

Unavailable

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

SCREW, SIDE STAND PIVOT

90108-KG0-000

$7.96

SCREW, SIDE STAND PIVOT This part replaces 90108-ML7-000.

90108-KG0-000

$7.96

NUT, U (10MM)

90304-GE8-003

$3.67

WASHER (20MM) This part replaces 90501-ML7-000.

90501-ZV5-A10

$3.00

WASHER (20MM)

90501-ZV5-A10

$3.00

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

BULK HOSE, VINYL (17.5X20.5X1000) (17.5X20.5X50)

95003-55001-10M

Unavailable
