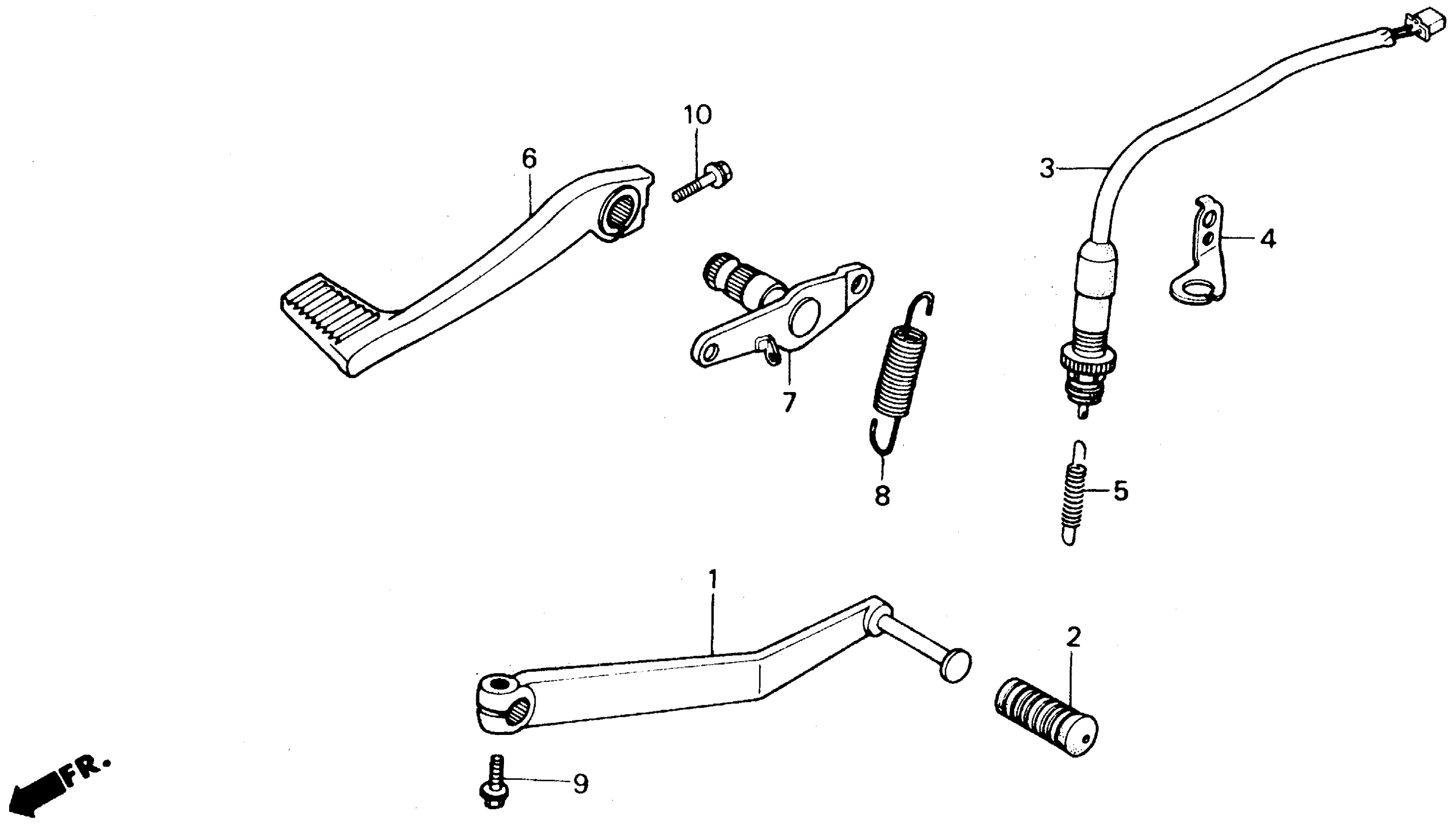

Honda VFR700F2A (87) INTERCEPTOR, JPN, VIN# JH2RC262-HM100001 TO JH2RC262-HM101781 PEDAL Diagram

#

Description

Price

1

PEDAL, GEARSHIFT

24701-ML7-700

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

SWITCH ASSY., RR. STOP

35350-KR0-405

$19.25

3

SWITCH ASSY., RR. STOP This part replaces 35350-ML7-003.

35350-KR0-405

$19.25

3

SWITCH ASSY., RR. STOP This part replaces 35350-ML7-013.

35350-KR0-405

$19.25

3

SWITCH ASSY., RR. STOP This part replaces 35350-ML7-910.

35350-KR0-405

$19.25

4

BRACKET, STOP SWITCH

35355-ML7-000

Unavailable

5

SPRING, STOP SWITCH

35357-ME9-000

$4.74

6

PEDAL, RR. BRAKE

46500-ML7-000

Unavailable

7

ARM, RR. BRAKE MIDDLE (NOT AVAILABLE)

46510-ML7-000

Unavailable

8

SPRING, BRAKE PEDAL RETURN

46514-ML7-000

Unavailable

9

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

9

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

10

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

10

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
