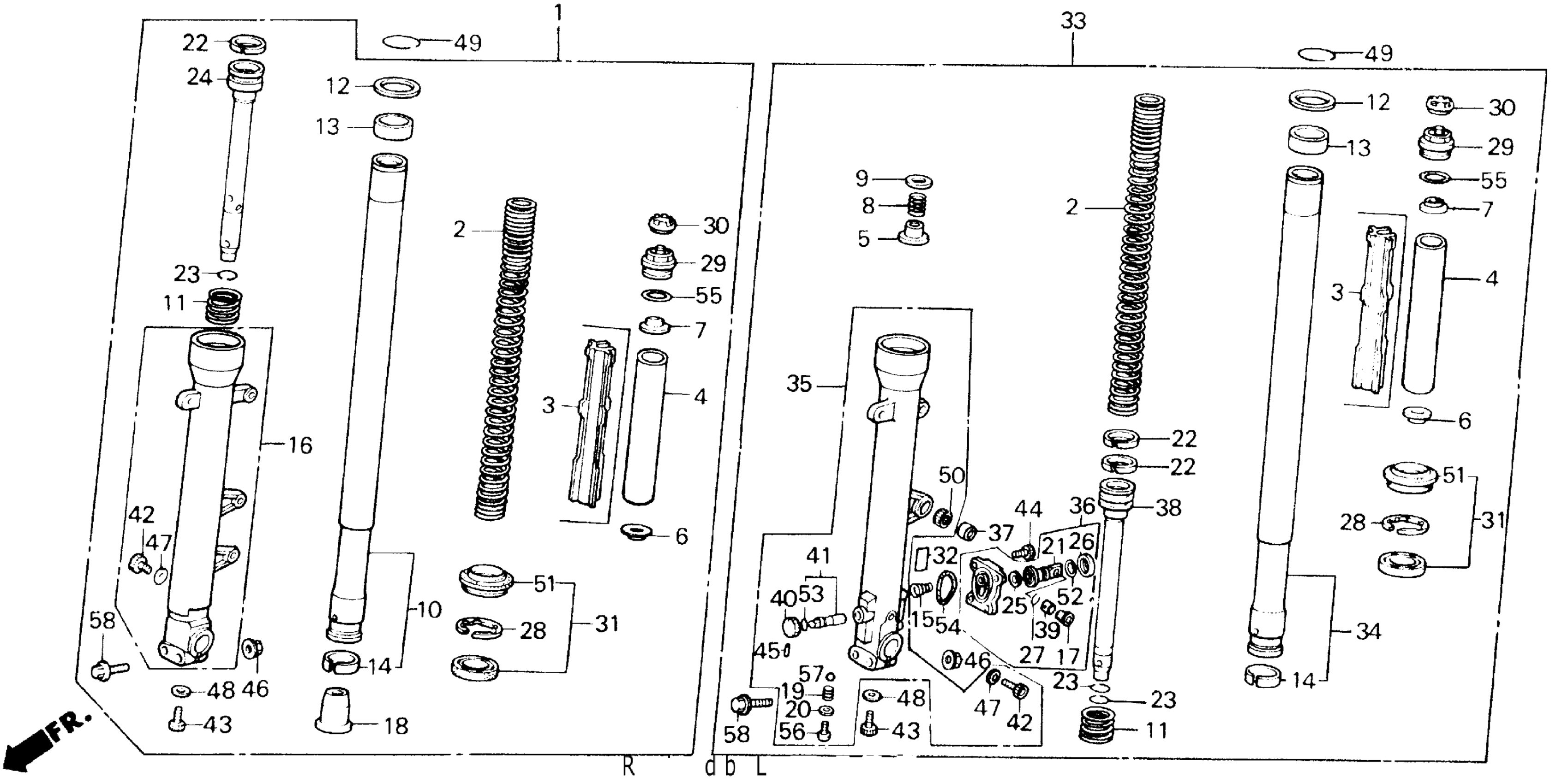

Honda VFR700F2A (87) INTERCEPTOR, JPN, VIN# JH2RC262-HM100001 TO JH2RC262-HM101781 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-ML7-691

Unavailable

2

SPRING, FR. FORK

51401-ML7-003

Unavailable

4

COLLAR, SPRING

51402-ML7-691

Unavailable

5

VALVE, OIL LOCK (NOT AVAILABLE)

51403-MA6-003

Unavailable

6

PLATE, SPRING JOINT

51403-ME4-003

$6.51

8

SPRING, OIL LOCK VALVE (NOT AVAILABLE)

51404-MA6-003

Unavailable

9

SEAT, SPRING

51405-MA6-003

Unavailable

10

PIPE, R. FR. FORK (NOT AVAILABLE)

51410-ML7-691

Unavailable

11

SPRING, FR. FORK REBOUND

51411-MG1-003

$6.16

12

RING, BACK-UP

51412-461-003

$6.56

13

BUSH, GUIDE

51414-MN4-003

Unavailable

13

BUSH, GUIDE This part replaces 51414-461-003.

51414-MN4-003

Unavailable

14

BUSH, SLIDER This part replaces 51415-ML7-003.

51415-KSE-A71

$7.99

14

BUSH, SLIDER This part replaces 51415-MN4-003.

51415-KSE-A71

$7.99

15

SPRING, PISTON

51418-ML7-003

Unavailable

16

CASE, R. (LOWER)

51421-ML7-691

Unavailable

17

COLLAR, PISTON

51423-MJ0-003

$10.56

18

PIECE, OIL LOCK

51432-ML7-003

Unavailable

19

SPRING, CLICK (NOT AVAILABLE)

51434-MC7-003

Unavailable

20

WASHER, SPECIAL (5MM)

51435-MC7-003

$2.65

21

PISTON

51436-ML7-003

Unavailable

22

RING, PISTON

51437-ML7-691

$7.20

23

RING, PISTON STOPPER

51439-340-300

Unavailable

24

PIPE, SEAT

51440-ML7-691

Unavailable

25

RUBBER, STOPPER (NOT AVAILABLE)

51441-ML7-003

Unavailable

26

BOOT, PISTON CASE

51442-MJ0-003

$8.73

27

RING, STOPPER

51445-MJ0-003

$2.36

28

RING, OIL SEAL STOPPER

51447-KR6-003

$3.52

29

BOLT ASSY., FR. FORK

51450-ML7-003

Unavailable

30

CAP, AIR VALVE

51457-KM4-003

Unavailable

31

SEAL SET, FR. FORK

51490-KAZ-003

$30.03

31

SEAL SET, FR. FORK This part replaces 51490-ML7-305.

51490-KAZ-003

$30.03

32

MARK, FR. FORK

51496-MC7-670

$4.65

33

CUSHION ASSY., L. FR. (SHOWA) This part replaces 51500-ML7-691.

51500-ML7-692

Unavailable

33

CUSHION ASSY., L. FR. (SHOWA)

51500-ML7-692

Unavailable

34

PIPE, L. FR. FORK (NOT AVAILABLE)

51510-ML7-691

Unavailable

35

CASE, L. (LOWER)

51521-ML7-691

Unavailable

36

CASE, PISTON This part replaces 51530-ML7-003.

51530-ML7-013

Unavailable

36

CASE, PISTON

51530-ML7-013

Unavailable

37

COLLAR, L. FR. CALIPER BRACKET

51536-ML7-000

$11.33

38

PIPE B, SEAT

51540-ML7-691

Unavailable

39

BUSH, RUBBER

51545-MJ0-003

$8.42

40

PLATE, ADJUSTER (NOT AVAILABLE)

51558-MK3-003

Unavailable

41

ROD SET, ADJUSTER

51591-MK3-305

Unavailable

42

BOLT, SOCKET (6X8)

90111-MK7-671

Unavailable

43

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.62

43

BOLT, SOCKET (8MM) This part replaces 90116-ML4-003.

90116-KV3-701

$3.62

44

BOLT, SOCKET (5X13.5)

90116-ML7-003

Unavailable

45

SCREW, SOCKET

90150-MK3-003

Unavailable

47

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

48

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

49

RING, SNAP

90602-KM9-000

Unavailable

50

BEARING, NEEDLE (1422)

91071-ML7-003

Unavailable

51

DUST SEAL

91254-KAZ-003

$15.27

51

DUST SEAL This part replaces 91254-ML7-003.

91254-KAZ-003

$15.27

52

O-RING

91304-ML7-003

Unavailable

53

O-RING

91310-MJ0-003

$2.38

54

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.51

55

O-RING (30.2X2.4)

91356-MJ6-741

$2.96

56

SCREW, PAN (5X6)

93500-05006-0G

$0.75

56

SCREW, PAN (5X6) This part replaces 93500-05006-1G.

93500-05006-0G

$0.75

57

BALL, STEEL (#5) (5/32)

96211-05000

$0.97

58

BOLT, FLANGE (8X50)

96300-08050-07

$2.17
