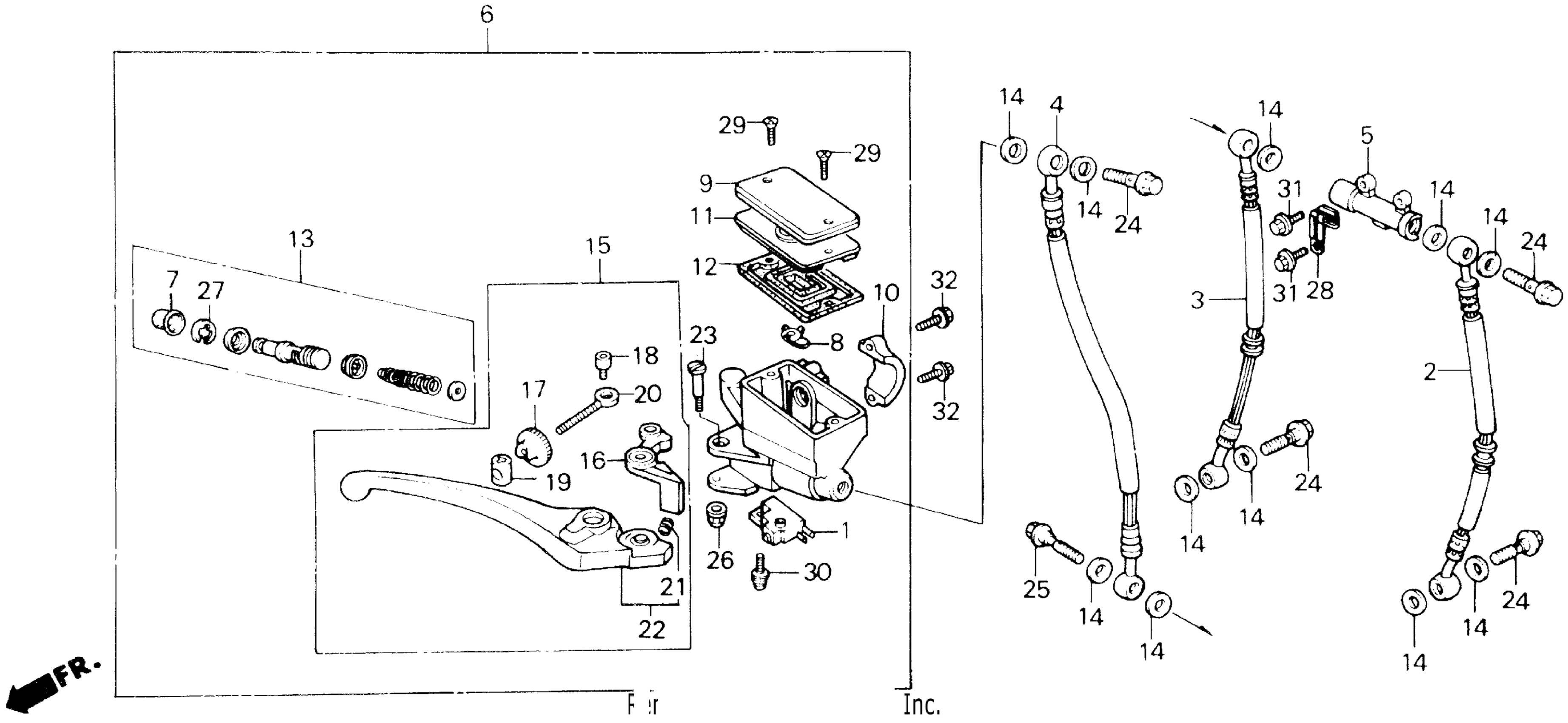

Honda VFR700F2A (87) INTERCEPTOR, JPN, VIN# JH2RC262-HM100001 TO JH2RC262-HM101781 FRONT BRAKE MASTER CYLINDER 87 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP This part replaces 35340-ML7-000.

35340-MM5-600

$22.13

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

2

HOSE, L. FR. BRAKE (NOT AVAILABLE)

45124-ML7-003

Unavailable

3

HOSE, R. FR. BRAKE

45125-ML7-003

Unavailable

4

HOSE B, FR. BRAKE

45126-ML7-691

Unavailable

5

JOINT (TWO-WAY)

45127-ML7-691

Unavailable

6

MASTER CYLINDER ASSY., FR. BRAKE

45500-ML7-691

Unavailable

7

BOOT

45504-410-003

$12.16

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP

45513-ML7-601

Unavailable

10

HOLDER, MASTER CYLINDER

45517-KR3-901

$20.92

11

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

12

DIAPHRAGM

45520-MA5-672

$18.13

13

MASTER CYLINDER SET

45530-MA5-671

$71.69

14

GASKET B, OIL BOLT

46472-568-000

$5.67

15

LEVER ASSY., R. HANDLE This part replaces 53170-KV0-006.

53170-MW0-006

$42.40

15

LEVER ASSY., R. HANDLE

53170-MW0-006

$42.40

16

KNOCKER, MASTER CYLINDER

53171-MJ4-701

$22.38

17

ADJUSTER, R. HANDLEBAR

53172-KV0-006

Unavailable

18

BOLT, LEVER SOCKET (5X5)

53177-KV0-006

Unavailable

19

JOINT, LEVER

53179-KV0-006

Unavailable

20

BOLT, ADJUSTING

53180-KV0-006

Unavailable

21

SPRING, HANDLEBAR

53181-KV0-006

$4.00

22

LEVER SET, R. HANDLE

53185-KV0-006

Unavailable

23

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

24

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

24

BOLT, OIL (10X22)

90145-KM3-751

$11.02

25

BOLT, OIL (10X34)

90145-MB0-010

Unavailable

26

NUT, CAP (6MM)

90201-415-000

$2.05

27

CIRCLIP

90651-MA5-671

$2.66

28

CLIP, WIRE

91406-KK4-620

Unavailable

29

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

29

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

30

SCREW-WASHER (4X12)

93893-04012-08

$1.49

30

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

31

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

31

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

32

BOLT, FLANGE (6X22) This part replaces 96000-06022-07.

96001-06022-07

$1.85

32

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
