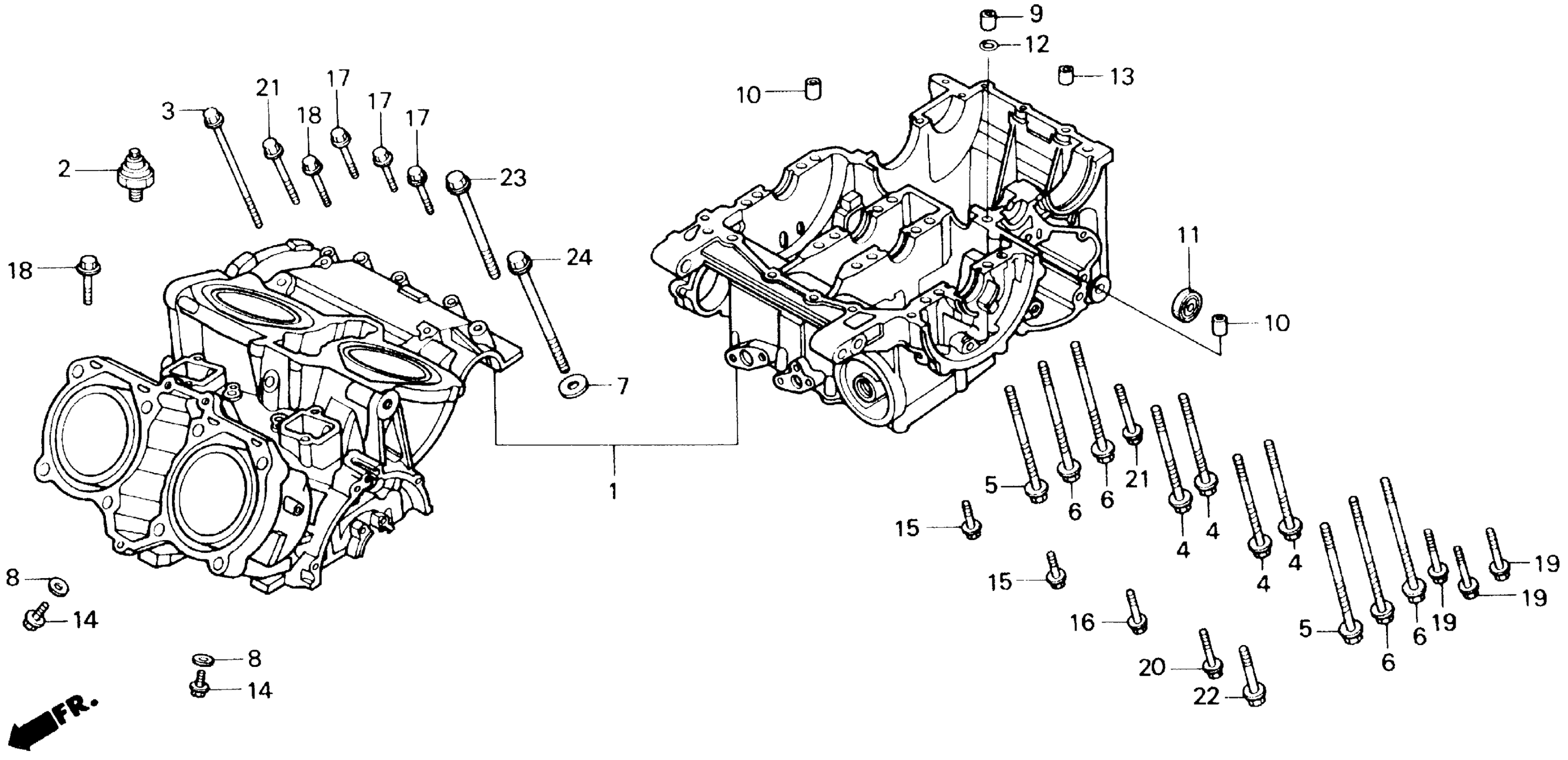

Honda VFR700F2A (87) INTERCEPTOR, JPN, VIN# JH2RC262-HM100001 TO JH2RC262-HM101781 CRANKCASE Diagram

CRANKCASE SET | Use up to Engine SN 2102724 This part replaces 11000-MK8-770.

11000-MK8-772

Unavailable

CRANKCASE SET | Use up to Engine SN 2102724 This part replaces 11000-MK8-771.

11000-MK8-772

Unavailable

CRANKCASE SET

11000-MK8-772

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

BOLT, FLANGE (6X96)

90003-PC9-000

$7.74

BOLT, UBS (9X88)

90014-ML7-000

$10.79

BOLT, UBS (9X108)

90016-ML7-000

$12.82

WASHER, SEALING (10MM)

90403-MG7-000

$3.26

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

ORIFICE (LOWER) (1.0)

90701-ML7-000

Unavailable

PIN, DOWEL (10X26)

90711-MF5-000

Unavailable

OIL SEAL (8X25X8) (ARAI) This part replaces 91204-MB0-003.

91204-MB0-013

$4.06

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X28)

95701-06028-07

$1.49

BOLT, FLANGE (6X35)

95701-06035-07

$1.80

BOLT, FLANGE (6X40)

95701-06040-07

$1.80

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (6X50)

95701-06050-07

$1.49

BOLT, FLANGE (6X55)

95701-06055-07

$1.80

BOLT, FLANGE (6X65)

95701-06065-07

$4.30

BOLT, FLANGE (8X45)

95701-08045-07

$2.17

BOLT, FLANGE (10X85)

95701-10085-07

Unavailable

BOLT, FLANGE (10X90)

95701-10090-07

$3.06
