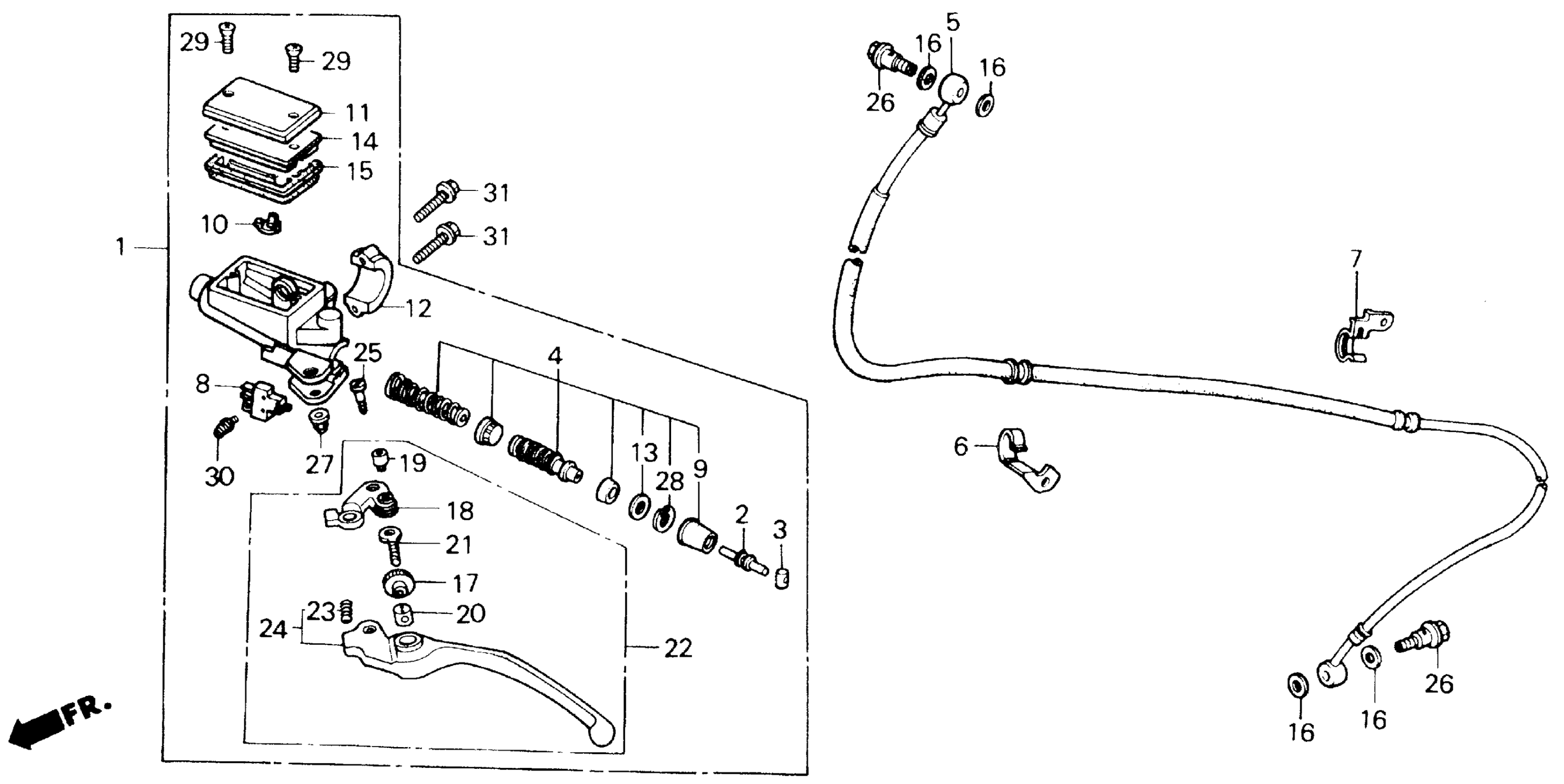

Honda VFR700F2A (87) INTERCEPTOR, JPN, VIN# JH2RC262-HM100001 TO JH2RC262-HM101781 CLUTCH MASTER CYLINDER 87 Diagram

MASTER CYLINDER ASSY., CLUTCH (NISSIN) (NOT AVAILABLE)

22880-ML7-691

Unavailable

ROD, PUSH

22884-MB0-006

$20.66

BUSH

22885-MB0-006

$12.95

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$74.32

HOSE, CLUTCH

22900-ML7-700

Unavailable

CLAMP A, CLUTCH PIPE

22902-ML7-000

Unavailable

CLAMP B, CLUTCH HOSE

22903-ML7-700

Unavailable

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP

45513-ML7-601

Unavailable

HOLDER, MASTER CYLINDER

45517-KR3-901

$20.92

PLATE, STOPPER

45518-MB0-006

$1.84

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

DIAPHRAGM

45520-MA5-672

$18.13

GASKET B, OIL BOLT

46472-568-000

$5.67

ADJUSTER, R. HANDLEBAR

53172-KV0-006

Unavailable

KNOCKER, CLUTCH

53172-MJ4-701

Unavailable

BOLT, LEVER SOCKET (5X5)

53177-KV0-006

Unavailable

JOINT, LEVER

53179-KV0-006

Unavailable

BOLT, ADJUSTING

53180-KV0-006

Unavailable

LEVER ASSY., L. HANDLE This part replaces 53180-ML7-691.

53180-ML7-692

Unavailable

LEVER ASSY., L. HANDLE

53180-ML7-692

Unavailable

SPRING, HANDLEBAR

53181-KV0-006

$4.00

LEVER SET, L. HANDLE

53188-ML7-305

Unavailable

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-KM3-751

$11.02

NUT, CAP (6MM)

90201-415-000

$2.05

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X22) This part replaces 96000-06022-07.

96001-06022-07

$1.85

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
