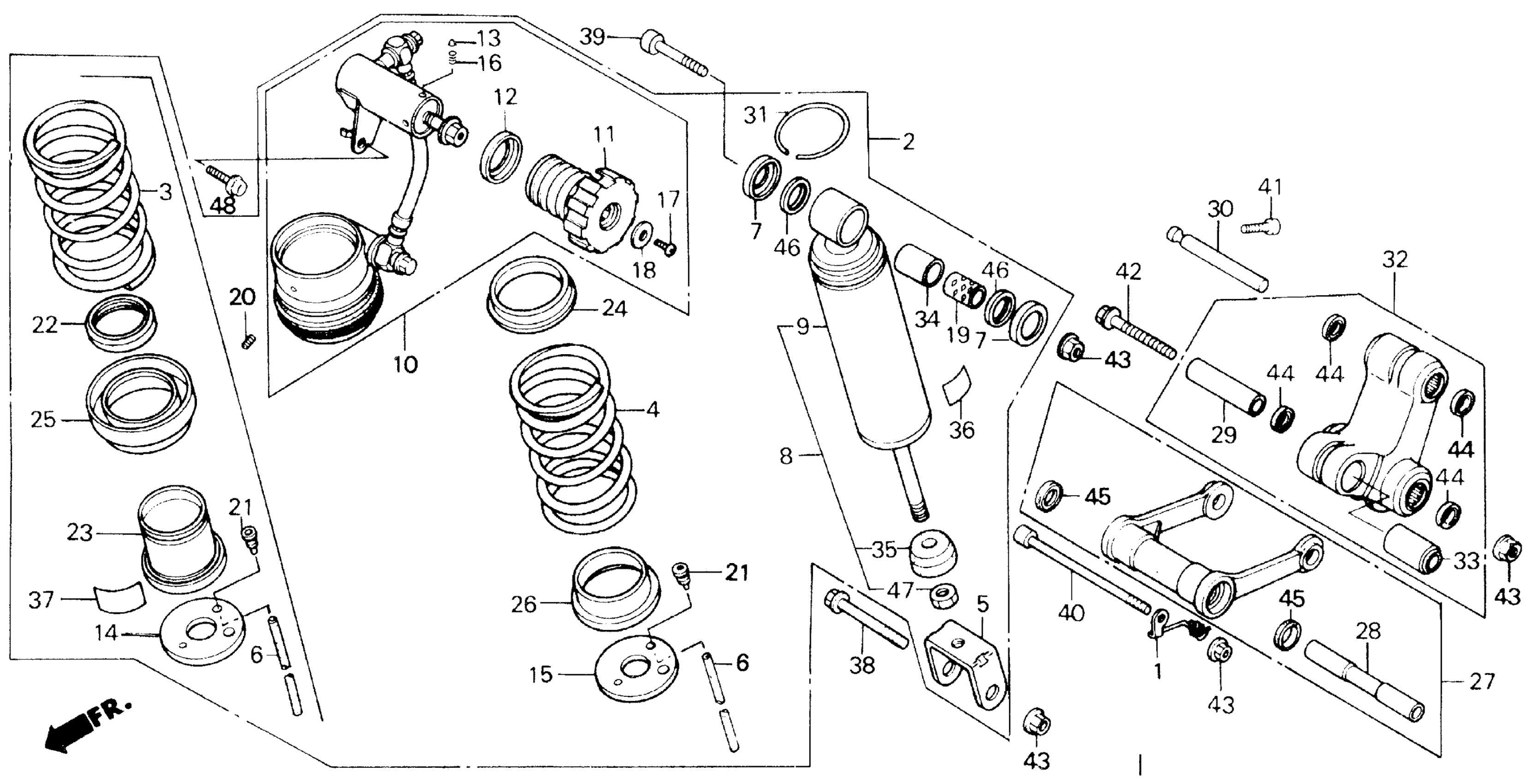

Honda VFR700F2A (86) INTERCEPTOR, JPN, VIN# JH2RC262-GM000001 TO JH2RC262-GM001000 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

GUIDE, TUBE

50731-ML7-000

Unavailable

2

SHOCK ABSORBER ASSY., RR. This part replaces 52400-ML7-003.

52400-ML7-013

Unavailable

2

SHOCK ABSORBER ASSY., RR.

52400-ML7-013

Unavailable

3

SPRING, RR. SHOCK ABSORBER

52401-ML7-003

Unavailable

5

METAL (LOWER)

52403-ML7-003

Unavailable

6

PIPE, DRAIN (NOT AVAILABLE)

52405-KB7-003

Unavailable

7

CAP, DUST SEAL

52406-KB7-003

$6.48

8

DAMPER, RR. (NOT AVAILABLE)

52410-ML7-003

Unavailable

10

ADJUSTER, SPRING

52420-ML7-003

Unavailable

11

PLATE, LEVELING

52421-ML7-003

Unavailable

12

DUST SEAL

52422-KM4-003

Unavailable

13

BALL, LEVELING PLATE (NOT AVAILABLE)

52423-KM4-003

Unavailable

14

STOPPER, SPRING SEAT

52424-ML7-003

Unavailable

16

SPRING, COIL

52425-KM4-003

Unavailable

17

SCREW, CROSS-RECESSED HEAD MACHINE

52426-KM4-003

$2.39

18

WASHER, PLAIN

52427-KM4-003

Unavailable

19

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

20

SCREW, SOCKET SETTING

52455-ML7-003

Unavailable

21

JOINT, PIPE

52456-KB7-003

Unavailable

22

DUST SEAL

52457-ML7-003

$11.46

23

GUIDE, SPRING

52458-ML7-003

Unavailable

25

SEAT, SPRING

52459-ML7-003

Unavailable

27

ROD ASSY., SHOCK CONNECTING (NOT AVAILABLE)

52460-ML7-000

Unavailable

28

COLLAR, CONNECTING ROD PIVOT

52462-ML7-000

Unavailable

29

COLLAR, CONNECTING ROD (LOWER)

52463-MB2-700

Unavailable

30

SHAFT, CUSHION ARM (UPPER)

52463-ML7-000

Unavailable

31

RING, STOPPER

52464-ML7-003

$4.72

32

ARM ASSY., SHOCK ABSORBER

52470-ML7-000

Unavailable

33

BUSH, SHOCK ABSORBER

52485-KE8-003

Unavailable

34

COLLAR, BUSH

52486-ML7-003

Unavailable

37

LABEL, RR. DAMPER CAUTION

87516-ML7-003

Unavailable

38

BOLT, FLANGE (10X62)

90101-MBB-000

$4.04

38

BOLT, FLANGE (10X62) This part replaces 90109-KE8-003.

90101-MBB-000

$4.04

39

BOLT, SOCKET (10X55)

90110-ML7-000

$5.43

40

BOLT, SOCKET (10X148)

90111-ML7-000

Unavailable

41

BOLT, SOCKET (8X32)

90116-KE7-000

Unavailable

42

BOLT, FLANGE (10X123)

90181-MB2-000

Unavailable

43

NUT, U (10MM)

90304-GE8-003

$3.67

44

DUST SEAL, CONNECTING ROD PIVOT

91262-MB2-005

$3.83

45

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

45

OIL SEAL (17X27X5) (KOYO) This part replaces 91262-MG7-005.

91202-HC5-005

$3.56

46

DUST SEAL B

91351-KB7-003

$3.49

48

BOLT, FLANGE (8X20)

96300-08020-08

Unavailable
