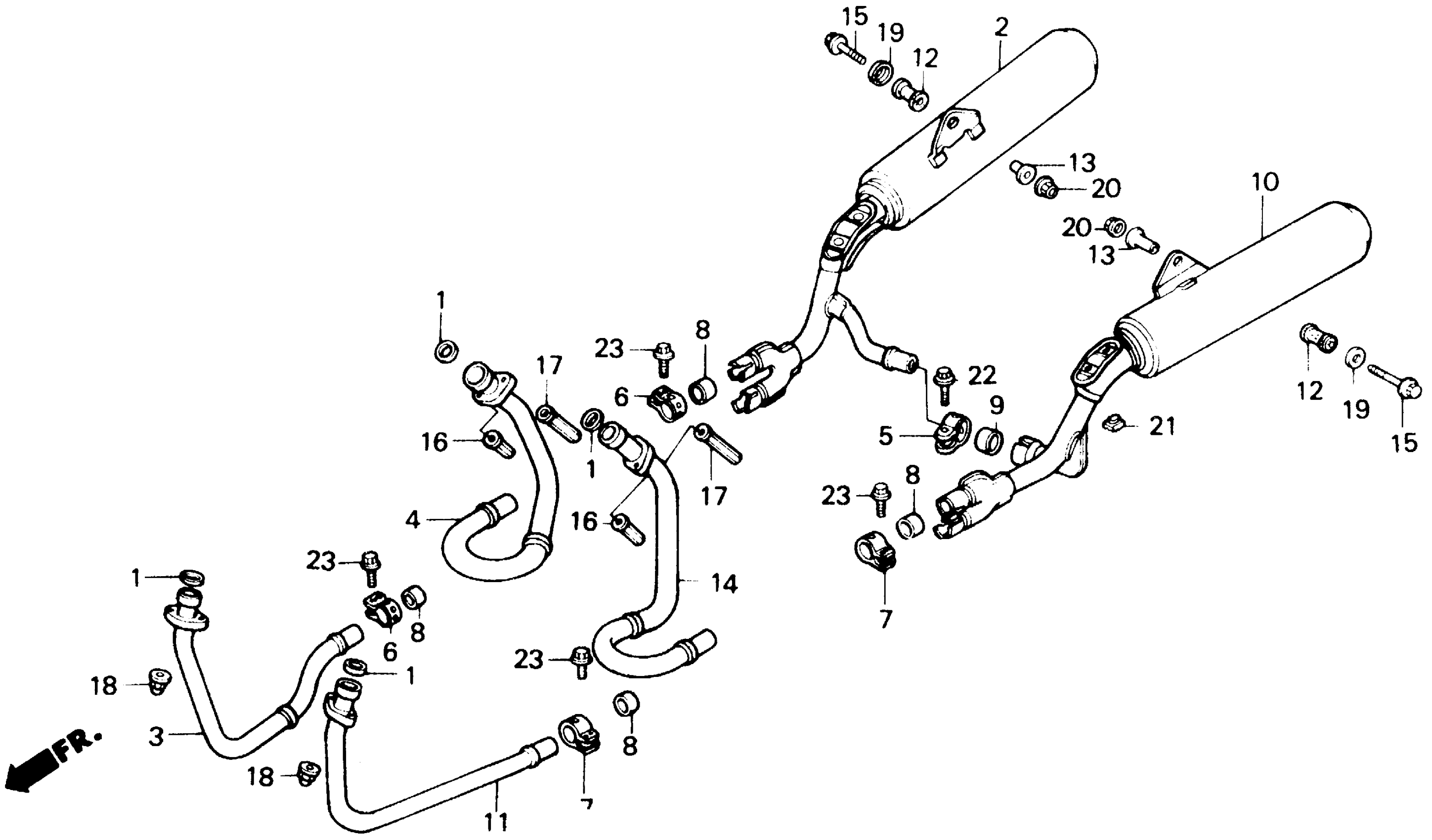

Honda VFR700F2A (86) INTERCEPTOR, JPN, VIN# JH2RC262-GM000001 TO JH2RC262-GM001000 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN5-650

$3.77

1

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

2

MUFFLER, R. This part replaces 18310-ML7-671.

18310-ML7-405

Unavailable

3

PIPE, R. FR. EX.

18320-ML7-601

Unavailable

4

PIPE, R. RR. EX. This part replaces 18370-ML7-601.

18370-ML7-701

Unavailable

4

PIPE, R. RR. EX.

18370-ML7-701

Unavailable

5

BAND, L. MUFFLER This part replaces 18371-ML7-000.

18374-KE8-000

$29.26

5

BAND, R. MUFFLER

18373-KE8-000

$28.64

5

BAND, L. MUFFLER This part replaces 18373-MG7-701.

18374-KE8-000

$29.26

6

BAND, R. MUFFLER (NOT AVAILABLE)

18373-ML7-601

Unavailable

7

BAND, L. MUFFLER

18374-ML7-601

Unavailable

8

GASKET, MUFFLER

18391-MN5-650

$20.61

8

GASKET, MUFFLER This part replaces 18391-310-000.

18391-MN5-650

$20.61

8

GASKET, MUFFLER This part replaces 18391-310-306.

18391-MN5-650

$20.61

9

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$13.66

9

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$13.66

9

GASKET, MUFFLER

18392-MK4-000

$13.66

10

MUFFLER, L. (NOT AVAILABLE)

18410-ML7-671

Unavailable

11

PIPE, L. FR. EX. This part replaces 18420-ML7-601.

18420-ML7-701

Unavailable

11

PIPE, L. FR. EX.

18420-ML7-701

Unavailable

12

RUBBER, MUFFLER SETTING

18421-MB0-000

$6.34

13

COLLAR, MUFFLER SETTING

18422-MB0-000

$6.61

14

PIPE, L. RR. EX. This part replaces 18470-ML7-601.

18470-ML7-701

Unavailable

14

PIPE, L. RR. EX.

18470-ML7-701

Unavailable

15

BOLT, SPECIAL FLANGE (8X45)

90158-MB1-000

$5.13

16

NUT, SPECIAL (6MM)

90300-ML7-000

Unavailable

17

NUT, SPECIAL (6MM)

90301-ML7-000

Unavailable

18

NUT, CAP (6MM)

90304-438-000

$7.14

19

WASHER, SPECIAL (8MM)

90557-MB0-000

Unavailable

20

NUT, FLANGE (8MM)

94050-08000

$1.49

21

RUBBER A, STAND STOPPER

95011-61000

$1.49

22

BOLT, FLANGE (8X35) This part replaces 95700-08035-07.

95701-08035-07

$1.49

22

BOLT, FLANGE (8X35)

95701-08035-07

$1.49

23

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

23

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
