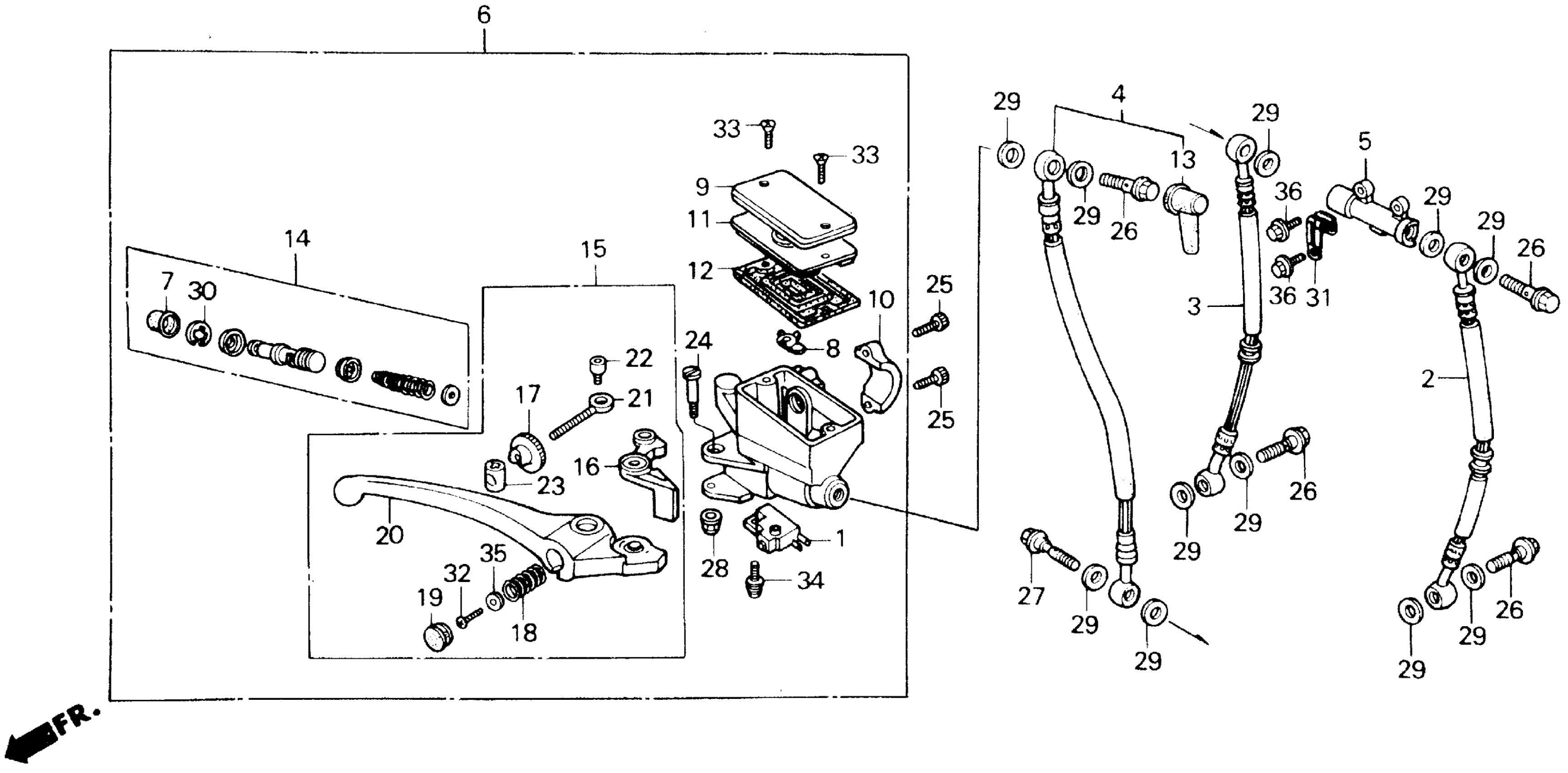

Honda VFR700F2A (86) INTERCEPTOR, JPN, VIN# JH2RC262-GM000001 TO JH2RC262-GM001000 FRONT BRAKE MASTER CYLINDER 86 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP This part replaces 35340-ML7-000.

35340-MM5-600

$22.13

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

2

HOSE, L. FR. BRAKE (NOT AVAILABLE)

45124-ML7-003

Unavailable

3

HOSE, R. FR. BRAKE

45125-ML7-003

Unavailable

4

HOSE B, FR. BRAKE

45126-ML7-003

Unavailable

5

JOINT (TWO-WAY) (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

6

SUB ASSY,FR,M/C This part replaces 45500-ML7-601.

45510-ML7-406

Unavailable

7

BOOT

45504-410-003

$12.16

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP

45513-ML7-601

Unavailable

10

HOLDER, MASTER CYLINDER

45517-KR3-901

$20.92

11

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

12

DIAPHRAGM

45520-MA5-672

$18.13

13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

14

MASTER CYLINDER SET

45530-MA5-671

$71.69

15

LEVER, R. HANDLEBAR (NOT AVAILABLE)

53170-MJ4-701

Unavailable

16

KNOCKER, MASTER CYLINDER

53171-MJ4-701

$22.38

17

ADJUSTER, R. CONTROL LEVER

53172-MJ4-006

Unavailable

18

SPRING, CONTROL LEVER

53173-MJ4-006

Unavailable

19

CAP, CONTROL LEVER

53174-MJ4-006

Unavailable

20

CONTROL LEVER, R. HANDLEBAR

53175-MJ4-701

Unavailable

21

BOLT, ADJUSTING

53176-MJ4-016

Unavailable

22

BOLT, CONTROL LEVER SOCKET (5X5) (NOT AVAILABLE)

53177-MJ4-006

Unavailable

23

JOINT, CONTROL LEVER

53179-MJ4-016

Unavailable

24

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

25

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

26

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

26

BOLT, OIL (10X22)

90145-KM3-751

$11.02

27

BOLT, OIL (10X34)

90145-MB0-010

Unavailable

28

NUT, CAP (6MM)

90201-415-000

$2.05

29

WASHER, OIL BOLT

90545-300-000

$3.99

30

CIRCLIP

90651-MA5-671

$2.66

31

CLIP, WIRE

91406-KK4-620

Unavailable

32

SCREW, PAN (3X6)

93500-03006-0A

$1.49

33

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

33

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

34

SCREW-WASHER (4X12)

93893-04012-08

$1.49

34

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

35

WASHER, PLAIN (3MM)

94101-03800

$1.49

36

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

36

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
