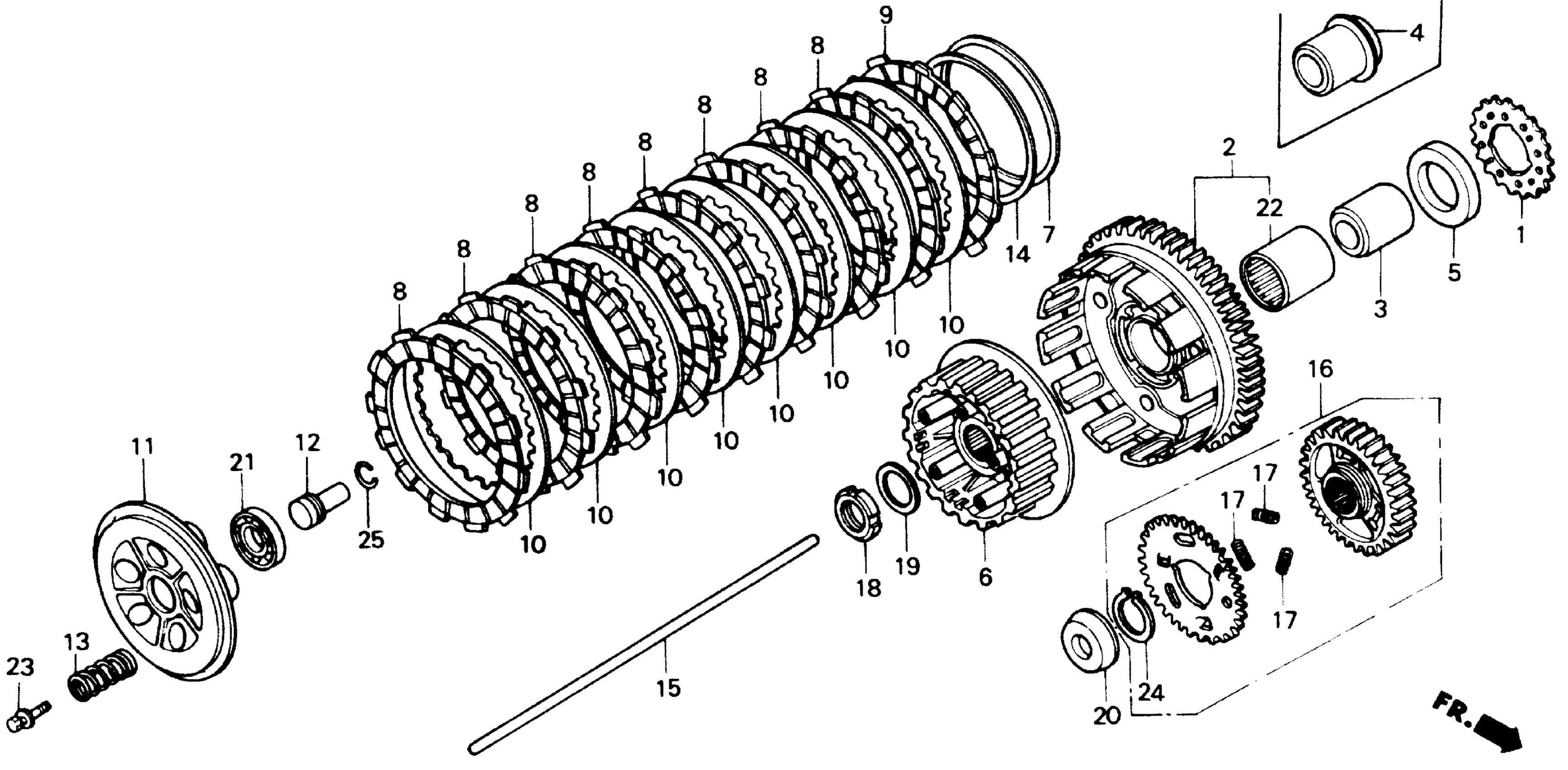

Honda VFR700F2A (86) INTERCEPTOR, JPN, VIN# JH2RC262-GM000001 TO JH2RC262-GM001000 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE

15131-ML7-000

$36.48

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MK8-670

Unavailable

4

GUIDE, CLUTCH (OUTER)

22116-ML7-000

Unavailable

6

CENTER, CLUTCH This part replaces 22120-ML7-000.

22120-ML7-010

Unavailable

6

CENTER, CLUTCH

22120-ML7-010

Unavailable

7

SEAT, JUDDER SPRING

22125-ML7-000

$9.59

8

DISK, CLUTCH FRICTION This part replaces 22201-KG0-980.

22201-MS6-620

$14.71

8

DISK, CLUTCH FRICTION This part replaces 22201-KM4-000.

22201-MS6-620

$14.71

8

DISK, CLUTCH FRICTION

22201-MS6-620

$14.71

9

DISK B, CLUTCH FRICTION This part replaces 22202-ML4-610.

22202-ML4-611

$16.27

9

DISK B, CLUTCH FRICTION

22202-ML4-611

$16.27

10

PLATE, CLUTCH

22321-ML7-000

$12.58

10

PLATE, CLUTCH

22321-MR7-000

$14.96

11

PLATE, CLUTCH PRESSURE

22350-ML7-000

Unavailable

12

PIECE, CLUTCH JOINT

22366-KE8-000

Unavailable

13

SPRING, CLUTCH

22401-KZ3-000

$4.60

13

SPRING, CLUTCH This part replaces 22401-ML7-000.

22401-KZ3-000

$4.60

14

SPRING, JUDDER

22402-ML7-000

Unavailable

15

ROD, CLUTCH LIFTER

22850-ML7-000

Unavailable

16

GEAR ASSY., PRIMARY DRIVE

23110-MK8-670

Unavailable

17

SPRING, PRIMARY DAMPER

23115-MG8-300

Unavailable

18

NUT, LOCK (22MM) This part replaces 90231-MK7-670.

90231-MZ7-000

$10.37

19

WASHER, SPRING (22MM)

90432-MB0-010

$9.04

20

GUIDE, PRIMARY DRIVE GEAR

90510-ML7-003

Unavailable

21

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$13.83

22

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$78.39

23

BOLT-WASHER (6X20)

93404-06020-08

$1.48

24

CIRCLIP (OUTER) (32MM)

94510-32000

$1.61

25

CLIP, PISTON PIN (15MM)

94601-15000

$0.93
