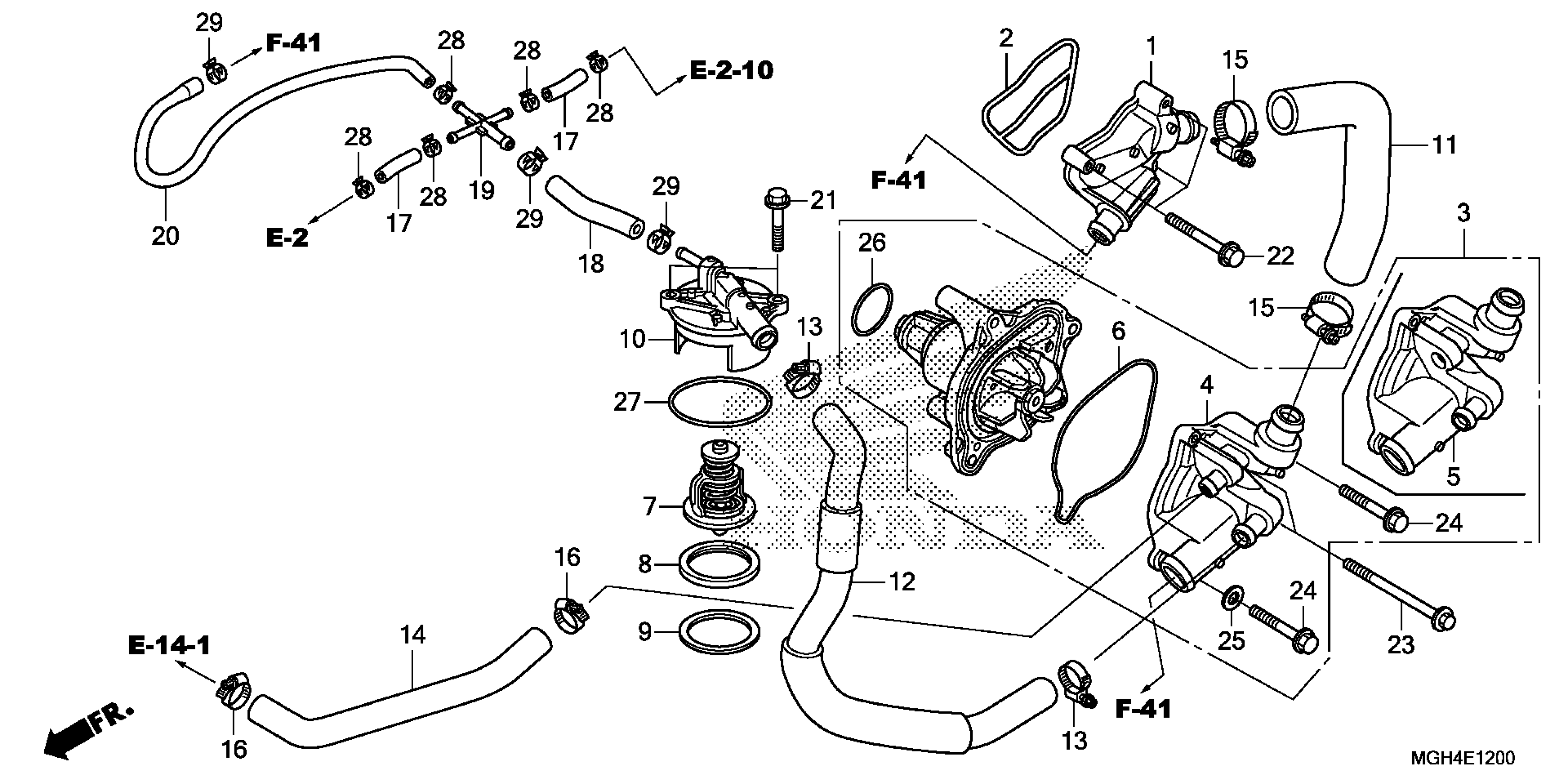

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 WATER PUMP Diagram

#

Description
Price

1

JOINT, WATER

19063-MGE-000

$58.41

2

GASKET, WATER JOINT

19064-MGE-000

$7.35

3

WATER PUMP ASSY.

19200-MGE-000

$271.53

4

COVER, WATER PUMP

19220-MGE-000

$103.35

6

GASKET, WATER PUMP COVER

19226-MGE-000

$8.18

7

THERMOSTAT

19300-MAT-761

$50.07

8

RUBBER, THERMOSTAT

19305-MCA-A00

$8.08

9

WASHER (48X57.4X1.6)

19306-MGE-000

$4.87

10

COVER, THERMOSTAT

19315-MGE-000

$65.68

11

HOSE A, WATER

19501-MGE-000

$20.91

12

HOSE, WATER (LOWER)

19503-MGE-000

$46.51

13

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$9.48

14

HOSE A, OIL COOLER WATER

19504-MGE-000

$11.06

15

BAND, WATER HOSE

19504-ZG8-000

$5.56

16

CLAMP A, WATER HOSE

19505-KS6-700

Unavailable

17

TUBE A, WATER BREATHER

19515-MGE-000

$3.06

18

TUBE, B WATER BREATHER

19516-MGE-000

$4.00

19

JOINT, WATER HOSE FOUR-WAY

19518-MGE-000

$5.04

20

TUBE, WATER

19519-MGH-640

$12.29

21

BOLT, FLANGE (6X22)

90016-GHB-660

$2.01

22

BOLT, FLANGE (6X32)

90016-GHB-690

$2.01

23

BOLT, FLANGE (6X65)

90016-GHB-760

$2.31

24

BOLT, FLANGE (6X25) (CT200)

90021-MGE-000

$1.78

25

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

26

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.71

27

O-RING (63.5X1.9)

91315-MGE-000

$3.13

28

CLAMP, TUBE (D10.5)

95002-41050-08

$2.31

29

CLAMP, TUBE (D12)

95002-41200-08

$2.31
