Description

Price

1

RING, SEAL (28MM)

22815-MGE-D01

$3.77

2

MAINSHAFT (INNER)

23210-MGE-D00

$245.31

3

PLATE, BEARING SETTING

23213-MGE-000

$5.13

4

MAINSHAFT (OUTER) (20T)

23231-MGE-J00

$308.48

5

GEAR, MAINSHAFT FIRST (16T)

23411-MGH-D20

$64.84

6

GEAR, MAINSHAFT THIRD (23T)

23451-MGH-D20

$123.59

7

GEAR, MAINSHAFT FOURTH (28T)

23471-MGH-D20

$129.74

8

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$30.92

9

GEAR, MAINSHAFT FIFTH (30T)

23491-MGH-D20

$125.62

10

GEAR, MAINSHAFT SIXTH (35T)

23511-MGH-D20

$125.62

11

COLLAR (40X43X12.5)

23512-MGE-D00

$14.79

12

NUT, LOCK (22MM)

90231-HN8-A60

$3.78

13

WASHER (22X38X2.5)

90401-MGE-D00

$5.16

14

WASHER (40.2X51X1)

90411-MGE-D00

$11.79

15

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

16

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

17

WASHER (28.5X32X1.5)

90463-MGE-D00

$7.95

18

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

19

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

20

WASHER, SPLINE (40MM)

90493-MGE-D00

$8.07

21

CLIP (33.2MM)

90601-MGE-D00

$4.75

22

SET-RING (48MM)

90602-MGE-000

$5.49

23

COLLAR, NEEDLE BEARING

90603-MGE-D00

$24.38

24

CIRCLIP (28MM)

90603-MN4-000

$4.11

25

COLLAR B, NEEDLE BEARING

90604-MGE-D00

$7.79

26

CIRCLIP (40MM)

90605-MGE-D00

$6.93

27

BEARING, SPECIAL BALL (5204S)

91002-MGE-003

$23.31

28

BEARING SET, RADIAL BALL

91012-MGE-D01

$52.28

29

BEARING, NEEDLE (28X32X27.2) (THOMPSON)

91021-ML3-003

$17.87

30

O-RING (35.2X1.9)

91305-PY4-000

$3.54

31

O-RING (23.3X1.9)

91306-MGE-D01

$1.93

32

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

33

BOLT, FLANGE (6X28)

95801-06028-00

$1.73

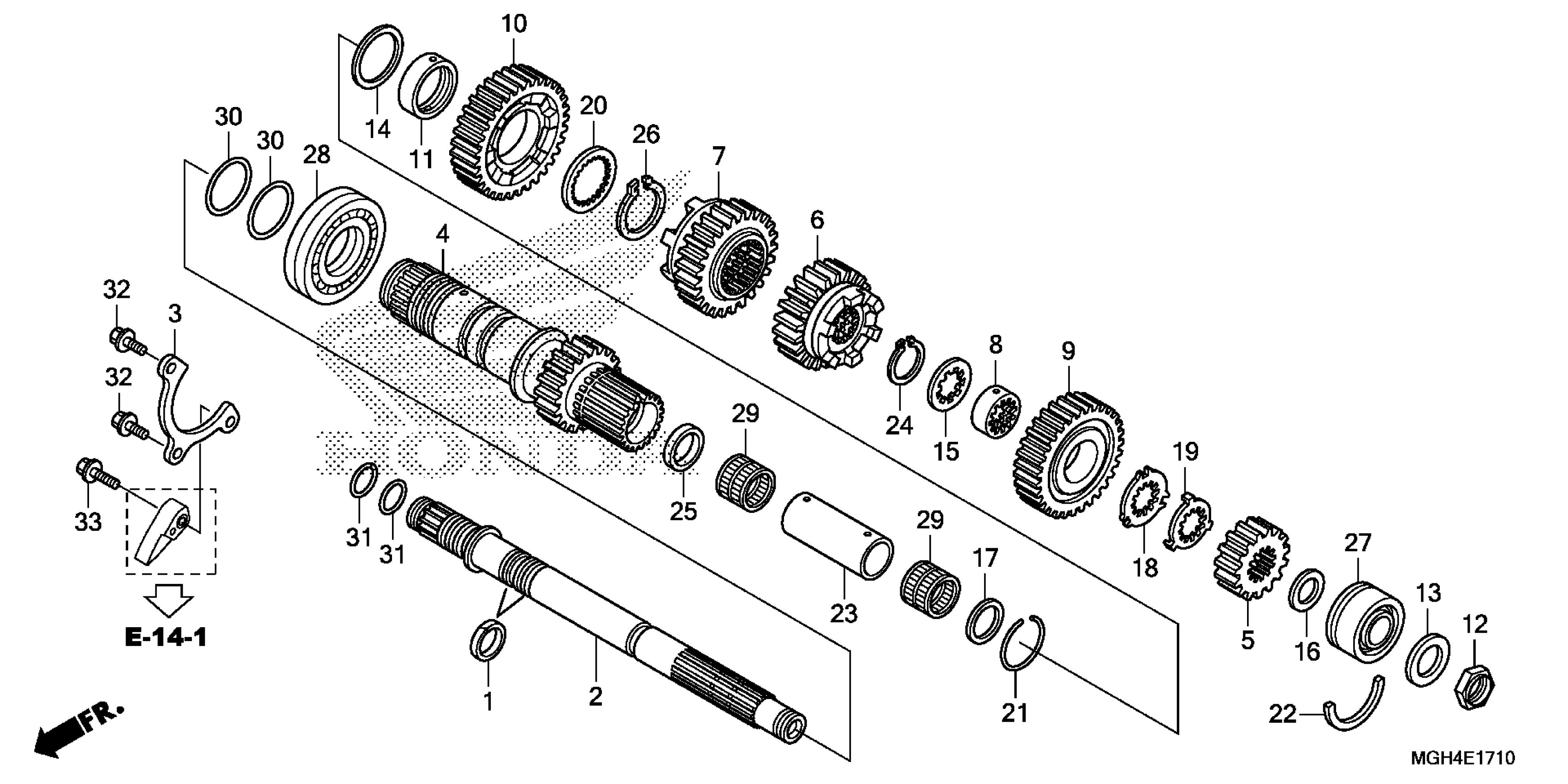

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 TRANSMISSION (MAINSHAFT) Diagram
