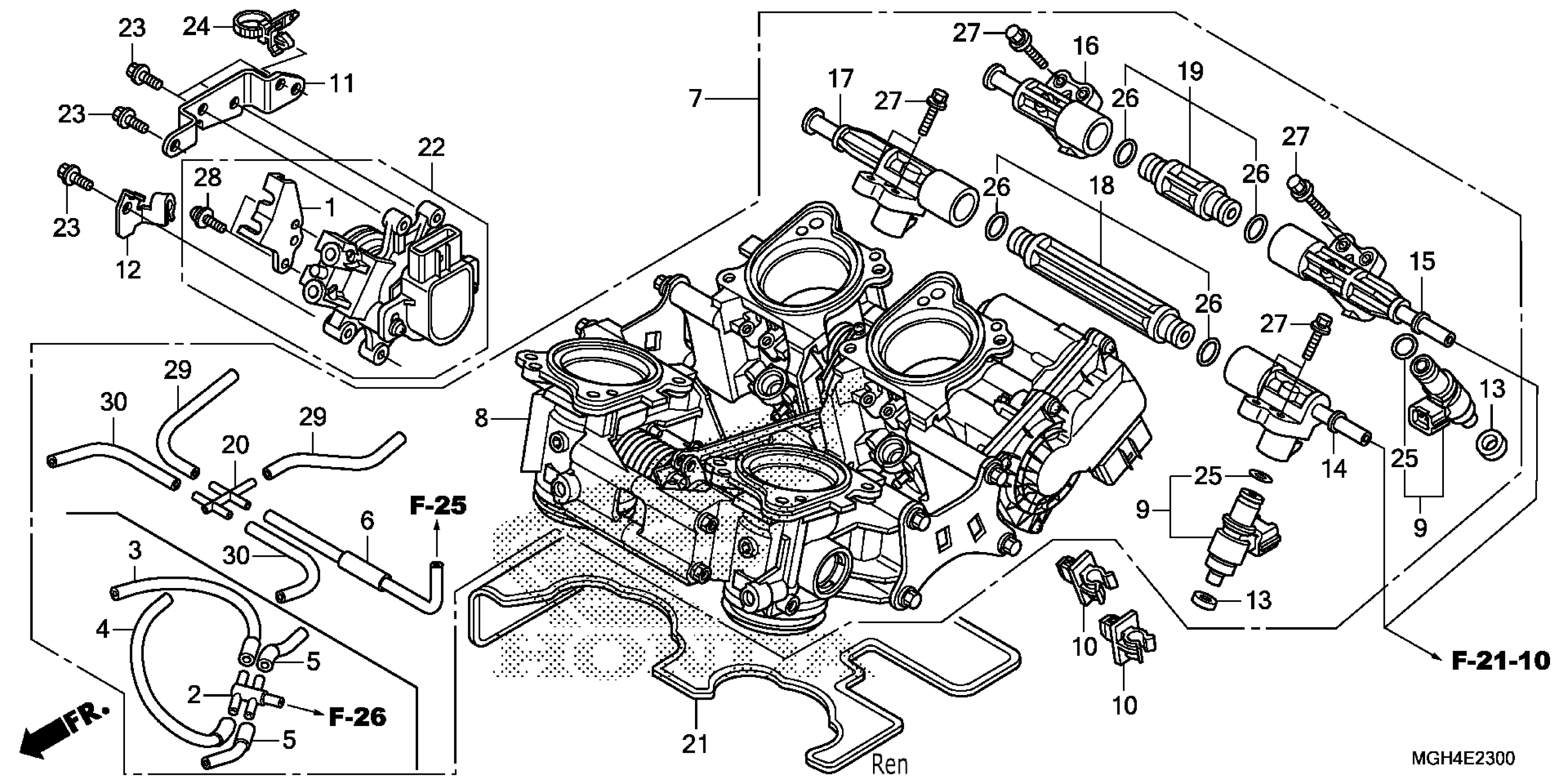

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 THROTTLE BODY Diagram

STAY, WIRE

16169-MFL-003

$15.05

T-JOINT

16180-ME5-761

$31.64

TUBE

16197-MCZ-771

$5.61

TUBE

16197-MFJ-L01

$6.51

TUBE (3.5X50)

16197-MGE-771

$6.57

TUBE (3.5X190)

16198-MGE-003

$5.77

BODY ASSY., THROTTLE (GNH0B A)

16400-MGE-773

$2,499.41

BODY ASSY., THROTTLE

16402-MGE-771

$2,143.54

INJECTOR ASSY., FUEL

16450-MFL-003

$134.57

CLIP, HOSE (D15.8)

16453-MGE-003

$2.34

STAY, APS UNIT

16454-MGE-000

$8.43

STAY, WATER HOSE CLAMP

16455-MGE-000

$5.08

SEAL RING, INJECTOR

16472-MCW-000

$2.39

PIPE, FUEL (#1)

16610-MGE-003

$30.64

PIPE, FUEL (#2)

16620-MGE-003

$32.02

PIPE, FUEL (#3)

16630-MGE-003

$30.67

PIPE, FUEL (#4)

16640-MGE-003

$30.67

JOINT SET, FR. FUEL

16650-MGE-003

$48.44

JOINT SET, RR. FUEL

16660-MGE-003

$40.41

JOINT, FIVE-WAY

17201-MCJ-003

$8.61

RUBBER, CYLINDER HEAD

17650-MGE-700

$50.03

SENSOR UNIT, ACCELERATOR POSITION

37971-MGE-672

$220.44

BOLT, FLANGE (6X12)

90012-GHB-610

$2.05

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.47

O-RING (7.8X1.9)

91301-P7A-004

$3.35

O-RING (7.47X3.6)

91301-PLC-000

$3.11

BOLT-WASHER (5X25)

93403-05025-00

$1.49

SCREW-WASHER (5X12)

93892-05012-00

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X70)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (3.5X1000) (3.5X90)

95005-35001-20M

$9.67
