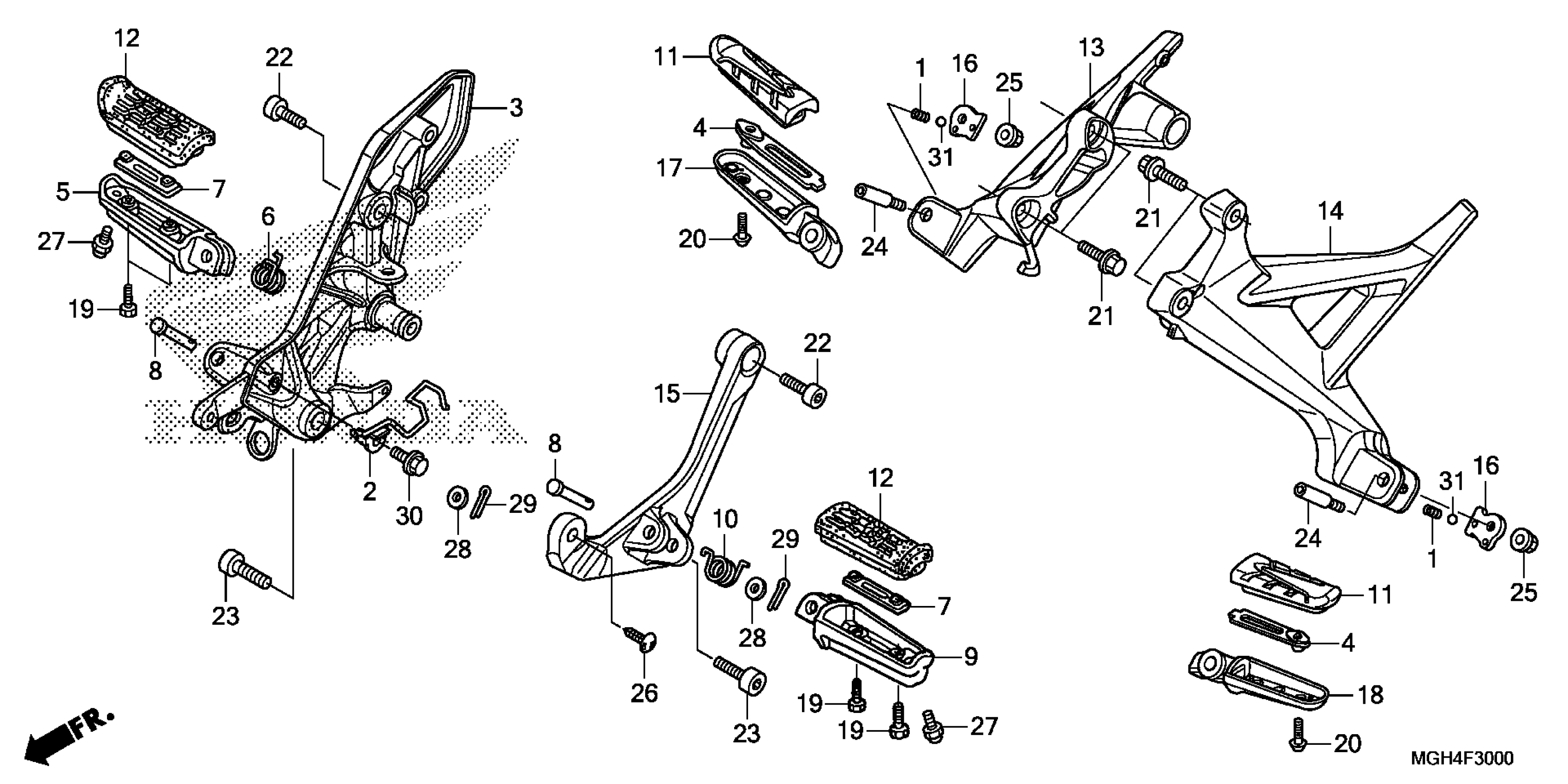

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

GUIDE, HARNESS

32109-MGH-640

$5.85

3

HOLDER, R. MAIN STEP

50600-MGH-640

$212.03

4

PLATE, STEP SETTING

50609-MGE-000

$4.81

5

ARM, R. STEP (COO)

50612-KYJ-305

$23.78

5

ARM, R. STEP (COO) This part replaces 50612-MM5-000.

50612-KYJ-305

$23.78

6

SPRING, R. STEP RETURN

50617-445-840

$5.20

7

PLATE, STEP SETTING

50619-MM5-000

$7.56

8

PIN, STEP BAR

50639-MFL-D20

$2.80

9

ARM, L. STEP (COO)

50642-KYJ-305

$23.78

9

ARM, L. STEP (COO) This part replaces 50642-MM5-000.

50642-KYJ-305

$23.78

10

SPRING, L. STEP RETURN

50644-445-840

$5.20

11

RUBBER, MAIN STEP (PILLION)

50661-MGE-000

Unavailable

11

RUBBER, MAIN STEP (PILLION) This part replaces 50661-MGE-305.

50661-MGE-000

Unavailable

12

RUBBER, STEP

50661-MV9-000

$13.17

13

HOLDER, R. PILLION STEP

50671-MGH-N00

$153.29

14

HOLDER, L. PILLION STEP

50681-MGH-N00

$153.29

15

HOLDER, L. MAIN STEP

50700-MGH-640

$156.56

16

PLATE, PILLION STEP CLICK

50718-MGE-000

Unavailable

17

ARM, R. PILLION STEP

50720-MGH-N01

$63.24

18

ARM, L. PILLION STEP

50730-MGH-N01

$63.24

19

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.52

20

BOLT, SPECIAL (5X14)

90118-MGE-000

$3.22

21

BOLT, FLANGE (8X30)

90136-MGH-640

$2.53

22

BOLT, SOCKET (8X22)

90157-MGE-000

$3.87

23

BOLT, SOCKET (10X22)

90158-MGE-000

$4.35

24

BOLT, SPECIAL (6X16)

90167-MGE-010

Unavailable

25

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$3.89

26

CLIP, BRUSH

90656-MGH-641

$2.06

27

BOLT, CAP (8X10)

92501-08010-0B

$2.03

28

WASHER, PLAIN (8MM)

94102-08200

$0.79

29

PIN, SPLIT (2.0)

94201-20152

$0.93

30

BOLT, FLANGE (6X10)

96001-06010-00

$1.60

31

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
