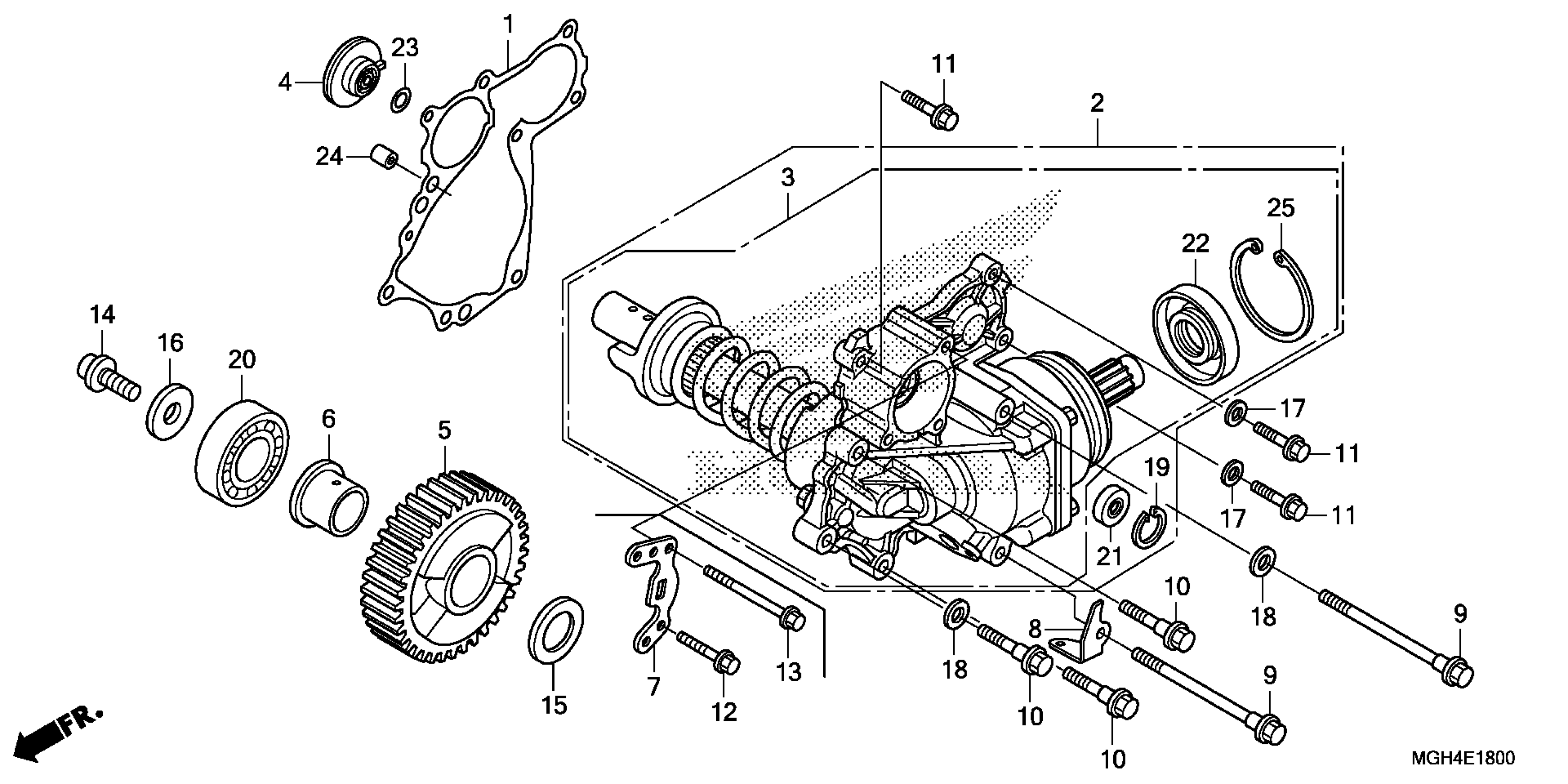

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 SIDE GEAR CASE Diagram

GASKET, SIDE GEAR CASE

11663-MGE-003

$22.75

CASE ASSY., SIDE GEAR

21100-MGE-D00

$2,525.49

GEAR, FINAL DRIVEN (39T)

23541-MGE-D00

$123.05

COLLAR (25X30X28.6)

23733-MGE-000

$32.25

STAY, HARNESS CLIP

32156-MGE-D01

$4.46

BOLT, FLANGE (8X95)

90005-MGE-010

$5.02

BOLT, UBS (8X40)

90006-MGE-010

$5.39

BOLT, FLANGE (6X28)

90016-GHB-680

$2.28

BOLT, FLANGE (6X35)

90016-GHB-700

$2.18

BOLT, FLANGE (6X65)

90016-GHB-760

$2.49

BOLT, SPECIAL (10MM)

90037-ME9-000

$7.25

WASHER, SPECIAL (25X40.4X1.2)

90403-MGE-000

$5.15

WASHER (10.5X36X4)

90414-MGE-D00

$3.51

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER, SEALING (8MM)

90442-028-000

$1.77

BEARING, BALL (6305)

91005-MGE-003

$24.05

OIL SEAL (28X66X8)

91205-MGE-003

$10.93

PIN, DOWEL (10X12)

94302-10120

$1.49

CIRCLIP (INNER) (65MM)

94520-65120

$3.05
