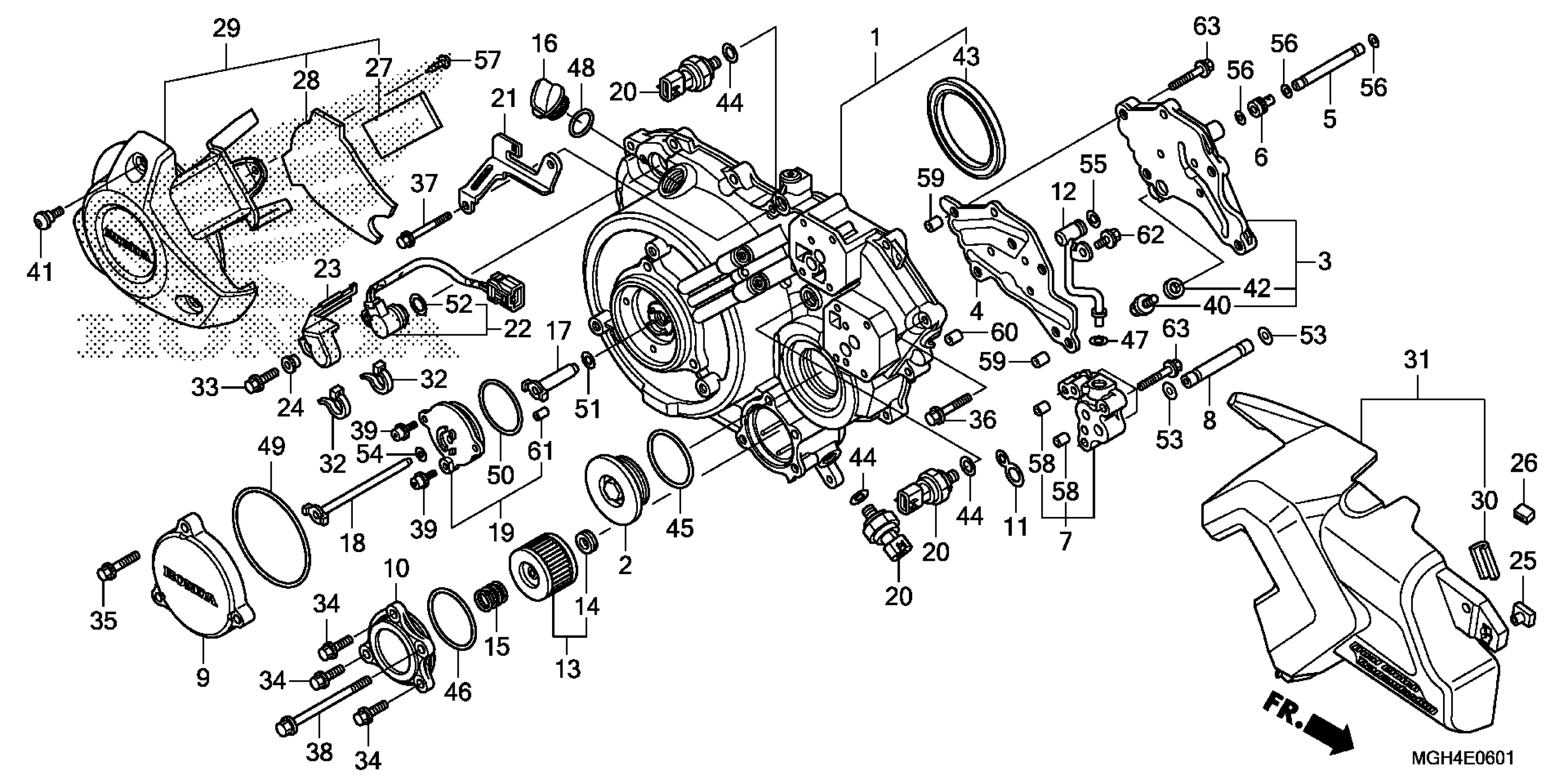

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 RIGHT CRANKCASE COVER (2) Diagram

#

Description
Price

1

COVER ASSY., R.

11300-MGE-D00

$381.09

2

CAP (45MM)

11332-MBZ-D00

$17.14

3

COVER, R. (INNER)

11360-MGE-D00

$47.61

4

PLATE, COVER (INNER)

11362-MGE-D01

$17.22

5

PIPE, COVER (INNER)

11366-MGE-D00

$15.36

6

ORIFICE (1.1MM)

11367-MGE-D00

$7.83

7

BASE, OIL PASSAGE PIPE

11370-MGE-D00

$46.97

8

PIPE, OIL FILTER

11373-MGE-D00

$23.77

9

CAP, R. COVER

11375-MGE-D00

$59.07

10

COVER, OIL FILTER

11376-MGE-D00

$77.84

11

SEAL, RUBBER

11379-MGE-D01

$5.57

12

PIPE, OIL PASSAGE

11390-MGE-D00

$86.61

13

ELEMENT, OIL FILTER

15412-MGE-D01

$9.04

14

RUBBER, FILTER

15413-MC8-000

$3.12

15

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$3.95

16

CAP, OIL FILLER

15611-KA4-710

$12.93

17

PIPE A, FEED

22711-MGE-D00

$17.54

18

PIPE B, FEED

22712-MGE-D00

$21.35

19

GUIDE, FEED PIPE

22720-MGE-D00

$79.87

20

SENSOR ASSY., OIL PRESSURE

28660-RFH-013

Unavailable

21

STAY, CONNECTOR

32158-MGE-D00

$5.01

22

SENSOR ASSY., ANGLE (40DEGREE)

38810-MGE-D01

$188.04

23

COVER, ANGLE SENSOR

38815-MGE-D00

$8.23

24

COLLAR, SENSOR COVER

38816-MGE-D00

$4.94

25

NUT, SPECIAL (6MM)

61304-HB3-003

$2.65

26

RUBBER, FUEL HINGE

64454-KVZ-630

$2.00

27

MAT A, ENGINE GUARD

64951-MGE-D00

$1.58

28

MAT B, ENGINE GUARD

64952-MGE-D00

$4.80

29

GUARD SET, R. ENGINE COVER *NH437M* (MAT RAY SILVER) | Pearl cosmic black NHA64P; Candy prominence red R342C;

64960-MGE-D00ZA

$61.23

30

PROTECTOR, RUBBER

77212-MFJ-D00

$1.58

31

COVER SET, SOLENOID VALVE (TYPE1) (WL) | Pearl cosmic black NHA64P; Candy prominence red R342C;

83500-MGH-D20ZB

$32.26

32

BAND, NYLON

83645-GG0-000

$1.77

33

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.62

34

BOLT, FLANGE (6X18)

90016-GHB-640

$1.81

35

BOLT, FLANGE (6X22)

90016-GHB-660

$1.99

36

BOLT, FLANGE (6X28)

90016-GHB-680

$2.07

37

BOLT, FLANGE (6X40)

90016-GHB-710

$1.96

38

BOLT, FLANGE (6X75)

90016-GHB-780

$2.28

39

BOLT, FLANGE SOCKET (5X14)

90089-KAS-900

$1.43

40

BOLT, SEALING (8MM)

90109-371-000

$2.46

41

BOLT, SPECIAL (6X15)

90114-MGE-D00

$1.87

42

WASHER, SEALING

90421-KM1-003

$2.00

43

BEARING, RADIAL BALL LLU (6810)

91011-MGE-D01

$49.77

44

O-RING (13X1.5)

91301-MEH-003

$1.48

45

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.66

46

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.22

47

O-RING (7.7X2.5)

91303-428-003

$1.72

48

O-RING (18X3) (ARAI)

91307-KF0-003

$2.67

49

O-RING (81X2.2)

91307-MGE-D01

$3.57

50

O-RING (46X1.9)

91308-MGE-D01

$2.38

51

O-RING (10.7X1.9)

91308-PY4-003

$1.25

52

O-RING (16.5X2.5)

91310-MGE-D01

$4.38

53

O-RING (9.8X2.4)

91311-MGE-D01

$1.61

54

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.61

55

O-RING (9.8X1.9) (ARAI)

91317-P4V-004

$2.74

56

O-RING (5.5X1.4)

91319-ME5-003

$1.68

57

SCREW, TAPPING (4X10)

93903-24280

$1.23

58

PIN, DOWEL (6X10)

94301-06100

$2.04

59

PIN, DOWEL (8X10)

94301-08100

$2.04

60

PIN, DOWEL (8X14)

94301-08140

$2.04

61

PIN, DOWEL (5X8) This part replaces 94302-05080.

94303-05080

$2.04

61

PIN, DOWEL (5X8)

94303-05080

$2.04

62

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

63

BOLT, FLANGE (6X30)

95701-06030-00

$1.71
