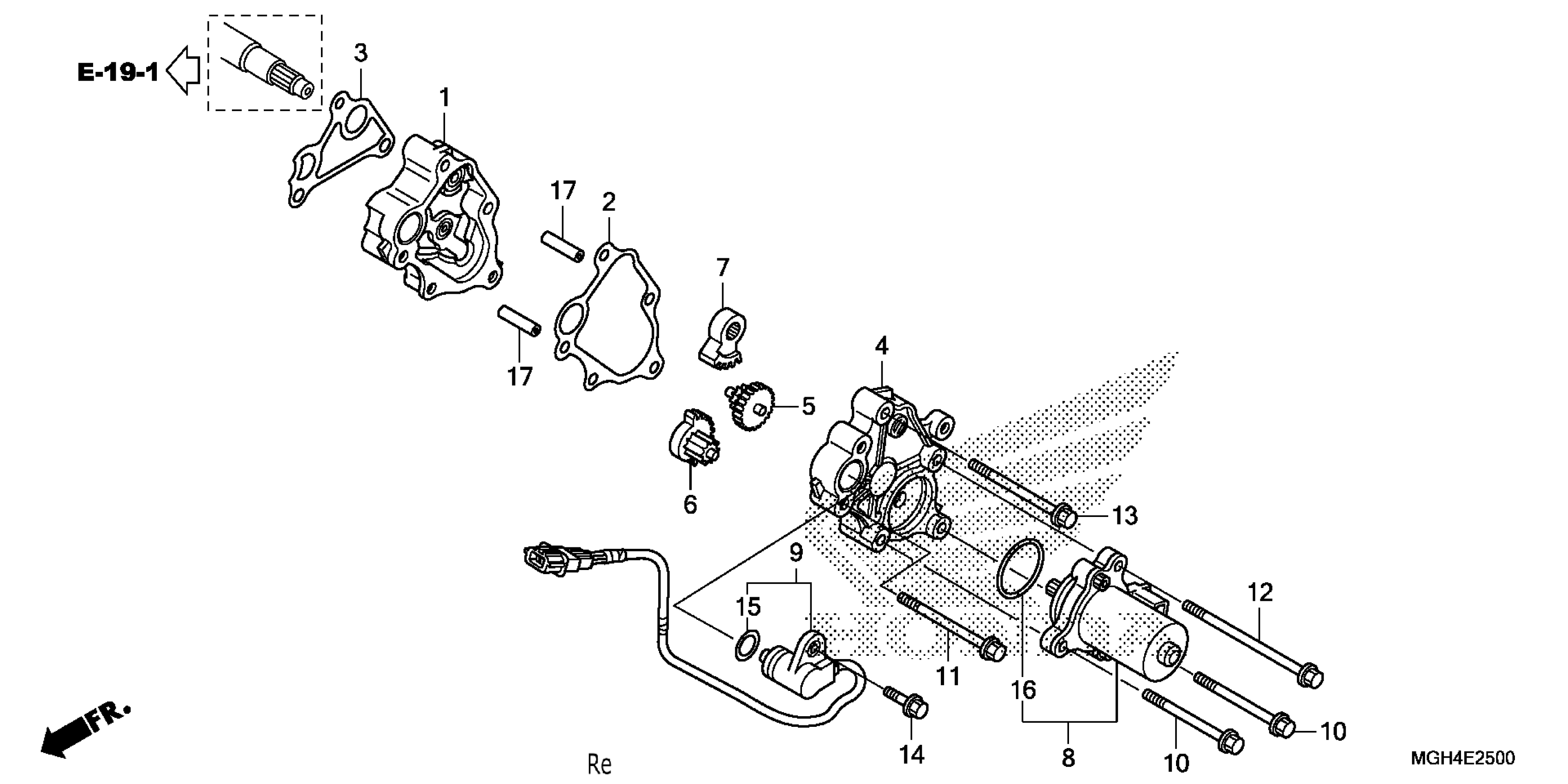

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 REDUCTION GEAR Diagram

BASE, REDUCTION GEAR

11510-MGH-D20

$99.41

GASKET This part replaces 11513-MGE-D01.

11513-MGE-D02

$5.57

GASKET This part replaces 11514-MGE-D01.

11514-MGE-D02

$4.15

COVER, REDUCTION GEAR

11520-MGH-D20

$109.66

GEAR, SHIFT REDUCTION (45T/7T)

24615-MGE-D01

$67.39

GEAR, SHIFT REDUCTION (32T/13T)

24616-MGS-D21

$66.48

GEAR, SHIFT REDUCTION (42T)

24617-MGE-D01

$54.69

MOTOR, RATIO CONTROL This part replaces 31300-KVZ-631.

31300-KVZ-632

$288.21

SENSOR ASSY., ANGLE (350DEGREE)

38800-MGE-D01

$206.51

BOLT, FLANGE (6X55)

90007-MGE-D00

$2.67

BOLT, FLANGE (6X65)

90008-MGE-D00

$2.95

BOLT, FLANGE (6X85)

90009-MGE-D00

$3.08

BOLT, FLANGE (6X60)

90010-MGE-D00

$2.67

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.89

O-RING (16.5X2.5)

91310-MGE-D01

$4.80

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.81

PIN, DOWEL (8X40)

91704-PF4-000

$6.61
