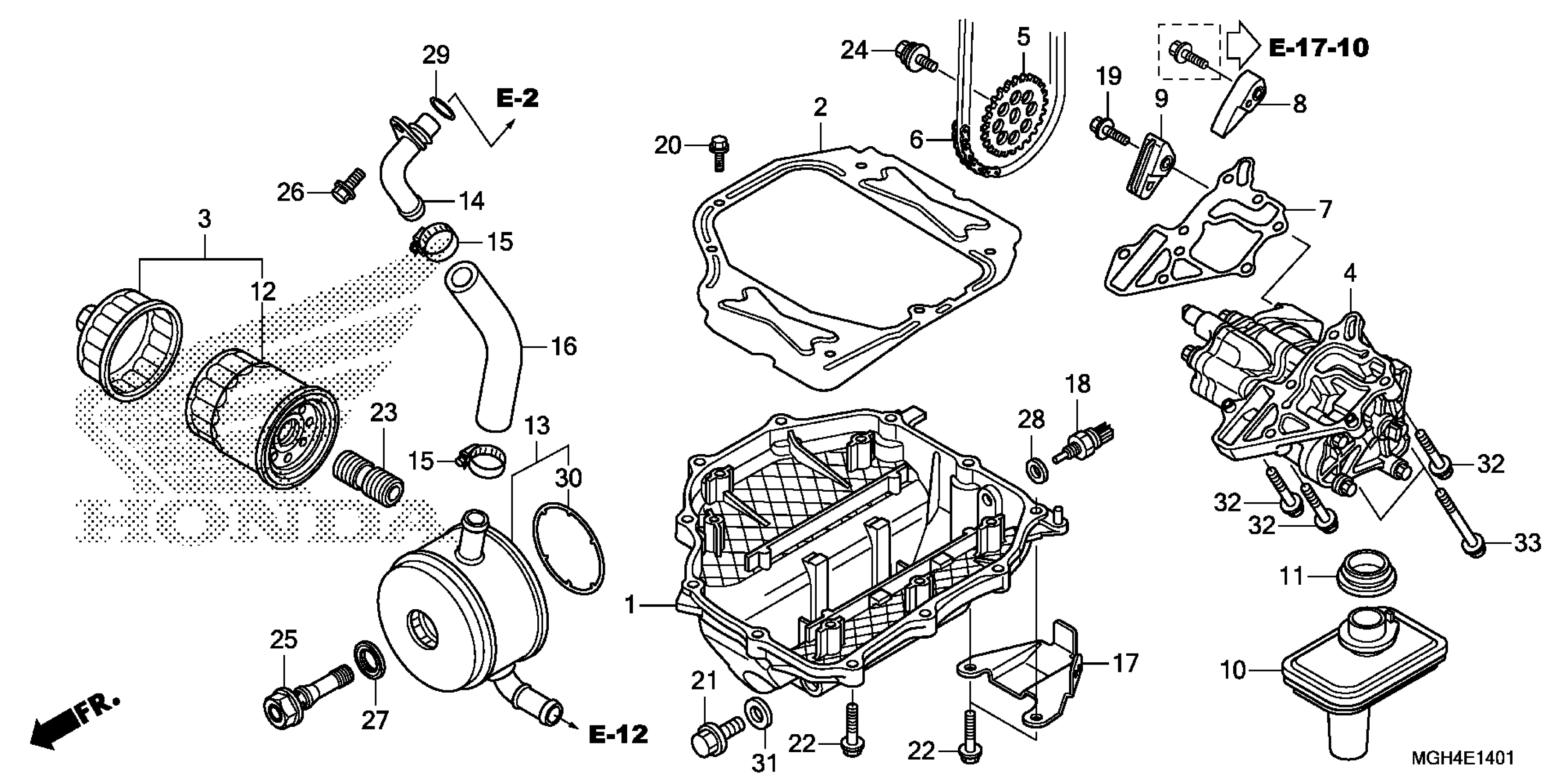

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 OIL PUMP (2) Diagram

#

Description
Price

1

PAN, OIL

11210-MGE-D00

$208.97

2

PLATE, BAFFLE

11211-MGE-D00

Unavailable

3

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$17.70

4

PUMP ASSY., OIL

15100-MGH-D20

$825.80

5

SPROCKET, OIL PUMP DRIVEN (22T)

15134-MCA-000

$36.30

6

CHAIN, OIL PUMP DRIVE (DID25SH-72)

15141-MGE-D01

$27.74

7

GASKET, OIL PUMP

15145-MGE-003

$9.96

8

GUIDE A, OIL PUMP CHAIN

15146-MGE-D00

$15.83

9

GUIDE B, OIL PUMP CHAIN

15147-MGE-D00

$15.57

10

STRAINER, OIL

15150-MGE-000

$38.86

11

GASKET, OIL STRAINER

15154-MAT-000

$5.73

12

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

13

COOLER, OIL

15700-MGE-003

$253.23

14

JOINT, FR. WATER INLET

19330-MGE-000

$22.61

15

CLAMP A, WATER HOSE

19505-KS6-700

$10.57

16

HOSE B, OIL COOLER WATER

19505-MGE-000

$9.07

17

GUARD, OIL TEMPERATURE SENSOR

32161-MGE-D01

$7.78

18

SENSOR ASSY., THERMOSTAT OIL (PANASONIC)

37750-KPH-701

$45.22

19

BOLT, FLANGE (6X18) (NSHF)

90004-GHB-640

$2.67

20

BOLT, FLANGE (5X14)

90012-896-750

$1.14

21

BOLT, PLUG DRAIN (14MM)

90014-MGE-000

$3.17

22

BOLT, FLANGE (6X28)

90016-GHB-680

$2.07

23

BOSS, OIL FILTER

90019-MB0-000

$7.73

24

BOLT-WASHER (6X12)

90021-MM5-000

$4.76

25

BOLT, OIL COOLER

90023-MGE-000

$59.06

26

BOLT, FLANGE (6X14)

90031-MGE-000

$1.87

27

WASHER, SEALING (34.5MM)

90402-MFJ-D01

$6.72

28

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.80

29

O-RING (13X3.0)

91302-MB6-830

$1.78

29

O-RING (13X3.0) This part replaces 91314-KE8-003.

91302-MB6-830

$1.78

30

O-RING, OIL COOLER

91354-MCT-003

$7.08

31

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

32

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

33

BOLT, FLANGE (6X55)

95701-06055-00

$1.97
