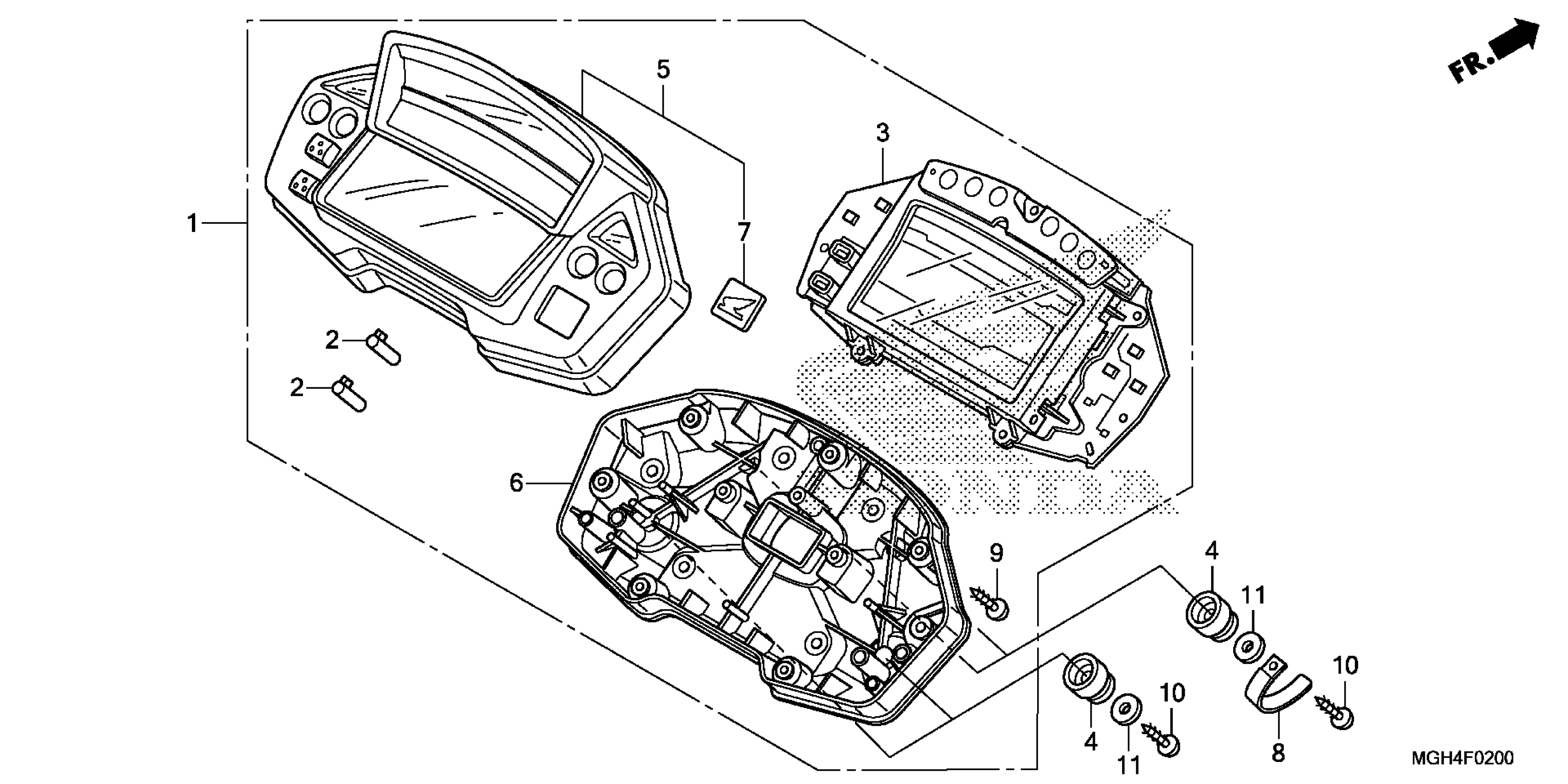

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 METER Diagram

METER ASSY., COMBINATION (MPH/KPH)

37100-MGH-A11

$1,091.77

KEY, TOP

37105-MGH-641

$3.68

METER, LCD (MPH/KPH)

37110-MGH-A11

$1,038.30

RUBBER, METER CUSHION

37215-MA6-008

$2.80

CASE ASSY. (UPPER)

37610-MGH-H21

$132.03

CASE ASSY. (LOWER)

37620-MGH-641

$36.86

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.37

CLIP (2X70)

91410-MN1-671

$2.78

SCREW, TAPPING (3X16)

93903-22420

$0.90

SCREW, TAPPING (5X14) (PO)

93913-25380

$0.83

WASHER, PLAIN (5MM)

94103-05700

$0.86
