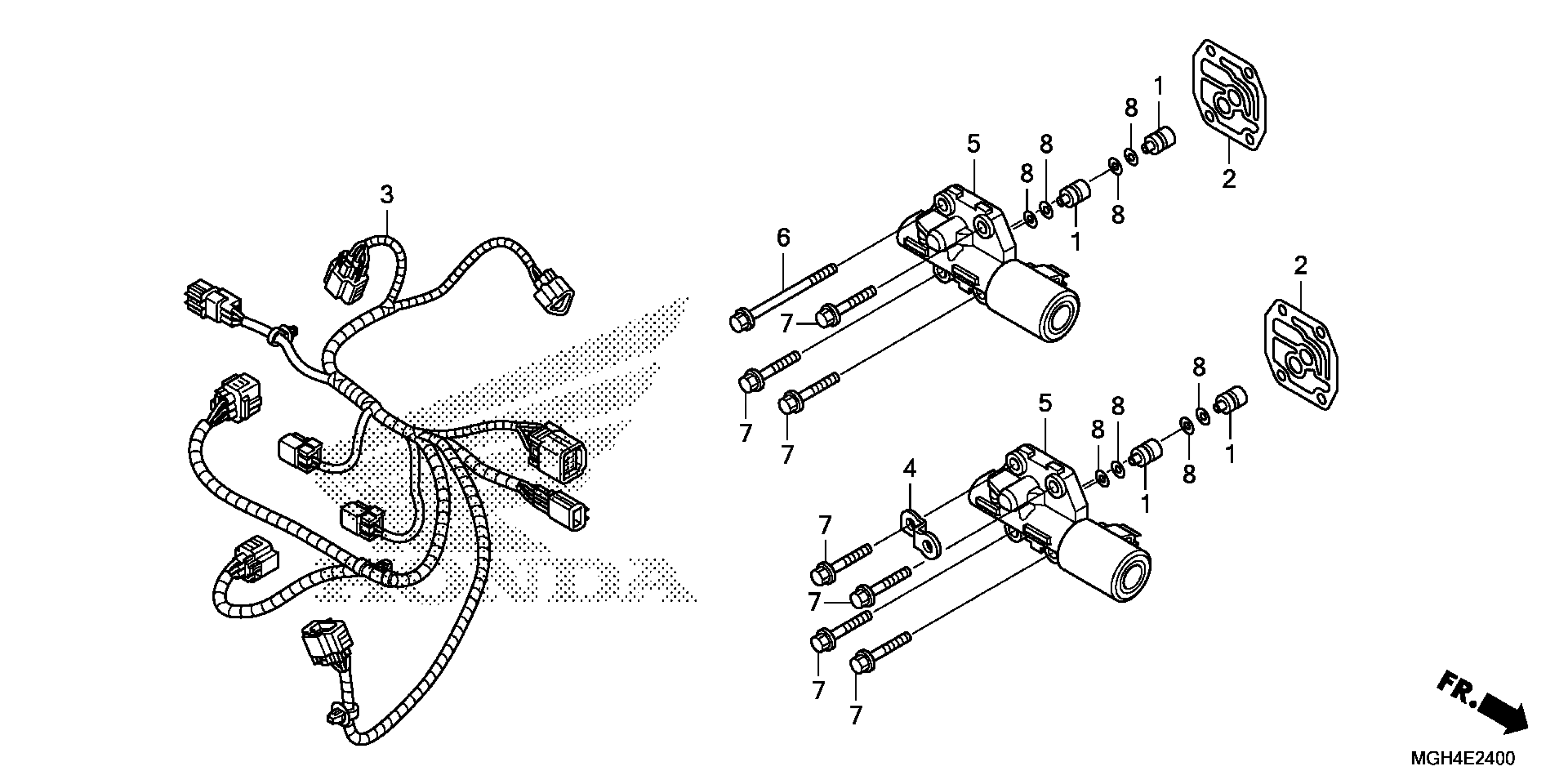

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 LINEAR SOLENOID Diagram

#

Description

Price

1

JOINT, LINEAR SOLENOID

11364-MGE-D00

$12.19

2

GASKET A, LINEAR SOLENOID

28252-MGE-D01

$4.86

3

SUB-HARNESS, ENGINE

32111-MGH-D20

$152.61

4

STAY, CLIP

32160-MGH-D20

$3.20

5

SOLENOID ASSY., LINEAR

38610-MGE-D01

$246.65

6

BOLT, FLANGE (6X70)

90016-GHB-770

$2.22

7

BOLT, FLANGE (6X30)

90037-MGE-D00

$2.28

8

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.80
