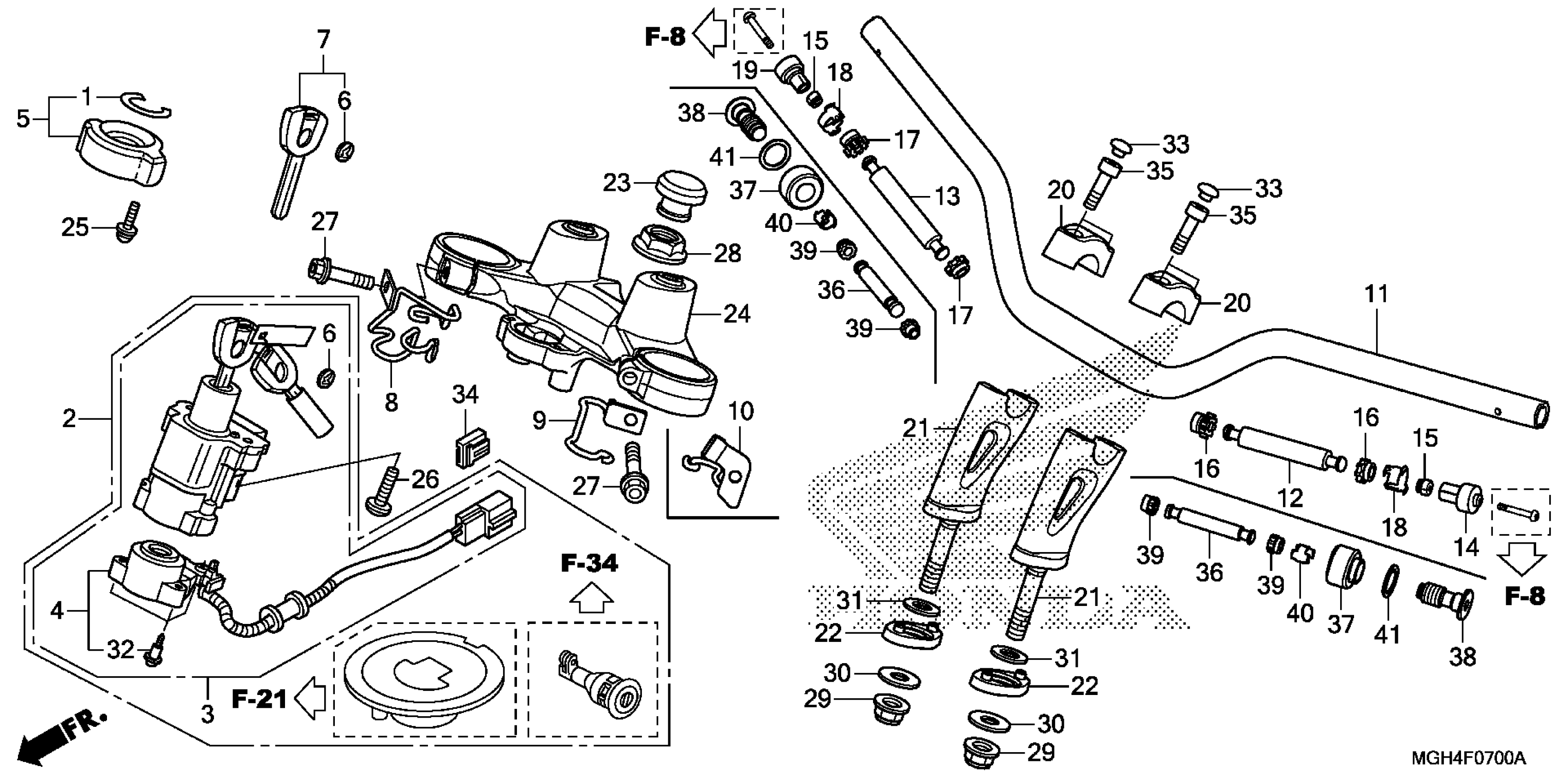

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.58

2

LOCK SET | Use up to Frame SN HK100149 This part replaces 35010-MGH-A50.

35010-MGH-A53

$441.91

2

LOCK SET | Use from Frame SN HK100150 This part replaces 35010-MGH-A51.

35010-MGH-A53

$441.91

3

SWITCH ASSY., COMBINATION & LOCK | Use up to Frame SN HK100149 This part replaces 35100-MGH-A51.

35100-MGH-A52

$154.26

3

SWITCH ASSY., COMBINATION & LOCK | Use from Frame SN HK100150

35100-MGH-A52

$154.26

4

BASE, CONTACT

35101-MGH-H21

$76.68

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.44

6

EMBLEM, KEY | (Optional).

35113-MJK-N20

$3.14

7

KEY, BLANK | (Optional).

35121-MGP-A93

$21.01

7

KEY, CUT INCL. OVERNIGHT SHIP (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MGP-A93RUSH

Unavailable

7

KEY, CUT INCL. STD SHIPPING (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MGP-A93STD

Unavailable

8

GUIDE, R. FR. HOSE

45159-MGH-640

$39.04

10

GUIDE, L. PARKING BRAKE CABLE

47160-MGH-D20

$24.67

11

HANDLEBAR

53100-MGH-HB0

$165.88

20

HOLDER, HANDLE (UPPER)

53131-MGH-640

$53.12

21

HOLDER, HANDLE (LOWER)

53132-MGH-640

$92.81

22

RUBBER, HANDLE HOLDER

53135-MGH-640

$4.86

23

CAP, STEERING STEM NUT

53232-MJ4-670

$12.06

24

BRIDGE, FORK TOP

53300-MGH-640

$225.10

25

SCREW-WASHER (5X22)

90020-MBW-610

$2.33

26

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

27

BOLT, FLANGE (8X40)

90108-MR7-000

$4.70

28

NUT, STEERING STEM

90304-MJ4-670

$13.83

29

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

30

WASHER, PLAIN (12MM)

90452-GM6-000

$2.46

31

WASHER (26X14X2.8)

90501-GAH-000

$6.18

31

WASHER (26X14X2.8) This part replaces 90501-GBL-730.

90501-GAH-000

$6.18

32

SCREW, TAPPING (3X16)

91059-KY2-711

$2.80

33

CAP, SOCKET BOLT

91456-371-770

$3.22

34

HOLDER, BRACKET (RED)

91554-SM4-003

$7.12

35

BOLT, SOCKET (8X28)

96600-08028-00

$1.84

36

WEIGHT B, HANDLEBAR

53104-MGH-HB0

$10.39

37

WEIGHT A, HANDLEBAR

53105-MJP-G50

$17.13

38

BOLT, HANDLE WEIGHT

53106-MJP-G50

$12.07

39

RUBBER, HANDLE WEIGHT

53107-MJP-G50

$3.08

40

RING, HANDLE WEIGHT SNAP

53108-MJP-G50

$3.09

41

RUBBER, KNUCKLE GUARD

53109-MJP-G50

$2.03
