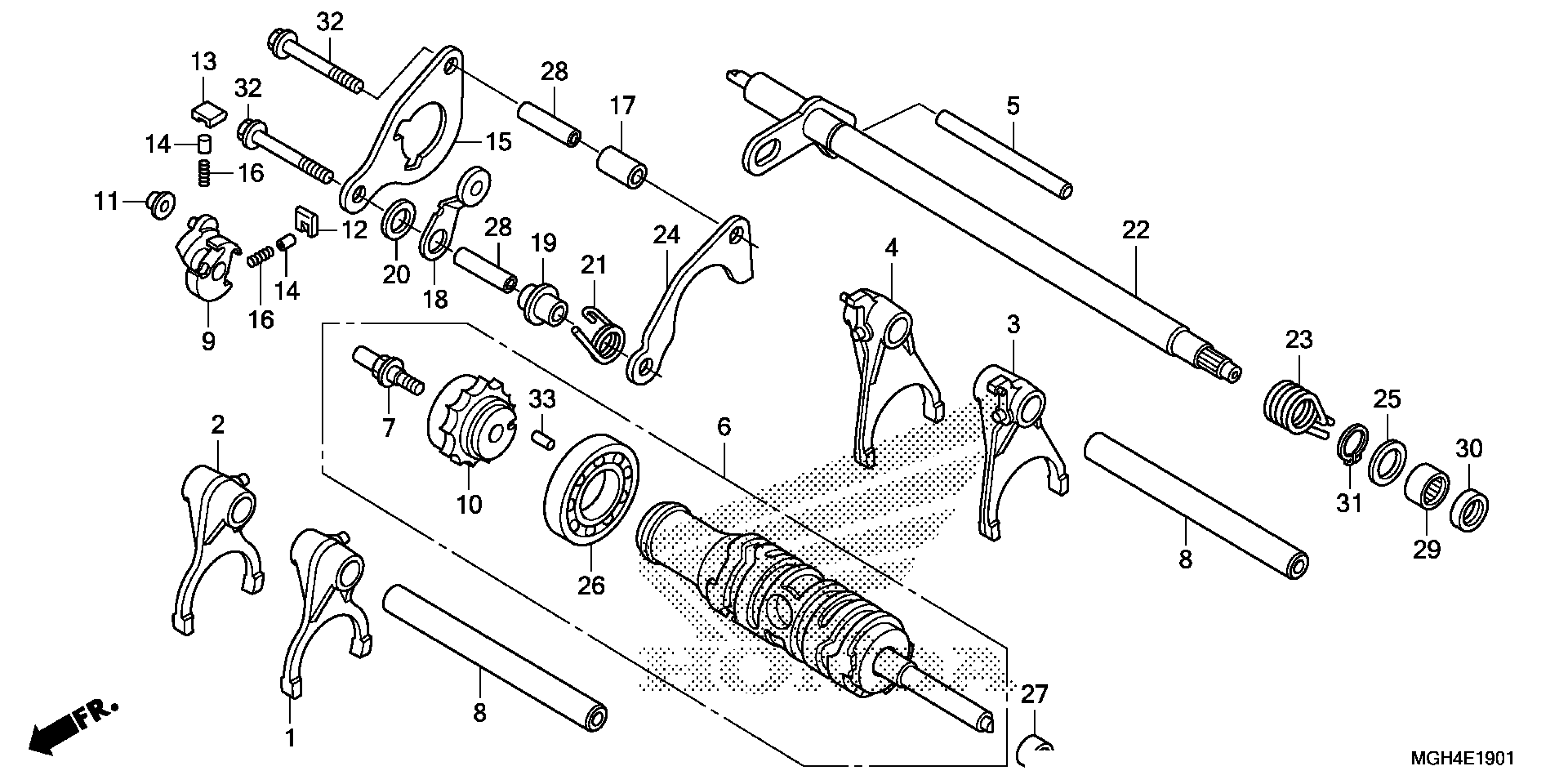

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 GEARSHIFT DRUM (2) Diagram

#

Description
Price

1

FORK, L. GEARSHIFT (MAIN)

24211-MGE-D00

$62.19

2

FORK, R. GEARSHIFT (MAIN)

24212-MGE-D00

$62.19

3

FORK, L. GEARSHIFT (COUNTER)

24213-MGE-D00

$62.19

4

FORK, R. GEARSHIFT (COUNTER)

24214-MGE-D00

$62.19

5

SHAFT, GEARSHIFT FORK

24241-KPP-900

$3.30

6

DRUM ASSY., GEARSHIFT

24300-MGE-D01

$151.22

7

PIN, SHIFTER

24315-MGE-D01

$10.26

8

SHAFT, GEARSHIFT FORK

24321-MGE-000

$18.28

9

SHIFTER, DRUM

24321-MGE-D00

$41.04

10

CENTER, SHIFT DRUM

24322-MGE-D01

$34.87

11

COLLAR, SHIFTER

24322-MM4-000

$4.76

12

PAWL A, RATCHET

24324-KA3-711

$11.88

13

PAWL B, RATCHET

24325-KA3-711

$11.88

14

PLUNGER, PAWL

24326-KBH-901

$5.42

15

PLATE, CHANGE GUIDE

24328-MGE-D00

$4.68

16

SPRING, PAWL PLUNGER

24329-KA3-740

$2.67

17

COLLAR, GUIDE PLATE DISTANCE

24329-KT8-000

$5.43

18

STOPPER, DRUM

24430-MGE-000

$14.59

19

COLLAR, DRUM STOPPER

24434-MGE-000

$4.90

20

COLLAR, DRUM STOPPER SIDE

24435-MGE-000

$2.36

21

SPRING, SHIFT DRUM STOPPER

24436-MGE-D00

$3.74

22

SPINDLE, GEARSHIFT

24610-MGE-D00

$79.87

23

SPRING, SHIFT RETURN

24651-MGE-D00

$6.49

24

PLATE, SHIFT DRUM BEARING SETTING

24655-MGE-D00

$4.41

25

WASHER (14MM)

90451-155-000

$3.52

26

BEARING, BALL (16005) (NTN)

91008-374-003

$13.49

27

BEARING, NEEDLE (12X18X12)

91056-HP5-601

$5.63

28

PIN, DOWEL (8X31.5)

91104-KT7-000

$4.65

29

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$10.30

30

OIL SEAL (14X22X5)

91203-KK3-830

$3.55

31

CIRCLIP, OUTER (14MM)

94510-14000

$0.93

32

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

32

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

33

ROLLER (4X8)

96220-40080

$0.46
