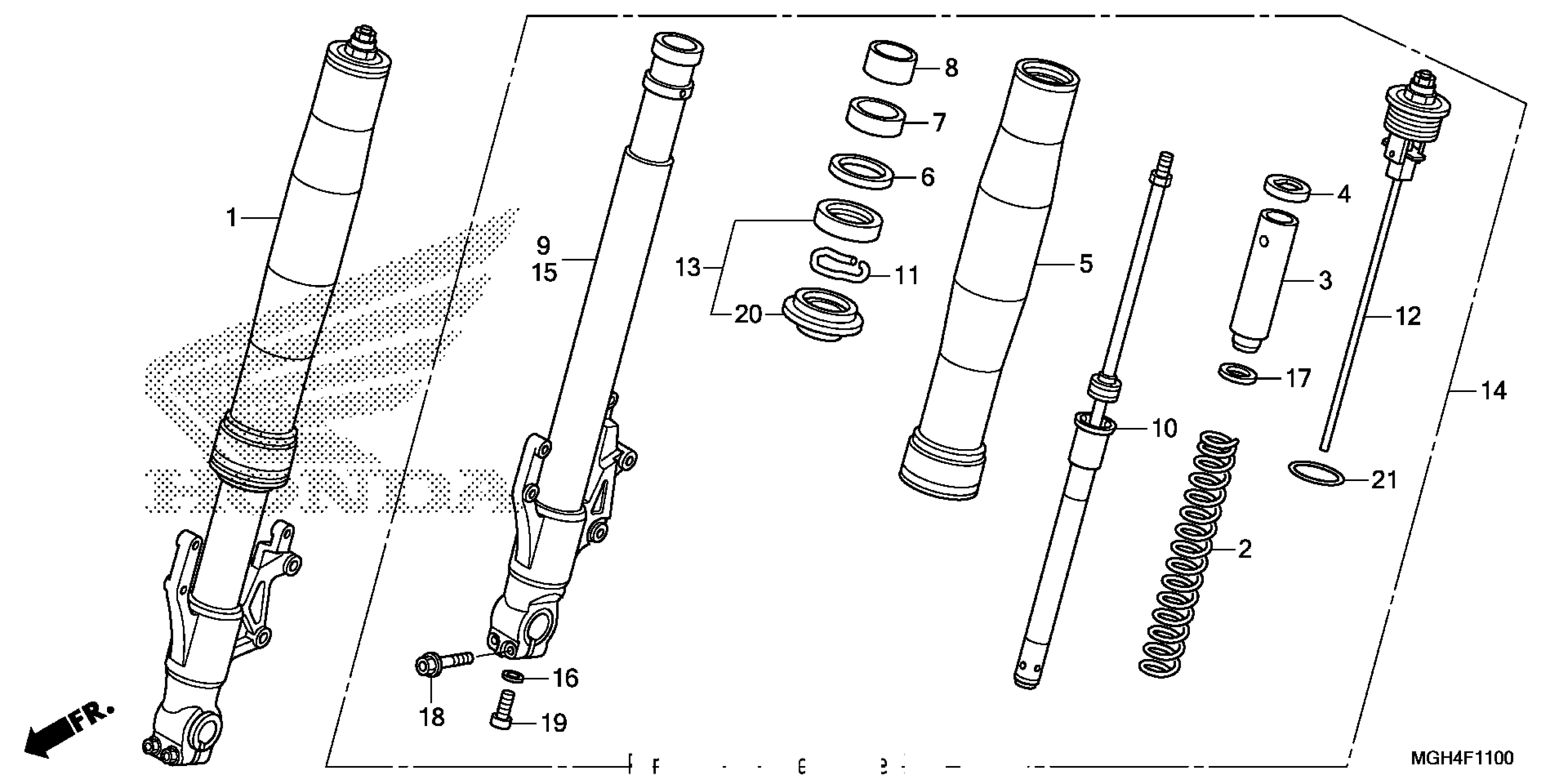

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 FRONT FORK Diagram

Description

Price

FORK ASSY., R. FR. (KYB)(COO)

51400-MGH-306

$1,380.34

SPRING, FR. FORK

51401-MGH-641

$89.75

COLLAR, SPRING

51403-MGH-641

$12.44

SEAT, SPRING COLLAR

51406-MGE-003

$4.44

TUBE (OUTER)

51410-MGH-D31

$498.43

RING, BACK-UP

51412-MGE-003

$8.21

BUSH, GUIDE

51414-MGE-003

$7.48

BUSH, SLIDER

51415-MGE-003

$8.85

PIPE, R. SLIDE

51425-MGH-641

$413.38

DAMPER, FR.

51430-MGH-D21

$550.82

RING, OIL SEAL STOP

51447-KZ4-711

$5.04

BOLT, FR. FORK

51450-MGE-003

$169.38

SEAL SET, FR. FORK

51490-MGE-003

$22.87

FORK ASSY., L. FR. (KYB)(COO)

51500-MGH-306

$1,380.34

PIPE, L. SLIDE

51525-MGH-641

$413.38

WASHER, OIL BOLT

52442-KA3-731

$2.34

WASHER

52442-MGE-003

$1.97

BOLT, FLANGE (8X40)

90107-MGE-000

$2.66

BOLT, SOCKET (10X25)

90116-KK0-004

$5.94

DUST SEAL

91254-MGE-003

$13.57

O-RING (39.7X3.5)

91258-KZ4-711

$9.05
