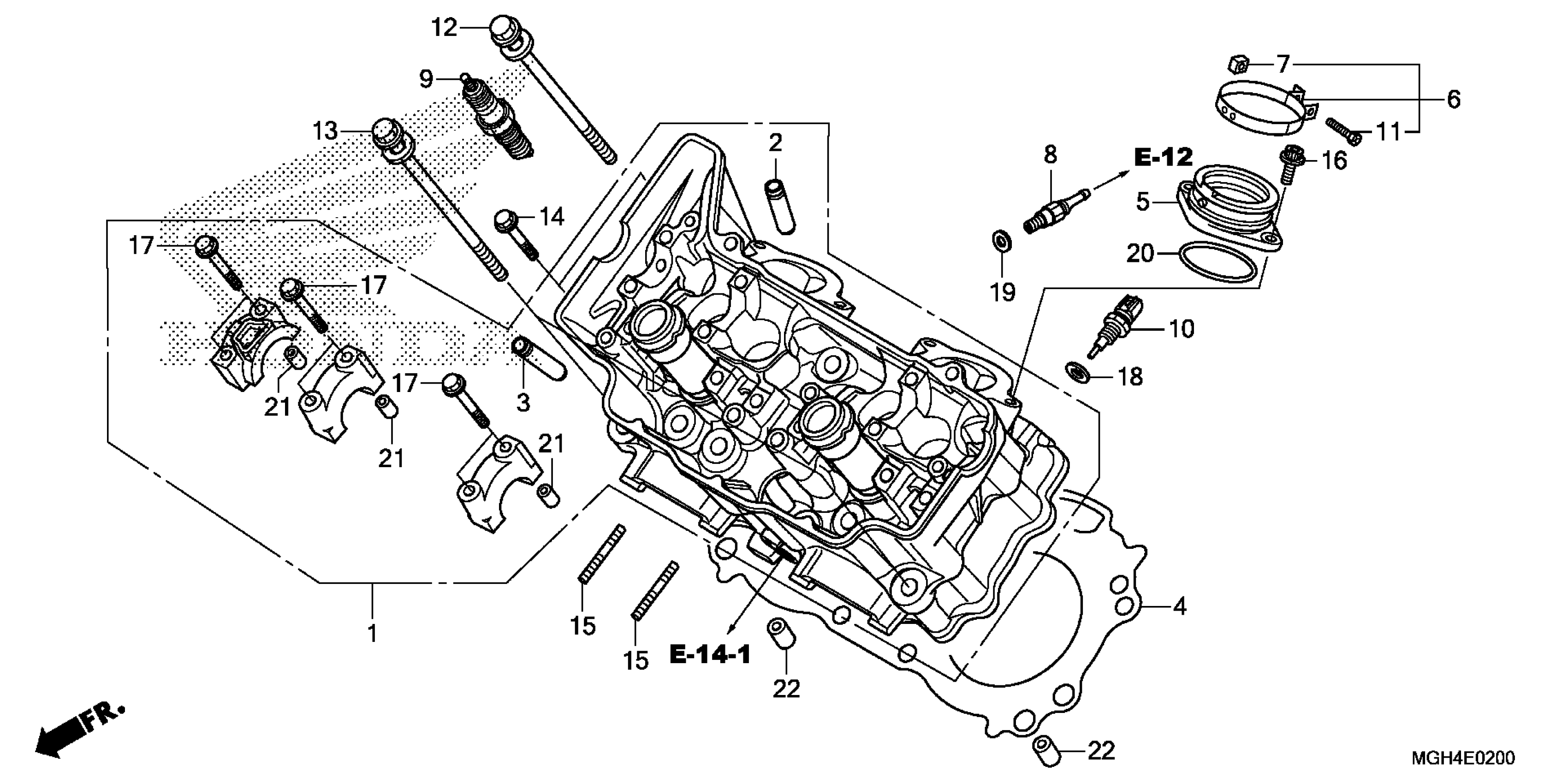

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 CYLINDER HEAD (FR.) Diagram

CYLINDER HEAD ASSY., FR.

12010-MGE-020

$1,402.95

GUIDE, VALVE (OVER SIZE)

12204-MFL-305

$16.93

GUIDE, EX. VALVE (OVER SIZE)

12205-MGE-305

$18.54

GASKET, FR. CYLINDER HEAD

12251-MGE-003

$79.74

INSULATOR, THROTTLE BODY

16210-MGE-000

$53.34

BAND, INSULATOR

16218-MEL-000

$6.10

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

JOINT, BLEEDING

19410-MFG-D00

$25.10

SPARK PLUG (IMR8E-9HES) (NGK)

31912-MGH-641

$31.93

SPARK PLUG (VUH24ES) (DENSO)

31922-MGH-642

$34.95

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$30.74

BOLT, RECESSED (5X22)

90005-MEL-000

$1.49

BOLT-WASHER (10X105)

90007-MAT-000

$10.79

BOLT-WASHER (10X110)

90008-MGE-000

$7.57

BOLT, FLANGE (6X35)

90016-GHB-700

$2.18

BOLT, STUD (6X25)

90035-MGE-000

$3.06

BOLT, FLANGE SOCKET (6X16)

90071-MEL-000

$2.25

BOLT, FLANGE (6X40)

90102-KE5-000

$3.12

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

GASKET (SHOWA)

90544-439-930

$2.13

O-RING (48.5X2.5)

91301-MCH-003

$5.60

PIN, DOWEL (8X14)

94301-08140

$2.25

PIN A, DOWEL (12X16)

94301-12160

$2.27
