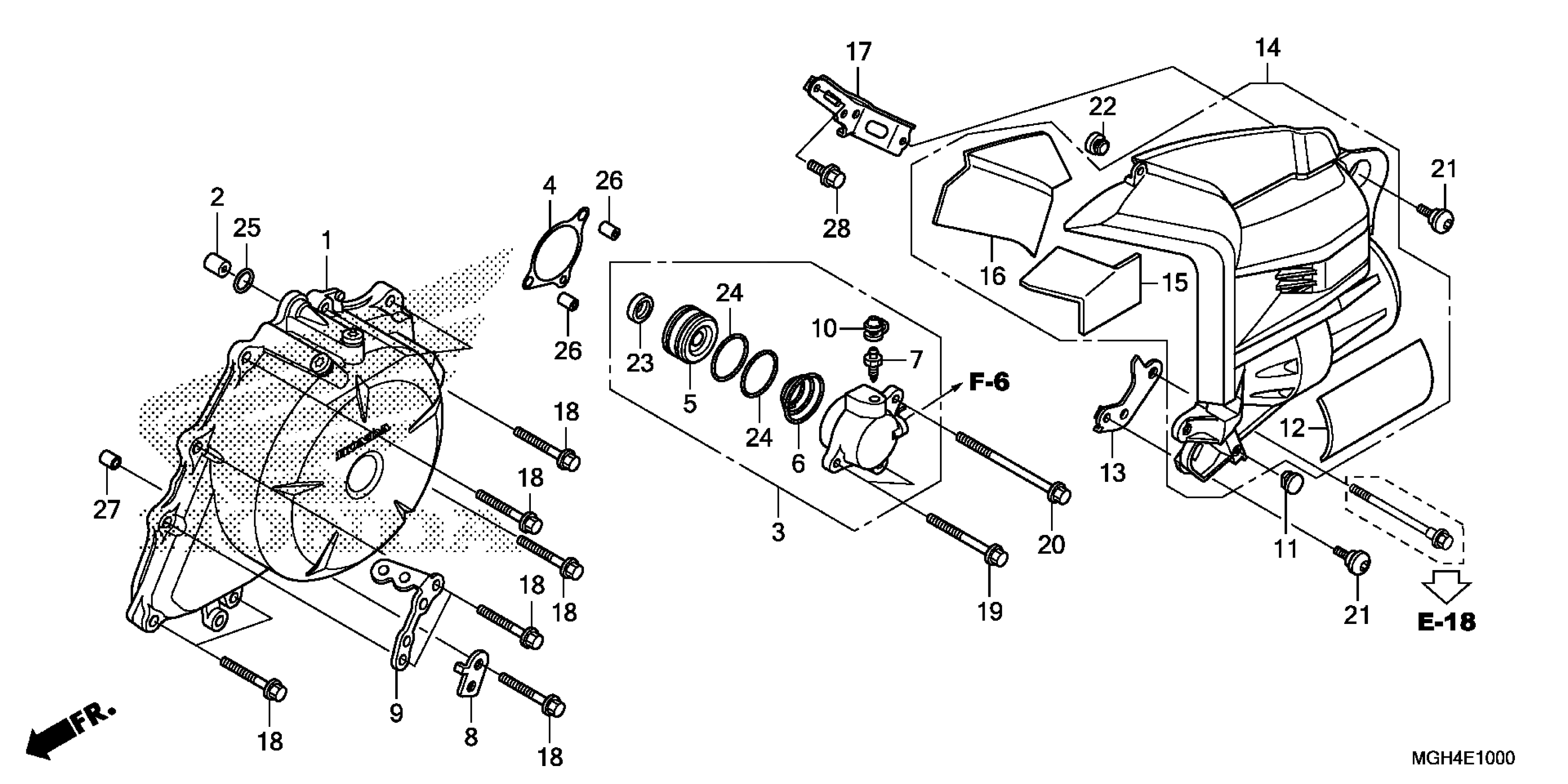

Honda VFR1200XDAC (17) VFR1200XD, JPN, VIN# JH2SC761-HK100001 ALTERNATOR COVER Diagram

COVER, ALTERNATOR

11320-MGE-010

$329.18

ORIFICE B

15516-MGE-000

$5.10

STAY, HARNESS CLIP

32157-MFJ-D00

$3.16

STAY, HARNESS CLIP

32158-MGE-000

$2.91

RUBBER, FUEL LID STOPPER

60107-752-000

$2.87

MAT A, COWL (LOWER)

64412-MCF-300

$11.09

STAY, L. ENGINE HEAT GUARD (LOWER)

64547-MGE-701

$8.46

GUARD SET, L. ENGINE HEAT

83600-MGH-D20

$36.49

MAT A, L. ENGINE HEAT GUARD

83611-MGE-700

$5.34

MAT B, L. ENGINE HEAT GUARD

83612-MGE-700

$4.88

STAY, L. ENGINE HEAT GUARD (UPPER)

83615-MGE-D00

$10.51

BOLT, FLANGE (6X28)

90016-GHB-680

$2.10

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.68

RUBBER, SEPARATOR MOUNTING

90572-KV3-300

$3.74

O-RING (8.4X2.4)

91316-MJ8-003

$2.41

PIN, DOWEL (8X14)

94301-08140

$2.76

BOLT, FLANGE (6X14)

95701-06014-00

$0.93
