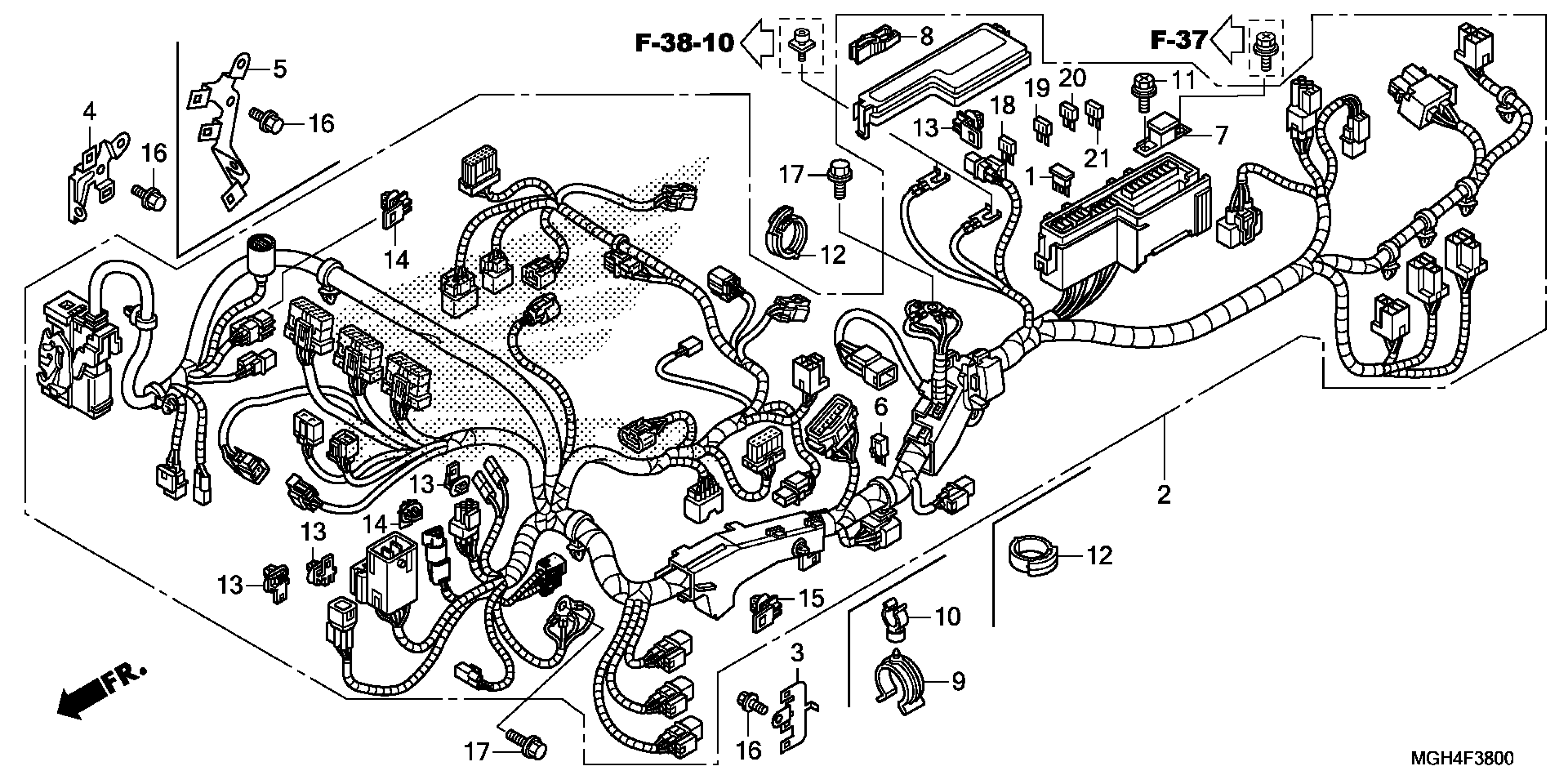

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 WIRE HARNESS Diagram

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MGH-A50

$1,821.89

STAY, L. CONNECTOR

32125-MGE-640

$3.80

STAY, R. CONNECTOR

32127-MGE-640

$4.62

CONNECTOR, DIODE (2P)

32146-SH3-003

$18.39

FUSE, BLOCK (50A)

38213-SM4-003

$13.24

PULLER, MINI FUSE (SUMITOMO)

38235-S04-003

$1.49

BOLT (5X13)

90114-SG0-003

$6.31

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

BOLT, FLANGE (6X10)

96001-06010-02

$1.54

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A)

98200-41500

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

FUSE, MINI (30A)

98200-43000

$1.67
