Partiron

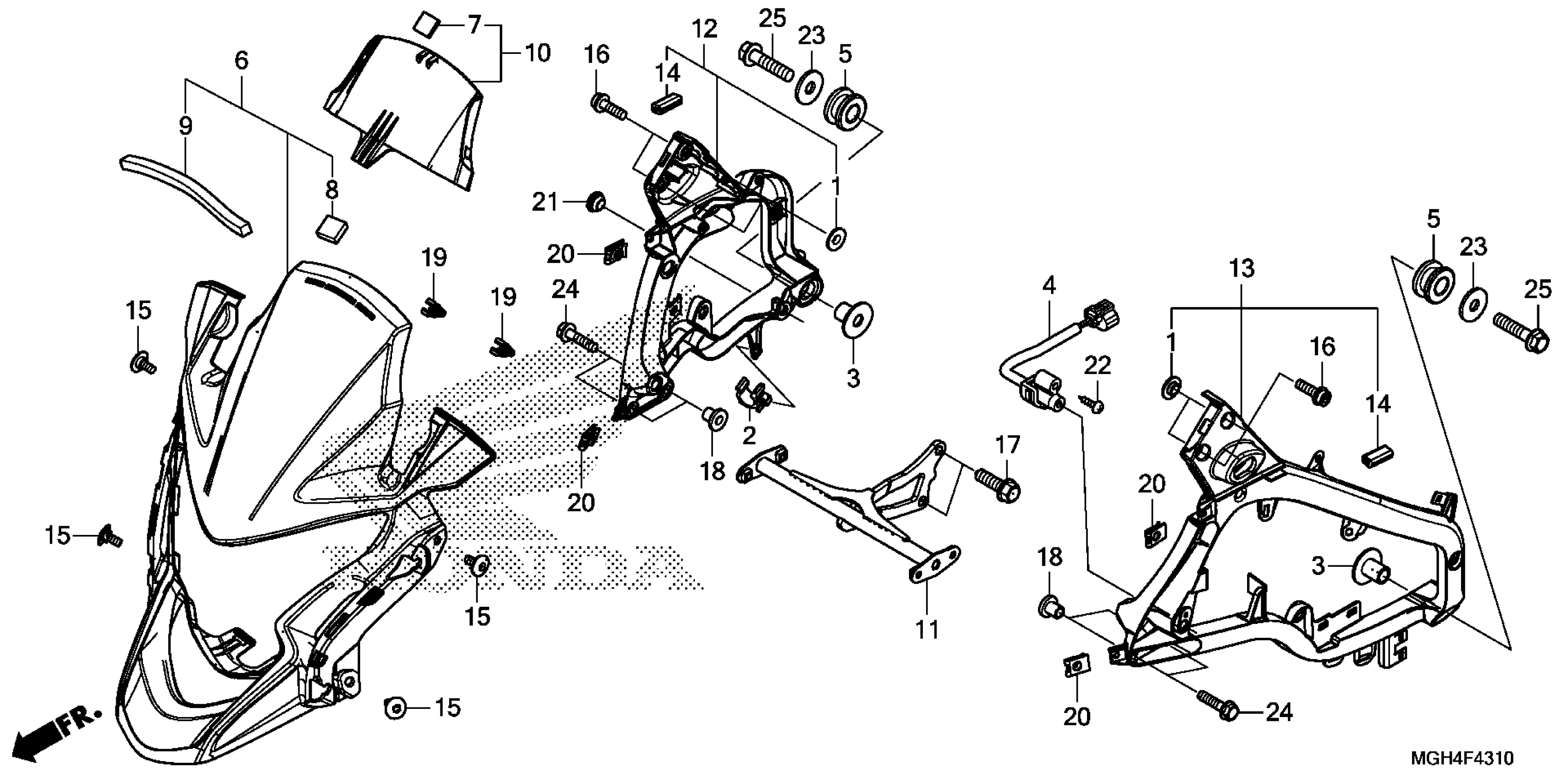

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 UPPER COWL Diagram

#

Description
Price

1

COLLAR

11385-MJF-A00

$2.80

2

CLIP, TUBE

16731-ZE2-003

$2.21

3

COLLAR, RR. CHAMBER (8.5X15)

18327-KAE-000

$2.50

4

SENSOR, TEMPERATURE

37880-MGH-641

$102.18

5

RUBBER, STEP MOUNTING

50623-KFB-000

$2.93

6

COWL (UPPER)

64160-MGH-H20

$173.06

7

FASTENER B, DUAL LOCK (20X20)

64165-MGH-640

$4.34

8

FASTENER B, DUAL LOCK (20X20)

64165-MJF-A30

$3.62

9

MAT, COWL (UPPER)

64167-MGH-640

$6.88

10

VISOR (INNER)

64170-MGH-H20

$21.93

11

STAY, COWL (UPPER)

64500-MGH-640

$167.72

12

STAY, R. COWL SUPPORT (UPPER)

64600-MGH-H20

$69.76

13

STAY, L. COWL SUPPORT (UPPER)

64650-MGH-H20

$69.76

14

PROTECTOR, RUBBER

77212-MFJ-D00

$1.60

15

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.47

16

BOLT, FLANGE SOCKET (6X20)

90116-MGH-H20

$3.00

17

BOLT, FLANGE (8X28)

90120-MEE-000

$2.15

18

COLLAR, FUEL TANK

90509-750-000

$3.84

19

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$0.76

20

NUT, CLIP (5MM)

90677-KAN-961

$3.89

21

PLUG, HOLE (10MM) (NA USE ALT:90852-SA5-000)

90680-692-000

$3.96

22

SCREW, TAPPING (4X12) (PO)

93913-24280

$1.60

23

WASHER, PLAIN (8MM)

94103-08000

$0.60

24

BOLT, FLANGE (6X25)

96300-06025-00

$1.35

25

BOLT, FLANGE (8X35)

96300-08035-00

$1.81
