Description

Price

1

CAP & COIL, IGNITION

30700-MGE-641

$81.59

2

RECTIFIER ASSY., REGULATOR

31600-MGE-641

$410.31

3

COVER, REGULATOR RECTIFIER

31601-MGE-642

$9.51

4

PLATE, REGULATOR RECTIFIER

31604-MGE-000

$12.25

5

SUB-WIRE HARNESS, FR.

32103-MGH-A50

$147.20

6

SUB-HARNESS, INJECTOR

32112-MGE-640

$86.69

7

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$150.05

10

HORN (LOW)

38120-MCE-951

$27.84

11

RELAY, TURN SIGNAL This part replaces 38301-MGH-N01.

38301-MGH-N02

$215.11

12

CUSHION, TURN SIGNAL RELAY

38306-MGH-640

$6.18

13

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

14

SUSPENSION, STARTER RELAY (TATEISHI)

38506-751-701

$4.69

15

HOLDER, RELAY

38506-MBW-G91

$3.56

16

PGM-FI UNIT

38770-MGH-A51

$1,612.98

17

COLLAR, HEAT GUARD SETTING

50609-MCW-D00

$2.48

18

RUBBER, SIDE COVER

64535-MFJ-D00

$1.93

19

BOLT, SOCKET (5X8)

90101-MGE-640

$2.36

20

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

21

BAND, WIRE HARNESS

90651-MA6-720

$3.73

22

CLIP, WASHER MOUTH

91504-SD5-901

$4.39

23

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

24

BOLT-WASHER (6X20)

93401-06020-07

$1.62

25

NUT, HEX. (6MM)

94001-06070-0S

$1.49

26

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

27

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

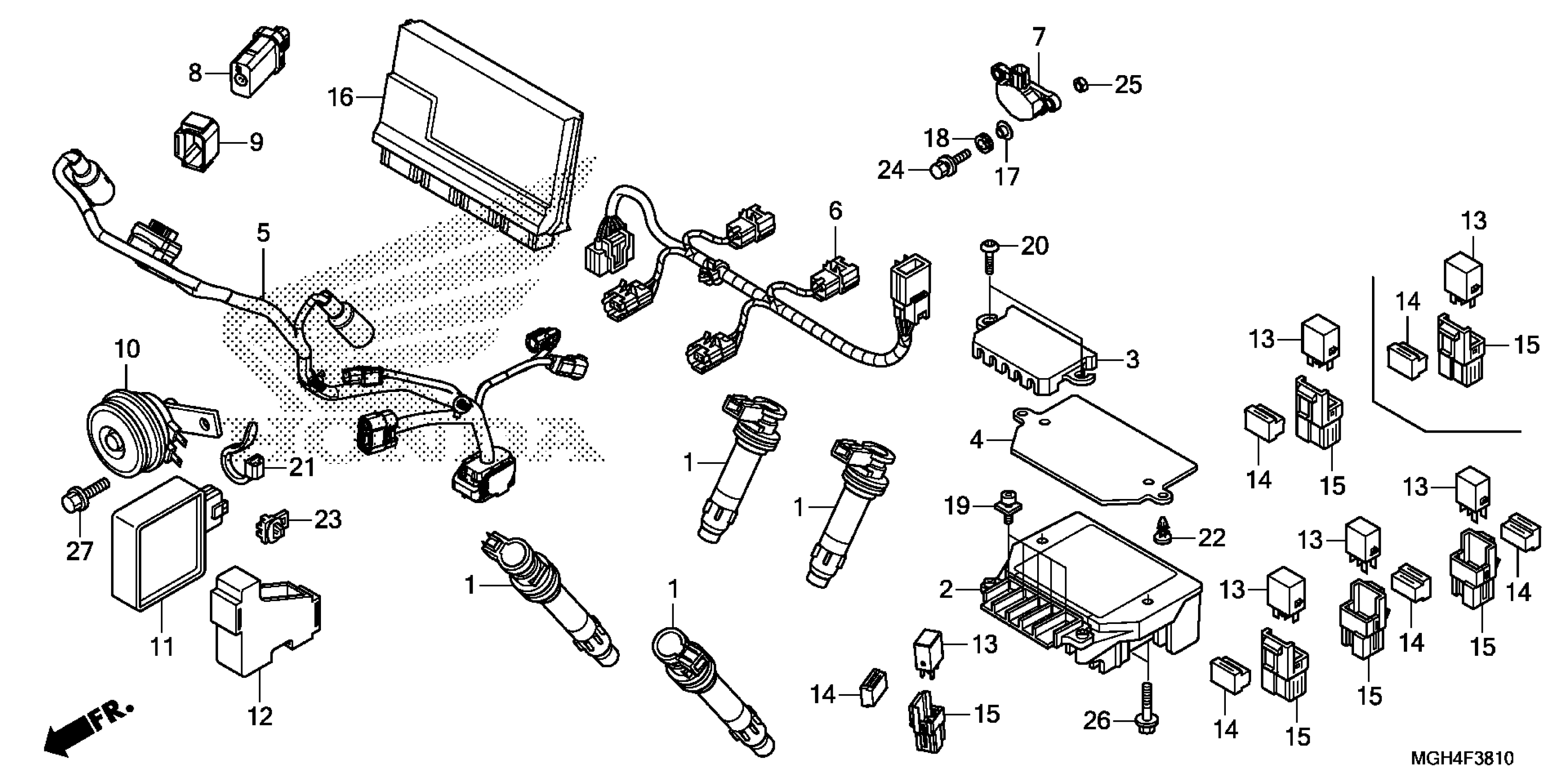

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 SUB HARNESS Diagram
