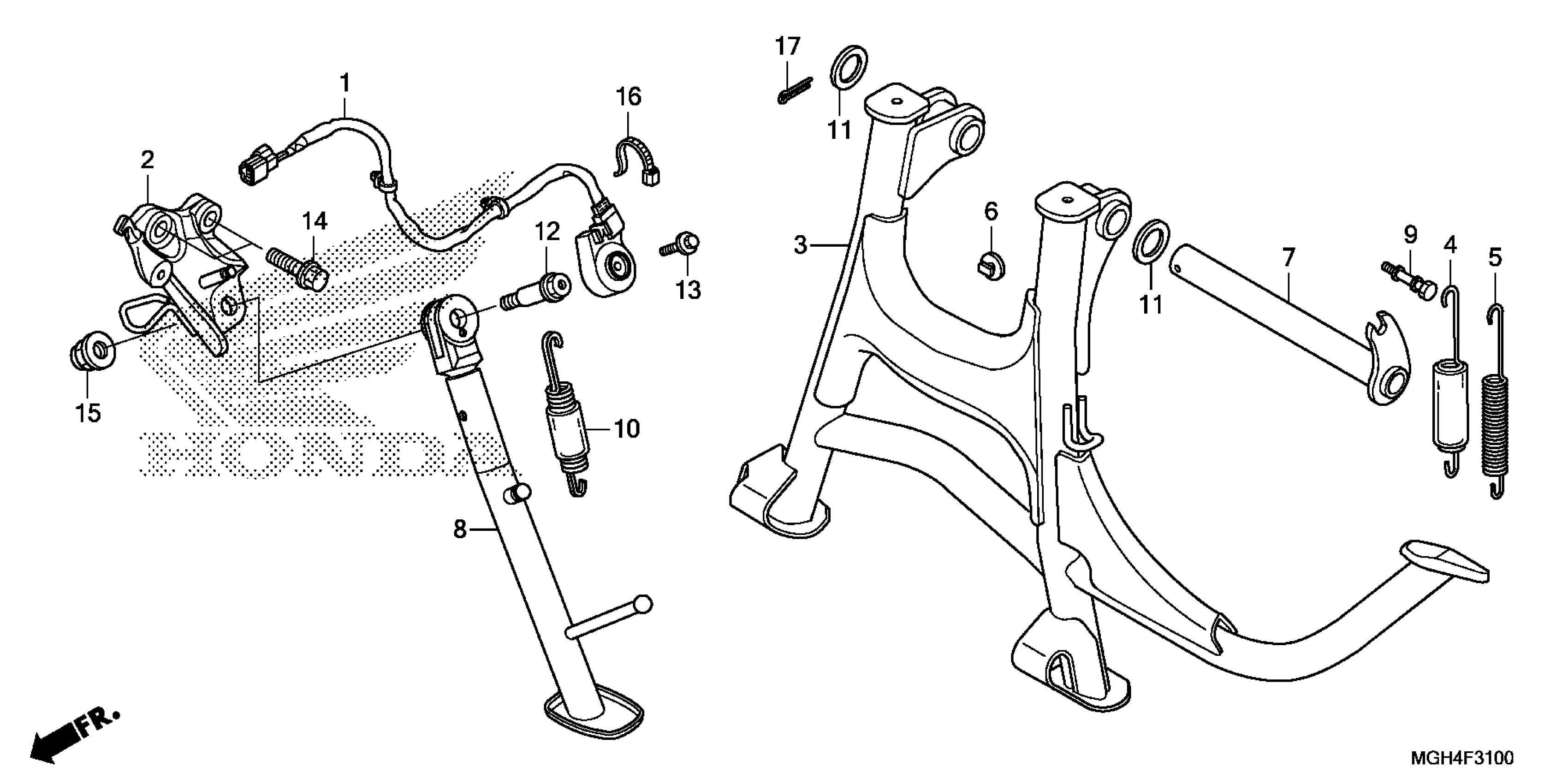

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 STAND Diagram

#

Description
Price

1

SWITCH ASSY., SIDE STAND

35700-MGH-641

$70.04

2

BRACKET, SIDE STAND

50150-MGH-640

$153.48

8

BAR, SIDE STAND

50530-MGH-640

$107.24

10

SPRING ASSY., SIDE STAND

50540-MGE-000

$13.12

12

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.43

13

BOLT, SPECIAL (6X16)

90147-MCE-950

$0.51

14

BOLT, FLANGE (10X35)

90164-MGH-640

$4.12

15

NUT, SIDE STAND

90203-MF9-710

$3.50

16

BAND, WIRE (95MM)

90650-KV6-003

$2.97
