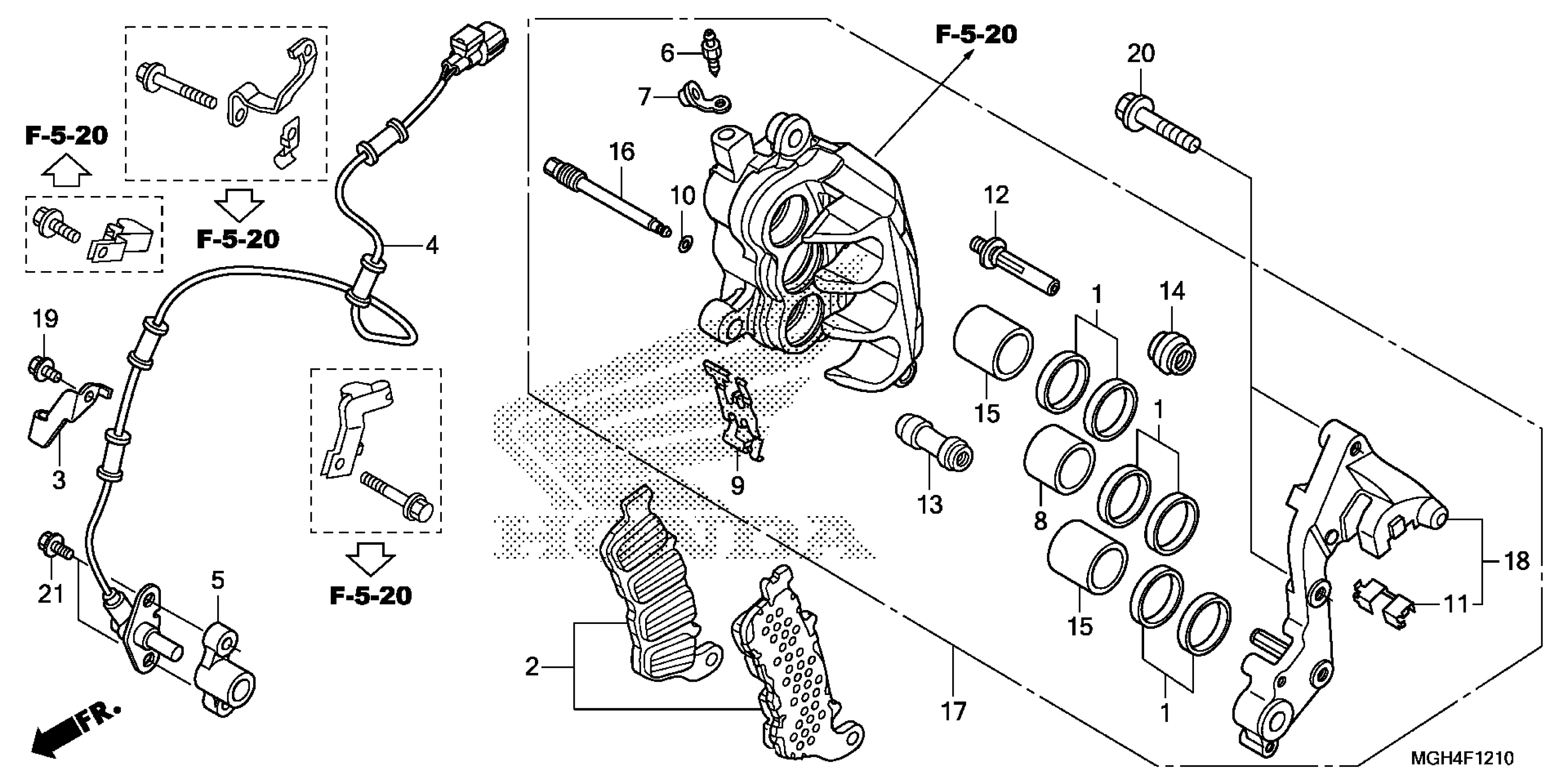

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 RIGHT FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-GE2-405

$10.47

PAD SET, R. FR.

06455-MCW-H03

$58.99

CLAMP, ABS WIRE

38514-MGH-640

$3.96

SENSOR, FR. WHEEL SPEED

38520-MGH-641

$176.28

GUARD, ABS SENSOR

38521-MGH-640

$3.22

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON A (25)

45107-MGH-641

$37.03

SPRING, PAD

45108-MBT-D52

$7.65

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MZ2-006

$8.14

BOLT A, PIN

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PISTON,25 B This part replaces 45207-MFN-D12.

45207-MFN-D13

$30.60

PIN, HANGER

45215-MBT-D51

$6.38

CALIPER SUB-ASSY. This part replaces 45250-MGH-641.

45250-MGH-642

$703.25

BRACKET SUB-ASSY., R. FR.

45290-MEW-852

$137.09

BOLT, FLANGE (6X10)

90101-MGH-640

$2.72

BOLT, FLANGE (8X32)

90131-MGC-000

$3.21

BOLT, FLANGE (6X14)

96001-06014-02

$1.37
