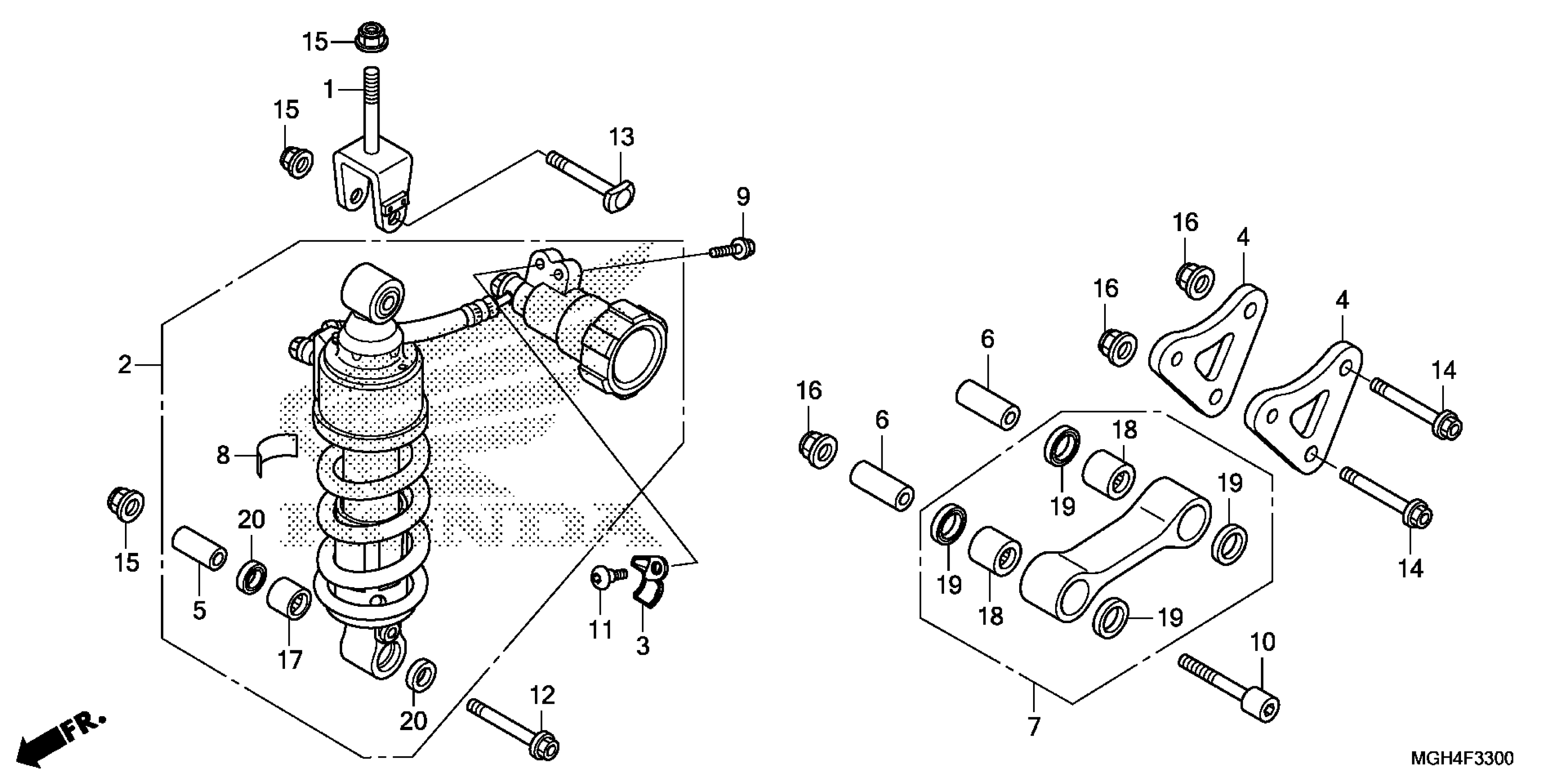

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 REAR SHOCK ABSORBER Diagram

BRACKET, RR. CUSHION

50230-MGE-000

$16.06

CUSHION ASSY., RR. (KYB)(COO)

52400-MGH-305

$1,312.42

GUARD, PRELOAD ADJUSTER

52430-MGH-640

$3.48

PLATE, CUSHION ARM

52461-MGH-640

$31.83

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$10.49

COLLAR, CUSHION ARM

52463-MBT-D20

$8.17

ROD SUB-ASSY., CUSHION CONNECTING

52475-MGH-640

$109.70

LABEL, RR. DAMPER

87516-MBL-610

$3.93

BOLT, FLANGE (6X16)

90102-KSV-J00

$1.93

BOLT, SOCKET (12X69)

90108-MGE-000

$9.96

BOLT, SPECIAL (6X15)

90114-MGE-D00

$1.87

BOLT, FLANGE (10X64)

90121-MGH-640

$5.33

BOLT, CUSHION (UPPER) (10X53.5)

90122-MGE-000

$6.52

BOLT, FLANGE (12X66)

90123-MGH-640

$7.20

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.42

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$18.00

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$16.63

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$8.27

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77
