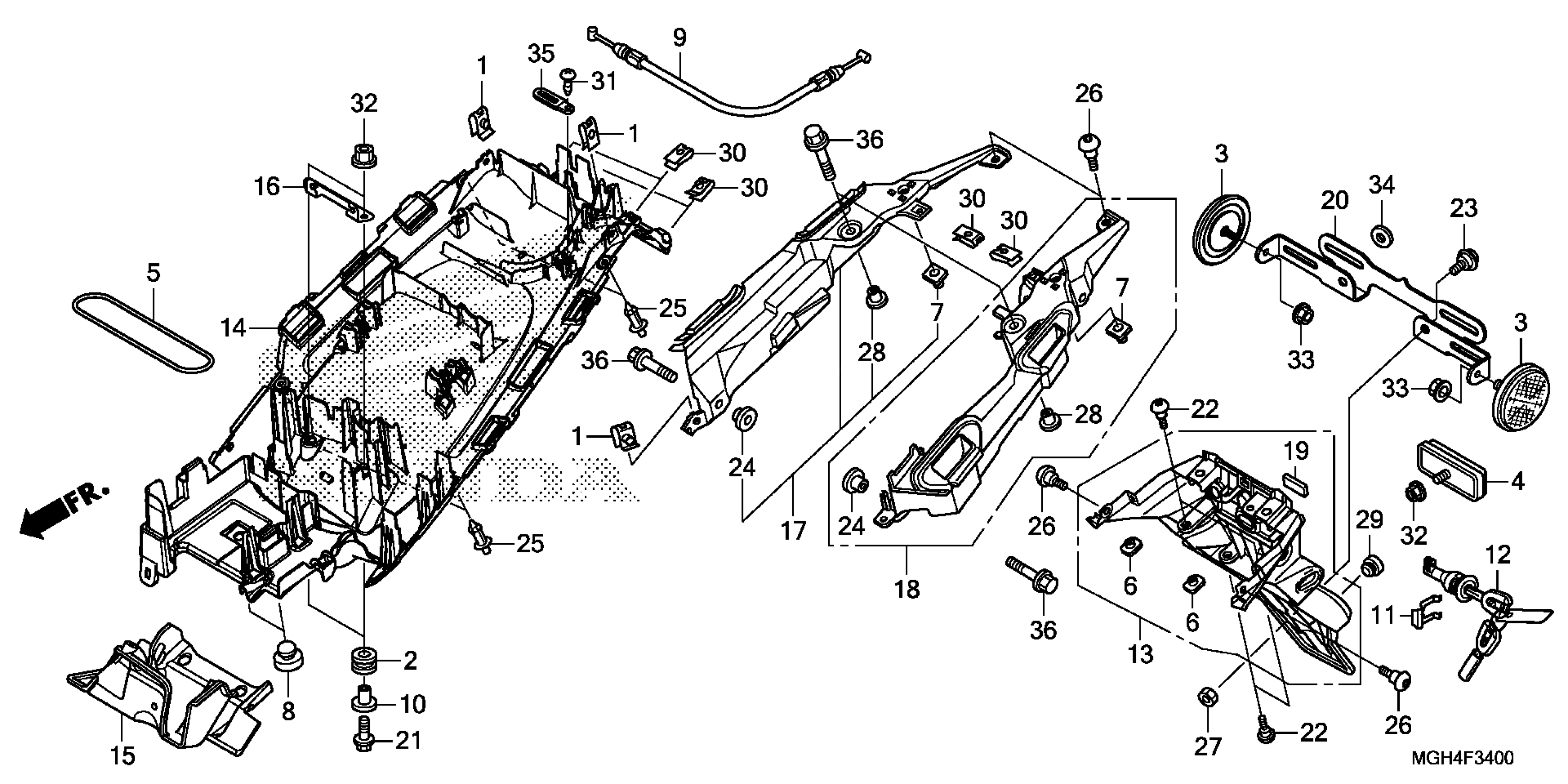

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 REAR FENDER Diagram

#

Description
Price

1

NUT, SETTING (6MM)

19014-KEA-003

$2.95

2

RUBBER, MOUNTING

19639-GBL-000

$0.99

3

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

4

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.92

5

BAND, U-LOCK

50290-MZ7-000

$18.30

6

NUT, SPECIAL (6MM)

61304-HB3-003

$2.69

7

NUT, RR. CARRIER (8MM)

61304-MGH-640

$5.97

8

RUBBER, SEAT MOUNTING

77110-KA3-730

$4.83

9

CABLE, SEAT LOCK

77156-MGH-641

$8.10

10

COLLAR

77219-MGH-640

$2.88

11

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.46

12

KEY, SEAT LOCK (WAVE)

77239-MGH-N01

$41.41

13

FENDER A, RR.

80100-MGH-A50

$53.01

14

FENDER B, RR.

80105-MGH-H20

$160.71

15

GUARD, RR. HEAT

80106-MGE-010

$39.26

16

STAY, BANK ANGLE SENSOR

80107-MGH-H20

$6.66

17

STAY, R. FENDER A

80115-MGH-640

$161.57

18

STAY, L. FENDER A

80116-MGH-640

$168.79

19

RUBBER, RR. FRAME

80129-MEG-000

$1.32

20

BRACKET, NUMBER PLATE

84700-MGH-A50

$14.06

21

BOLT, FLANGE (5X16)

90102-MGH-640

$2.31

22

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.68

23

BOLT, FLANGE (6MM)

90111-187-000

$7.39

24

COLLAR (8MM)

90111-MGH-640

$5.65

25

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

26

SCREW, PAN (6X14)

90117-MFL-D20

$1.90

27

NUT, U (6MM)

90301-782-000

$1.50

28

COLLAR (8MM)

90450-KG8-000

$4.56

29

RUBBER, SEPARATOR MOUNTING

90572-KV3-300

$3.74

30

NUT, CLIP (5MM)

90677-KAN-961

$3.89

31

SCREW, TAPPING (4X10)

93901-24280

$0.84

32

NUT, FLANGE (5MM)

94050-05070

$1.28

33

NUT, FLANGE (6MM)

94050-06070

$1.44

34

WASHER, PLAIN (6MM)

94103-06700

$0.66

35

CLIP, WIRE (2X40)

94591-24000

$2.00

36

BOLT, FLANGE (8X28)

95701-08028-00

$1.28
