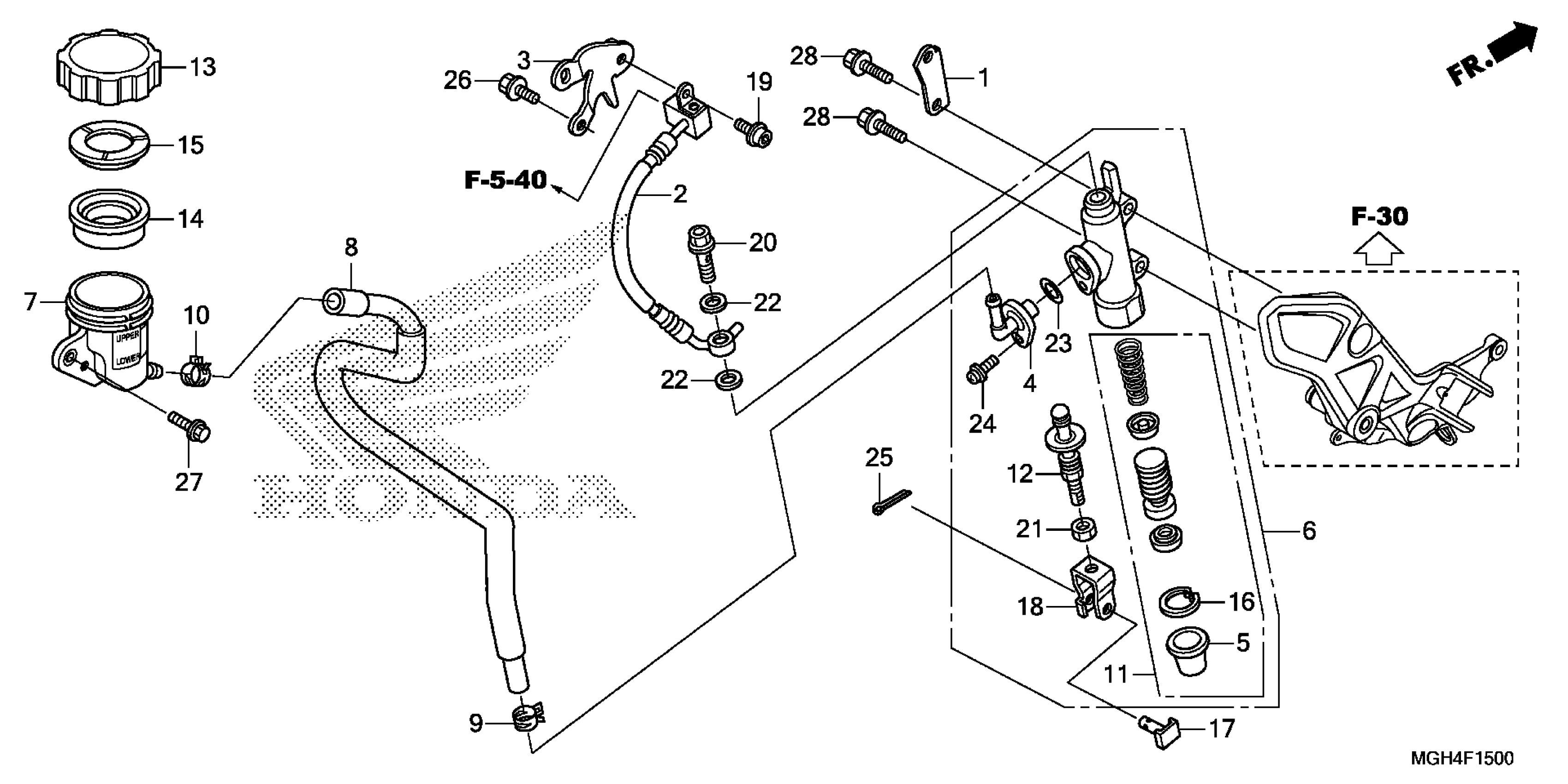

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

STAY, HARNESS CLIP

32157-MGH-640

$3.70

2

HOSE A, RR. BRAKE

43310-MGH-641

$42.43

3

STAY, RR. BRAKE HOSE

43325-MGE-000

$9.41

4

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.04

5

BOOT

43504-MB2-006

$9.01

6

MASTER CYLINDER SUB-ASSY., RR. (NISSIN) This part replaces 43510-MGH-305.

43510-MGH-641

$199.33

7

CUP, MASTER CYLINDER OIL

43511-MGE-016

$20.51

8

HOSE, RR. BRAKE MASTER CYLINDER

43512-MGH-641

$31.55

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$13.91

11

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-315

$54.74

12

ROD, PUSH

43530-MGH-641

$25.64

13

CAP, OIL CUP

45513-MEL-D21

$16.55

14

DIAPHRAGM

45520-300-000

$8.13

15

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

16

CIRCLIP

46182-MEL-D21

$1.77

17

PIN, BRAKE ROD

46503-MAL-000

$5.46

18

JOINT, BRAKE ROD

46504-MAL-601

$12.20

19

BOLT, FLANGE SOCKET (6X12)

90009-MF5-000

$3.35

20

BOLT, OIL (10X22)

90145-MS9-612

$6.82

21

NUT, HEX. (8MM)

90301-MEH-006

$1.39

22

WASHER, OIL BOLT

90545-300-000

$3.72

23

O-RING (14.8X2.4)

91212-422-006

Unavailable

24

SCREW-WASHER (4X12)

93893-04012-07

$1.22

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

25

PIN, SPLIT (2.0X12)

94201-20120

$0.94

26

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

27

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

28

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
