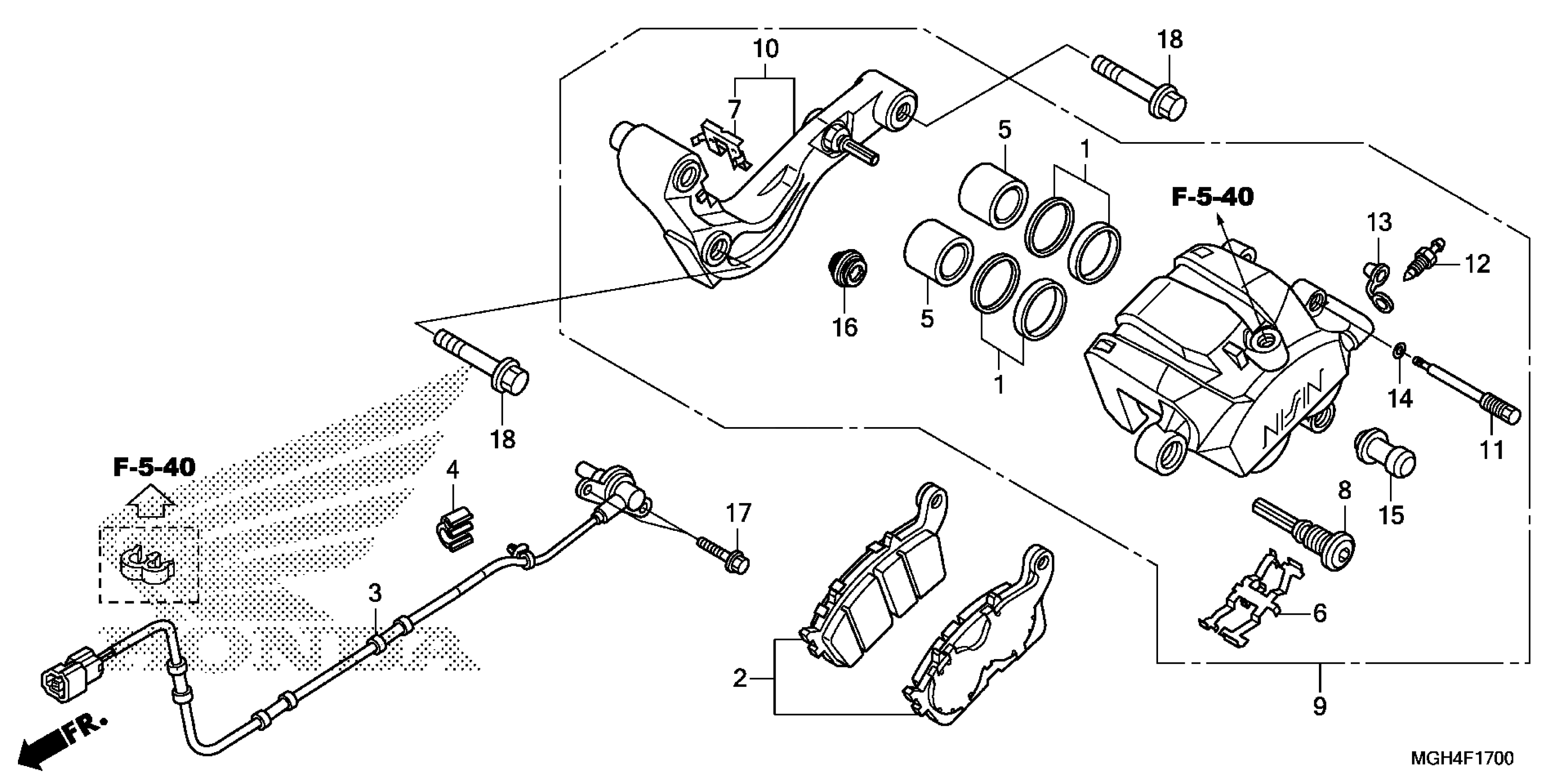

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, RR.

06435-MGE-D02

$78.11

SENSOR, RR. WHEEL SPEED

38510-MGH-H21

$178.87

CLAMP, ABS WIRE

38516-MJN-A11

$3.66

PISTON (27X31)

43107-MAJ-G41

$39.18

SPRING, PAD

43108-MGE-D01

$6.59

RETAINER

43112-MGE-006

$7.90

BOLT, PIN

43131-KW3-006

$10.29

CALIPER SUB-ASSY., RR. (NISSIN) (MSDS)

43150-MGH-641

$381.33

BRACKET SUB-ASSY., RR.

43190-MGH-641

$166.61

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

BOLT, FLANGE (10X45)

90132-MGE-000

$4.85
