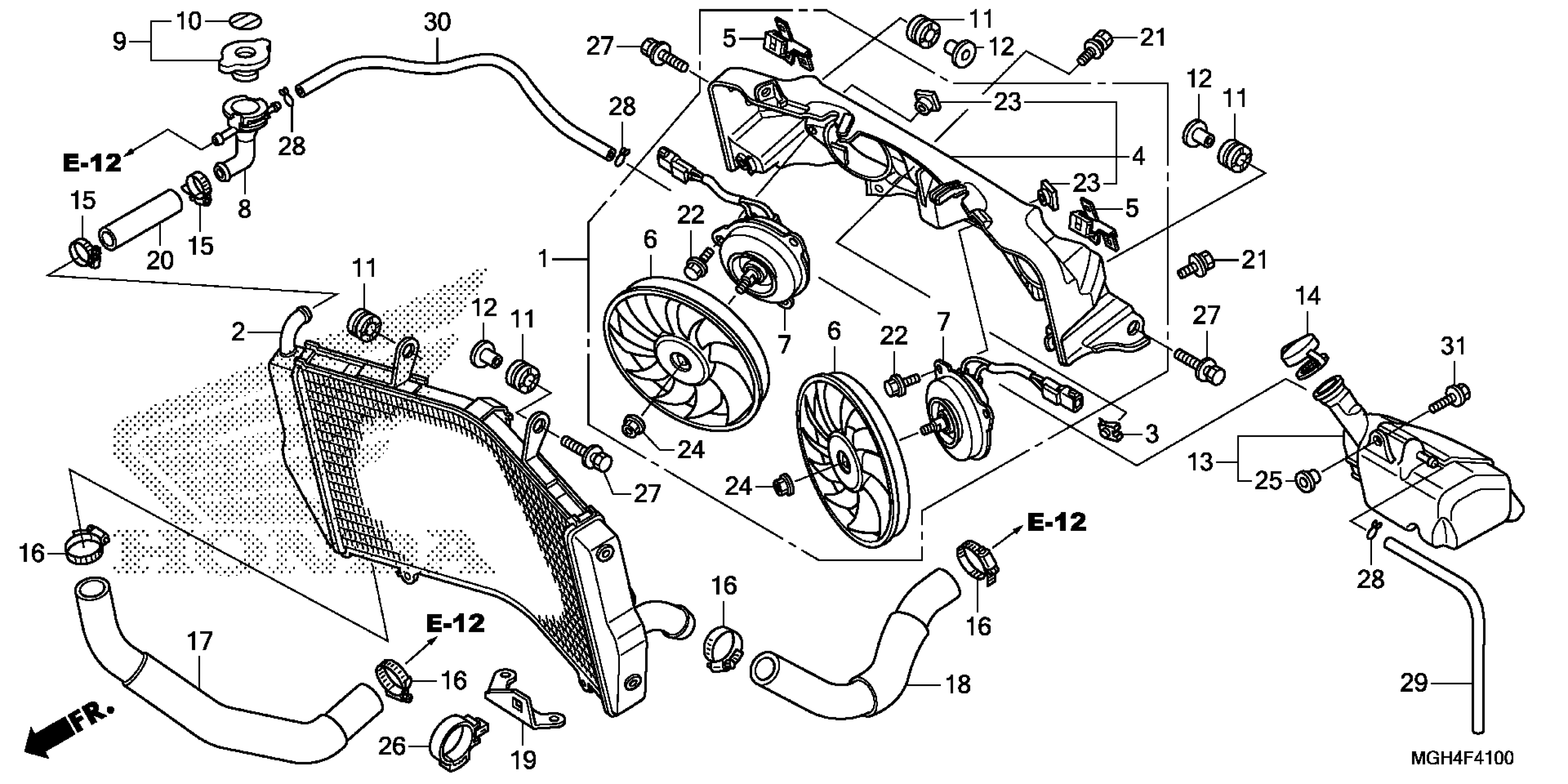

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 RADIATOR Diagram

#

Description
Price

1

SHROUD ASSY.

19005-MGH-641

$716.59

2

RADIATOR

19010-MGH-641

$1,707.68

3

NUT, SETTING (6MM)

19014-KEA-003

$2.95

4

SHROUD

19015-MGE-003

$146.88

5

STAY, CONNECTOR

19016-MGH-640

$8.13

6

FAN, COOLING

19020-MFG-D01

$37.94

7

MOTOR ASSY., FAN

19030-MGE-003

$269.97

8

NECK, FILLER

19035-MFL-003

$17.91

9

CAP, RADIATOR (TOYO)

19037-KVB-902

$20.93

10

LABEL, RADIATOR CAP (TOYO)

19046-KVB-902

$4.37

11

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

12

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

13

TANK, RADIATOR RESERVE (COO) This part replaces 19101-MGE-000.

19101-MGE-305

$44.90

13

TANK, RADIATOR RESERVE (COO)

19101-MGE-305

$44.90

14

CAP, RESERVE TANK

19109-KPC-640

$4.59

15

CLAMP A, WATER HOSE

19505-KS6-700

Unavailable

16

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.46

17

HOSE A1, RADIATOR

19510-MGH-640

$49.00

18

HOSE B, RADIATOR

19512-MGE-000

$39.07

19

STAY, WATER HOSE

19512-MGH-640

$8.01

20

HOSE, FILLER NECK

19514-MGH-640

$12.09

21

BOLT-WASHER (6X16)

90120-KCR-003

$4.19

22

BOLT, FLANGE (5X10)

90196-MBB-003

$2.46

23

NUT, SPECIAL (5MM)

90303-MBB-003

$3.47

24

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

25

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.79

26

CLAMP, WATER HOSE

90695-MGH-641

$5.26

27

BOLT-WASHER (6X25)

93404-06025-00

$1.01

28

CLIP, TUBE (B10)

95002-02100

$1.75

29

BULK HOSE, VACUUM (5.5X8000) (5.3X670)

95005-55008-10M

Unavailable

30

BULK HOSE, VACUUM (5.5X3000) (5.5X950)

95005-55003-20M

Unavailable

31

BOLT, FLANGE (6X18)

96300-06018-00

Unavailable
