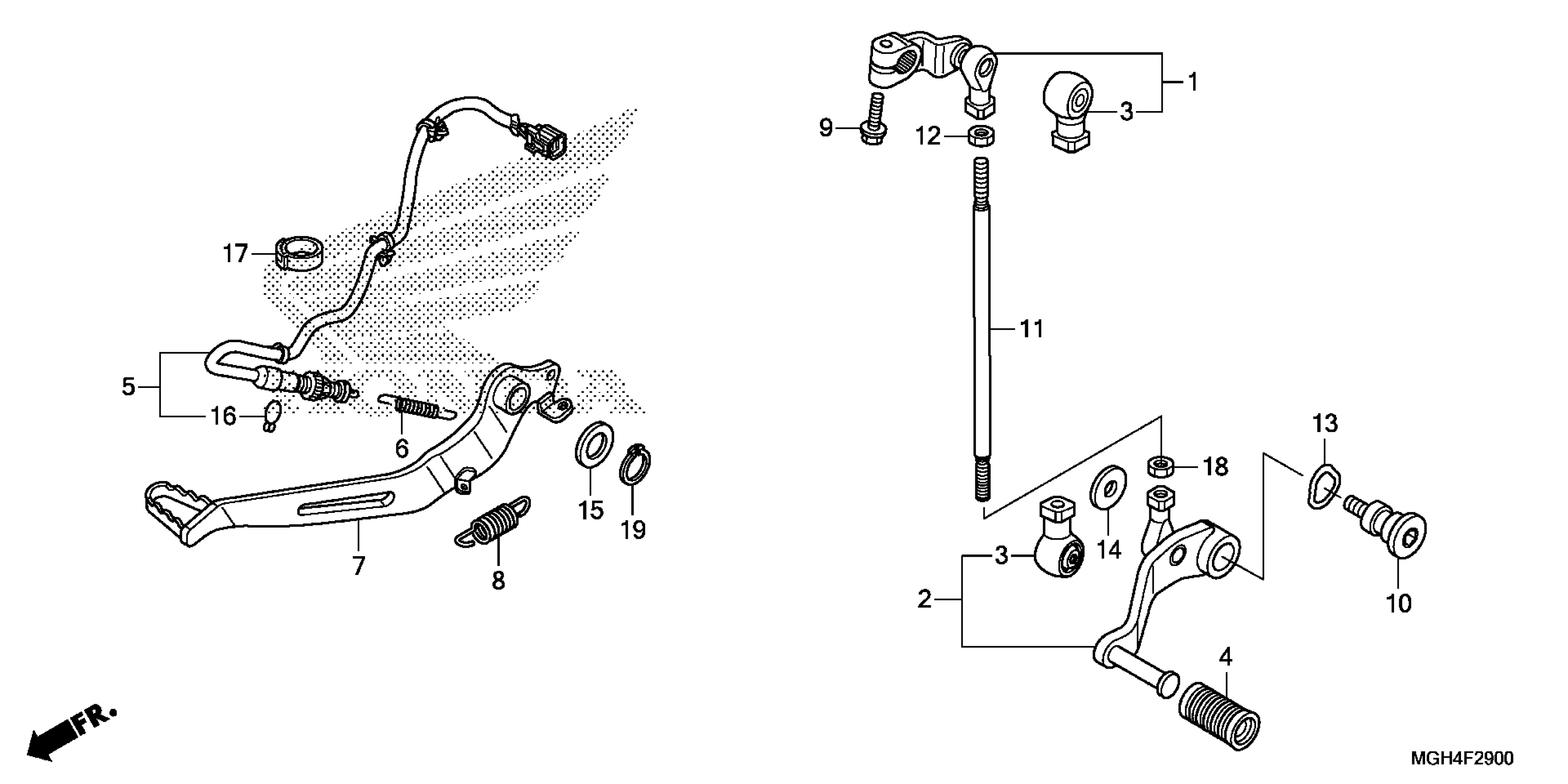

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 PEDAL Diagram

ARM, GEARSHIFT

24710-MGH-640

$68.79

PEDAL, GEARSHIFT

24720-MGH-640

$137.96

COVER, DUST

24724-MBW-D21

$6.66

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

SWITCH ASSY., RR. STOP

35350-MGH-642

$31.47

SPRING, STOP SWITCH

35357-MGH-641

$5.60

PEDAL, RR. BRAKE

46510-MGH-640

$131.10

SPRING, BRAKE PEDAL

46514-GCF-670

$4.63

BOLT, FLANGE (6X20)

90010-ML0-720

$2.80

BOLT, CHANGE PIVOT

90113-MCF-000

$7.60

BOLT, TIE ROD

90165-MGH-640

$9.04

NUT B, TIE ROD (LEFT HAND THREAD)

90302-MGE-000

$2.29

WASHER, CHANGE PEDAL WAVE

90505-MBW-000

$3.84

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.28

WASHER (15.2X25)

90557-230-000

$2.21

CLIP, SWITCH COVER

90651-MGE-641

$1.66

CLIP, WIRE HARNESS

90683-KJ2-003

$3.62

NUT, HEX. (6MM)

94002-06040-0S

$0.66

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63
