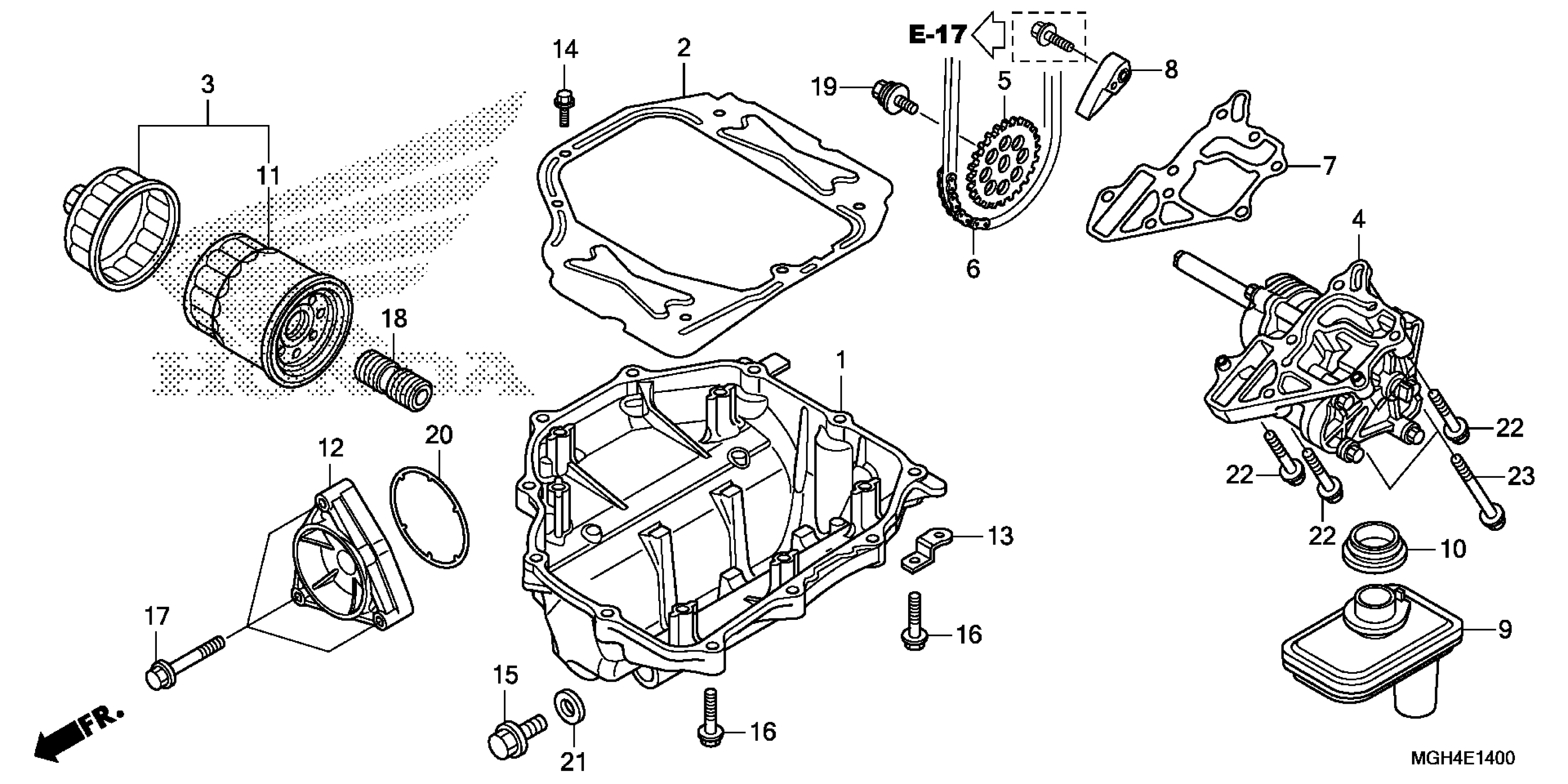

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 OIL PUMP (1) Diagram

#

Description
Price

1

PAN, OIL

11210-MGH-640

$237.67

2

PLATE, BAFFLE

11211-MGE-D00

$9.21

3

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

4

PUMP ASSY., OIL

15100-MGE-000

$487.07

5

SPROCKET, OIL PUMP DRIVEN (22T)

15134-MCA-000

$39.87

6

CHAIN, OIL PUMP DRIVE (DID25H-72L)

15141-MFJ-D01

$21.56

7

GASKET, OIL PUMP

15145-MGE-003

$10.93

8

GUIDE A, OIL PUMP CHAIN

15146-MGE-D00

$17.38

9

STRAINER, OIL

15150-MGH-640

$41.33

10

GASKET, OIL STRAINER

15154-MAT-000

$6.16

11

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

12

COVER, FR.

15750-MGH-640

$35.43

13

STAY, CLIP

32160-MGE-D01

$3.57

14

BOLT, FLANGE (5X14)

90012-896-750

$1.49

15

BOLT, PLUG DRAIN (14MM)

90014-MGE-000

$3.49

16

BOLT, FLANGE (6X28)

90016-GHB-680

$2.28

17

BOLT, FLANGE (6X40)

90016-GHB-710

$2.15

18

BOSS, OIL FILTER

90019-MB0-000

$8.61

19

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

20

O-RING, OIL COOLER

91354-MCT-003

$7.93

21

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

22

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

23

BOLT, FLANGE (6X55)

95701-06055-00

$2.16
