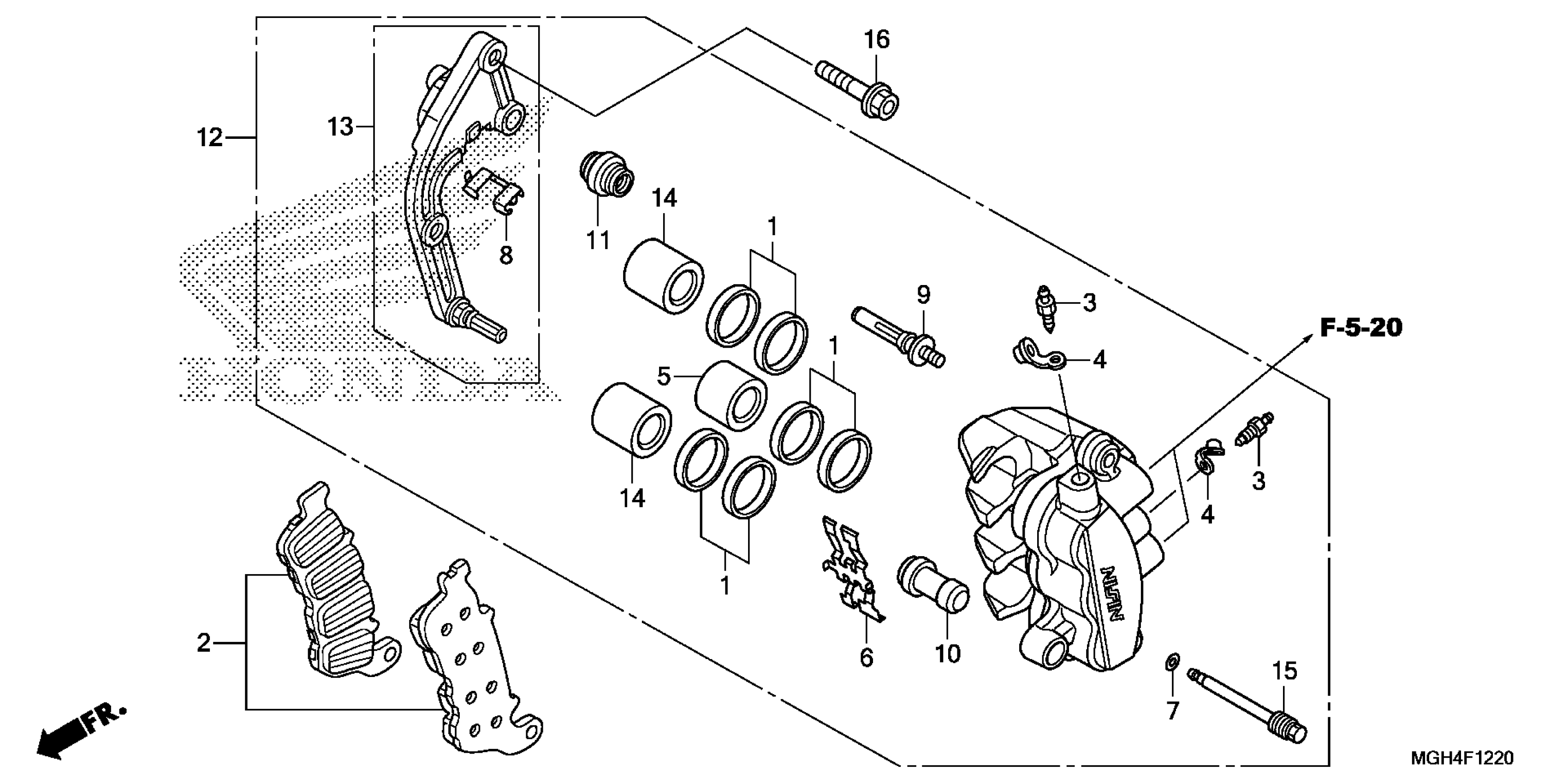

Honda VFR1200XAC (17) VFR1200X, JPN, VIN# JH2SC760-HK100001 LEFT FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-GE2-405

$10.24

PAD SET, L. FR.

06456-MCW-H03

$54.04

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

PISTON A (25)

45107-MGH-641

$36.49

SPRING, PAD

45108-MBT-D52

$7.54

RING, STOPPER

45111-MAJ-G41

$3.54

RETAINER, BRACKET

45112-MZ2-006

$7.93

BOLT A, PIN

45131-ML7-921

$13.86

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

CALIPER SUB-ASSY. This part replaces 45150-MGH-641.

45150-MGH-642

$693.06

BRACKET SUB-ASSY., L. FR.

45190-KSV-J01

$86.25

PISTON,25 B This part replaces 45207-MFN-D12.

45207-MFN-D13

$30.16

PIN, HANGER

45215-MBT-D51

$6.29

BOLT, FLANGE (8X32)

90131-MGC-000

$3.16
